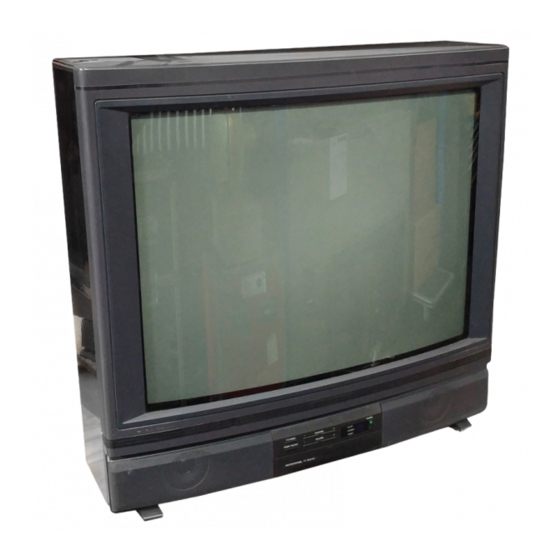

Sony TRINITRON KV-27TS20 Service Manual

SERVICE MANUAL
Note: The service manual for
been issued separately.
American TV standards
Television system
Channel coverage VHF: 2-13
UHF: 14-69
Cable TV: 1-125
Picture tube Microblack Trinitron tube
27-inch picture measured diagonally
diagonally
VIDEO INPUT (phono jacks)
Video: 1 Vp-p, 750hms
Audio: 500 rnVrms
Output AUDIO OUTPUT (VARIABLE) (phono
jacks)
More than 408 mVrms at the
maximum volume setting (variable)
(100% modulation)
Impedance: 10 kilohms
Power requirements 120 V AC, 60 Hz
Power consumption
5W (in standby condition)
Dimensions
Approx. 672 x 650 x 524.5 m m (w/h/d)
49Kg
Weight
Sound output
3W x 3W (music power)
RM-757 has
unbalanced, sync negative
(100% modulation)
Impedance: 47 kilohms
Canadian Model
MODELS OF THE SAME SERIES
KV-27TR10
Accessories supplied
Remote Commander RM-757
with 2 size AA batteries
Antenna connector
Optional accessories
UIV mixer E A C S
Connecting cord VMC-810Sl820S
Design and specifications subject to change without
notice.
US Model
Chassis No. SCC-A05P-A
Chassis No. SCC-A50G-A
.
