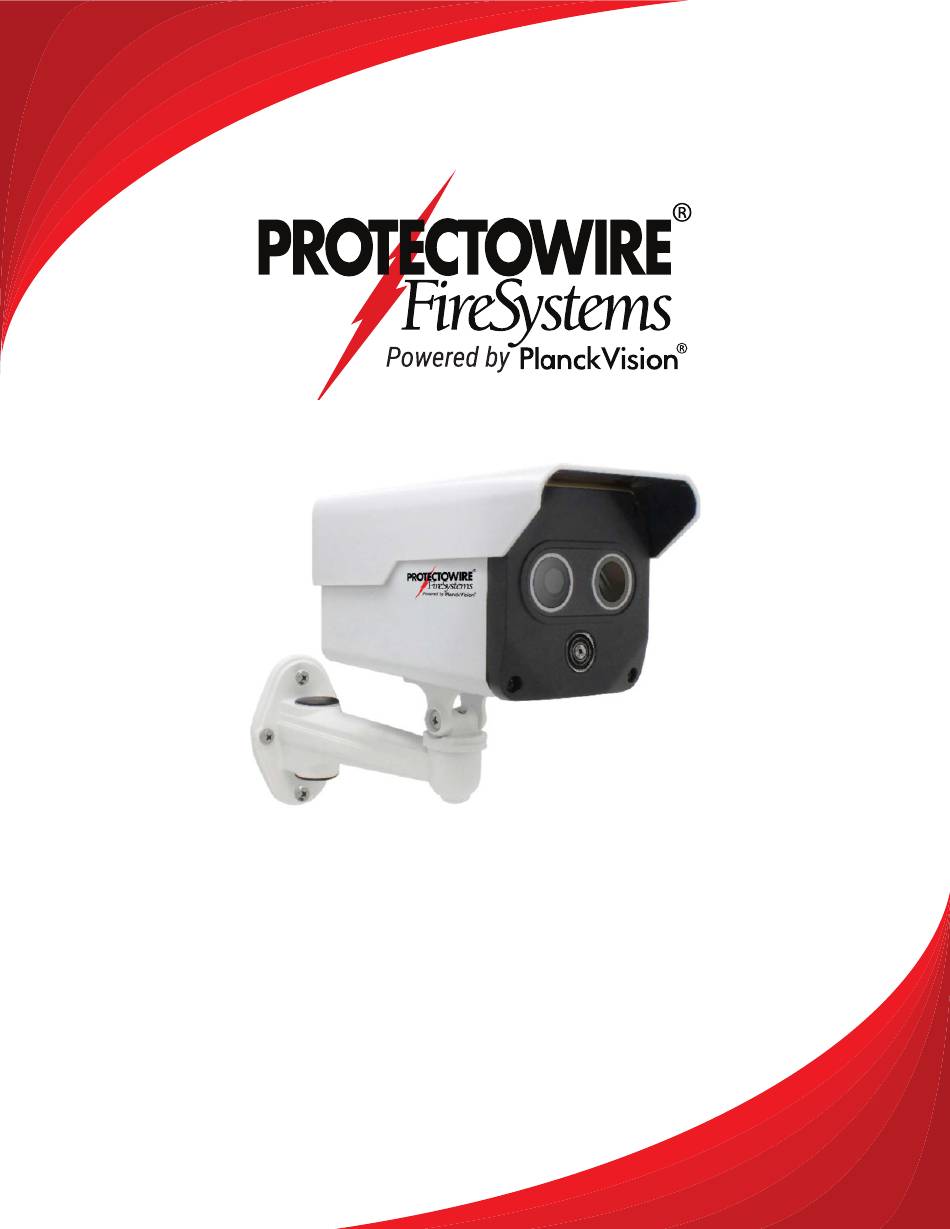

  • Page 1 PWTC100 Dual Vision Thermal Camera Quick Start Manual MAN-2012-1223...
  • Page 2 PWTC100 Dual Vision Thermal Camera MAN-2012 Published: 8/8/2023 Last modified 12/5/2023 © 2023 The Protectowire Company, Inc. 60 Washington Street Pembroke, MA 02359 781-826-3878 • Fax: 781-826-2045 sales@protectowire.com www.Protectowire.com PWTC100 Dual Vision Thermal Camera Quick Start Manual...

  • Page 3: Table Of Contents

    PWTC100 Dual Vision Thermal Camera Table of Contents 1 Overview........................2 PWTC100 Camera Specifications..............3 What’s in the Box....................4 Physical interface....................5 Initial Setup....................... 5.1 User password modification............... 5.2 Device IP modification................6 Communication Protocols................. 6.1 RTSP instructions................... 6.2 ONVIF instructions................. 7 Default settings......................

  • Page 4: Overview

    PWTC100 Dual Vision Thermal Camera 1 Overview Protectowire’s dual-vision thermal camera can simultaneously record visible and thermal images while collecting characteristic temperature information from the scene. It can be used in indoor and outdoor environments for asset monitoring, early warning heat detection, intelligent security, and other applications. Through an IP network, the thermal camera transmits collected data to PC clients or web browsers (Chrome) for real time surveillance and alarm condition monitoring.

  • Page 5: What's In The Box

    PWTC100 Dual Vision Thermal Camera 3 What’s in the Box Table 3-1: Packing list Serial Number Name Quantity Camera Power Adapter Warranty Card Certificate of conformity 4 Physical interface The physical interface of the camera is shown in Figure 4-1. The camera is provided with a full function pigtail and the IO interfaces listed in Table 4-1.

  • Page 6: Initial Setup

    PWTC100 Dual Vision Thermal Camera 5 Initial Setup • Step 1: After connecting camera power and the network ports between the camera and the computer, please make sure that the camera IP address (192.168.1.19 by default) and the PC’s IP address are in the same network segment.

  • Page 7: User Password Modification

    PWTC100 Dual Vision Thermal Camera 5.1 User password modification To change the default user names and passwords, select the Setting tab, Basic tab and User Management tab, as shown in Figure 5-3. Click “OK” to save any changes. Figure 5-3: User/Password management interface 5.2 Device IP modification To change the camera IP address, select the Setting tab, Network tab and IP Address &...

  • Page 8: Communication Protocols

    PWTC100 Dual Vision Thermal Camera 6 Communication Protocols The PWTC camera supports RTSP, RTP, TCP, UDP, ONVIF and other general protocols, such as MODBUS data transfer. RTSP and ONVIF protocols are commonly used for cameras connected to Network Video Recorders (NVR). Select illustrations for testing these protocols are provided in the following sections. 6.1 RTSP instructions The RTSP protocol can be tested with the VLC media player.

  • Page 9: Onvif Instructions

    PWTC100 Dual Vision Thermal Camera 6.2 ONVIF instructions The open source ONVIF Device Manager tool (version: odm-v2.2.250) can be used to test the ONVIF protocol. The following steps are taken for this test: 1. Install and run the Onvif device manager (odm-v2.2.250) 2.

  • Page 10: Default Settings

    PWTC100 Dual Vision Thermal Camera 7 Default Settings Table 7-1: Network settings and port numbers Parameter Defaults (PWTC20F, PWTC100F, PWTC100C) IP address 192.168.1.19 Subnet mask 255.255.255.0 Gateway 192.168.1.1 Transmission start port 3000 Data control port 3001 Remote playback port 3002 Web port Multicast address 235.1.1.1...
  • Page 11 PWTC100 Dual Vision Thermal Camera 9 Camera Installation Pre-installation instructions 1. Before installation, please check whether the equipment and accessories in the packing box are complete and intact against the packing list. 2. The installation wall should be able to bear at least 3 times the total weight of the bracket and the camera. 3.
  • Page 12 PWTC100 Dual Vision Thermal Camera Notices © The Protectowire Company, Inc. No part of this manual may be reproduced in any form or by any means (including electronic storage and retrieval or translation into a foreign language) without prior agreement and written consent from The Protectowire Company, Inc. as governed by US and international copyright laws.
