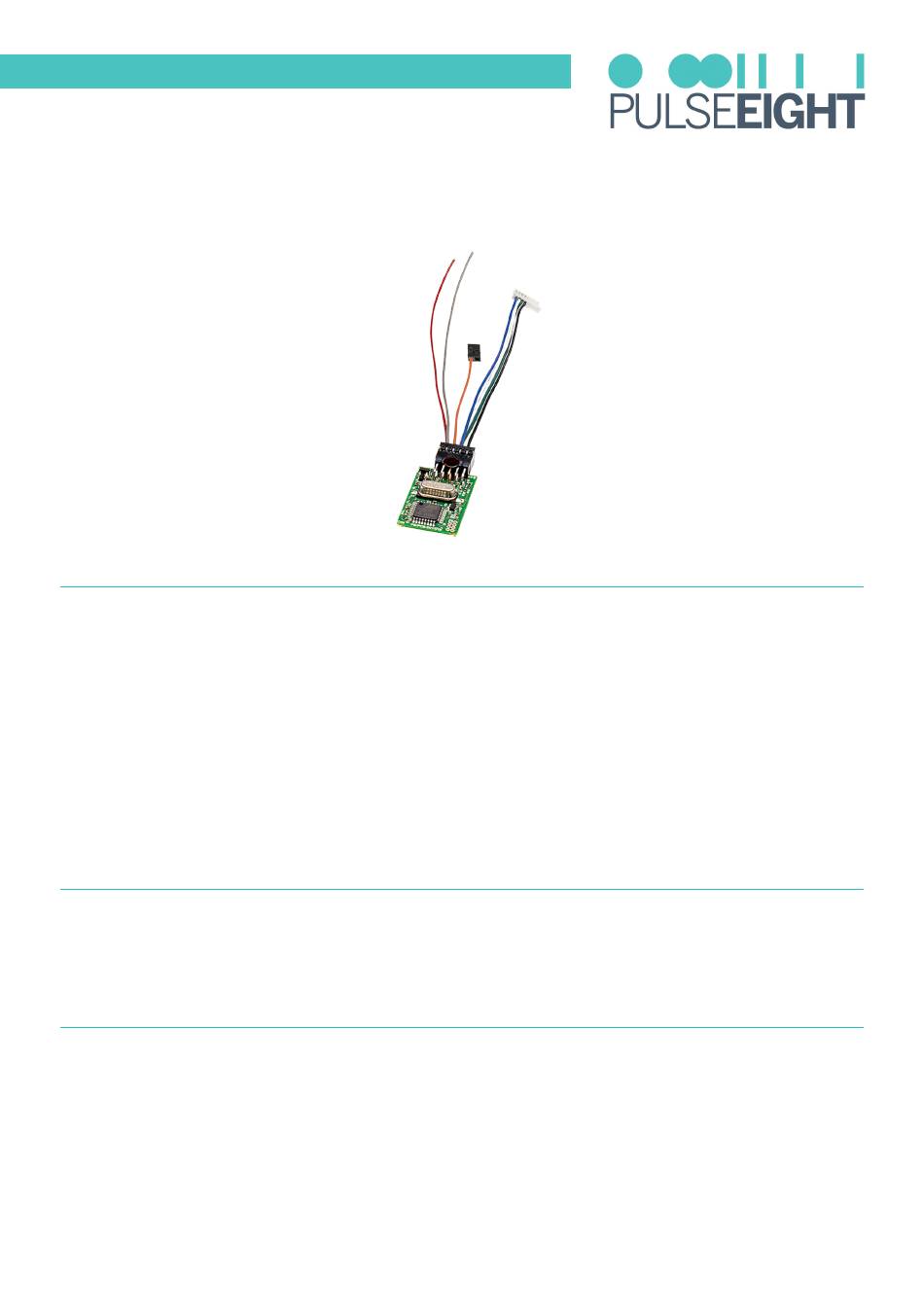

QUICK REFERENCE GUIDE - INTEL NUC HDMI-CEC ADAPTER
V 2.1
INTEL NUC
HDMI-CEC ADAPTER
INTRODUCTION
Integrate our ever popular CEC technology inside your NUC, using the existing stock enclosure!
Our latest generation of HDMI-CEC communication hardware has been specifically designed to fit inside the
standard NUC enclosure between the WiFi mPCI Board and the Memory modules.
This adapter will allow your TV to turn the NUC on from S5 (cold boot) and S3 (suspend), additionally turning the
NUC on can wake the TV from its standby.
Remote control signals from your TV remote are sent via the HDMI cable into the NUC allowing you to control any
application on the desktop using the Up/Down/Left/Right keys on your TV remote control.
Deep integration with Kodi provides the richest experience possible. This adapter also supports EventGhost and
Windows Media Centre.
FEATURES
• Custom wiring loom allows us to support the various different pin-out combinations of the NUC
• Compatible with most models of the Intel NUC*
• Compatible with Windows, Linux (including OpenELEC) and Mac OS X.
INSIDE THE BOX (KIT)
• 1 x Intel NUC HDMI-CEC Adapter
• 1 x Double Sided Foam Sticky Pad
• 1 x Internal Cable Loom
• 1 x Installation Guide
1
Advertisement
Table of Contents
Related Manuals for PULSEEIGHT P8-NUCCECv1
Summary of Contents for PULSEEIGHT P8-NUCCECv1
- Page 1 QUICK REFERENCE GUIDE - INTEL NUC HDMI-CEC ADAPTER V 2.1 INTEL NUC HDMI-CEC ADAPTER INTRODUCTION Integrate our ever popular CEC technology inside your NUC, using the existing stock enclosure! Our latest generation of HDMI-CEC communication hardware has been specifically designed to fit inside the standard NUC enclosure between the WiFi mPCI Board and the Memory modules.
- Page 2 QUICK REFERENCE GUIDE - INTEL NUC HDMI-CEC ADAPTER SPECIFICATIONS SKU: P8-NUCCECv1 Operating Temp Range: 0 to +35°C (32 to +95°F) Operating Humidity Range: 5 to 90% RH (no condensation) Certification: CE, FCC, RoHS IMPORTANT: Unfortunately, we have identified a number of NUCs that we are unable to support, these are listed below DN2820 family •...
- Page 3 QUICK REFERENCE GUIDE - INTEL NUC HDMI-CEC ADAPTER PANEL DESCRIPTION 5th Gen Broadwell NUC Dual Port USB 2.0 Header Sticky Pad Placement (suggestion) Front Panel Header Custom Solution Header INTEL NUC GENERATION 5th Gen (Broadwell) NUC CEC Cable Adapter 4th Gen (Haswell) NUC CEC Cable Adapter 6th and 7th Gen (Skylake, Apollo &...
- Page 4 QUICK REFERENCE GUIDE - INTEL NUC HDMI-CEC ADAPTER INSTALLATION 5th Gen Broadwell NUC 1. Identify the pin of the connector. Wire Colour Function Polarity Key Black Blue 5V Detect Green USB D+ Orange Pwr Button White USB D- Grey 5V Standby 2.
- Page 5 QUICK REFERENCE GUIDE - INTEL NUC HDMI-CEC ADAPTER 6th Gen Apollo Lake NUC 1. Connector Locations Using the pictorial guides, attach the wiring loom as shown. 2. PCB Final Location After attaching the wiring loom, you can store the connected PCB as shown...
- Page 6 QUICK REFERENCE GUIDE - INTEL NUC HDMI-CEC ADAPTER 6th Gen Skylake NUC 1. Connect CEC Connector to Underside of Board The CEC header is located on the underside of the motherboard, you will need to remove it from the case to connect it.
- Page 7 QUICK REFERENCE GUIDE - INTEL NUC HDMI-CEC ADAPTER 3. Mount PCB In This Location (Recommended) It’s recommended to attach the supplied PCB in this location, although there may be a better location. MINIS FORUM TL-50 The Intel NUC CEC Adapter is compatible with the Minis Forum TL-50. Installation is as follow: A CEC client needs to be installed to send custom CEC commands from PC to TV through a CEC adapter.
- Page 8 QUICK REFERENCE GUIDE - INTEL NUC HDMI-CEC ADAPTER TROUBLESHOOTING Should you encounter installation difficulties or issues with device communication, the following checklist of common issues and causes should help resolve your issues. If you still continue to experience issues, please contact your local representative for further assistance.
