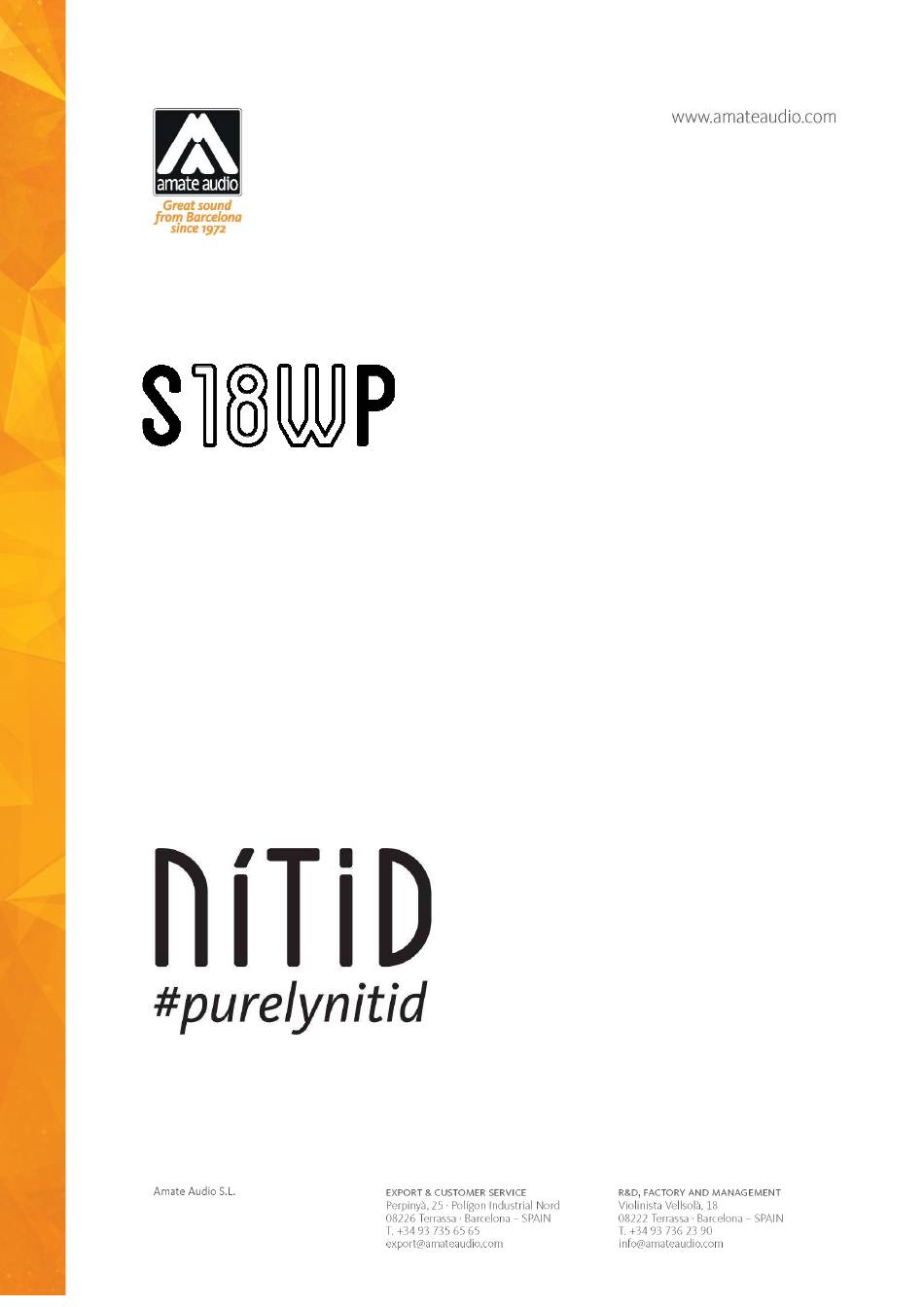

- Page 1 User’s manual April 2023...
- Page 2 NITID S18WP Apr 2023 Safety Instructions 1. All safety instructions must be read before using this device. 2. Keep and follow these instructions 3. Heed all warnings 4. The exclamation mark in the triangle indicates internal components which if replaced can affect safety.
- Page 3 Apr 2023 1. INTRODUCTION 1.1. General Amate Audio would like to thank you for your confidence in our NÍTID Series. We suggest you to carefully read the following instructions in order to obtain the best results in performance. 1.2. Features and presentation S18WP •...
- Page 4 4200W 2400W Impedance 8Ω One unit of HD4000 (in bridge mode) can feed up to two units of S18WP. Fig. 2. S18WP configuration 2.3. Recommended presets for S18WP The S18WP can be used with an external LMS206 /LMS608 (digital signal processor).
-
Page 5: Mounting And Placement
100 Hz low pass filter CARD80/90/100 Cardioid polar pattern, with processing, delay and inverse polarity Fig. 3. Recommended PRESETS for S18WP 3. MOUNTING AND PLACEMENT For a proper installation of the acoustic cabinet systems, it is strongly recommended to carefully read the following advices. - Page 6 NITID S18WP Apr 2023 3.1. S18WP with full-range systems The S18WP incorporates a M20 base-plate on its upper side for the attachment of a standard 35mm diameter bar. Fig. 4. S18WP socket 3.2. S18WP flying Flying a NÍTID system is easy, fast and secure. To perform any operations related to flying the systems, read the present document, and act on the warnings and advice given.
- Page 7 NITID S18WP Apr 2023 4. CARDIOID SUBWOOFERS The S18WP enables the combination of three or multiple of three subwoofer cabinets in an array to provide exceptional directivity at low frequencies. To get the correct set-up parameters, please contact export@amateaudio.com. High directivity...
- Page 8 NITID S18WP Apr 2023 Fig. 9. Cardioid configuration for S18WP (horizontal line) The cardioid preset must only be applied to the rear facing subwoofers (BACK STAGE). The front facing subwoofers (FRONT AUDIENCE) must use the corresponding front-facing preset, as shown in the table below:...
-
Page 9: Technical Features
NITID S18WP Apr 2023 5. TECHNICAL FEATURES S18WP Impedance 8 Ω Nominal Power R.m.s 1200 W Program 2400 W Connectors 2 x Speakon NL4MP input & link Audio Performance Frequency response 33 Hz – 140 Hz [LPF100] (-10 dB usable bandwidth) - Page 10 T. +34 93 735 65 65 – F. +34 93 735 60 48 – info@amateaudio.com R&D and FACTORY: Violinista Vellsolà, 18 · 08222 Terrassa T. +34 93 736 23 90 – F. +34 93 786 47 00 Barcelona – SPAIN www.amateaudio.com © Copyright 2023 by Amate Audio S.L.
