SSV Works WP3-DF04 Manual

SSVWORKS, 201 N. Rice Ave Unit A, Oxnard, CA 93030
www.SSVworks.com
I
Phone: 818-991-1778
I
Fax: 866-293-6751
WARRANTY INFORMATION:
All SSV Works enclosures are covered by a limited lifetime warranty against defects in
material or workmanship. All SSV Works Electronics are covered by a limited 1 year warranty
against defects in material or workmanship. All SSV Works Speakers are covered by a
limited 1 year warranty against defects in material or workmanship. Labor for replacement of
defective components is not covered. Contact SSV Works for further warranty information.

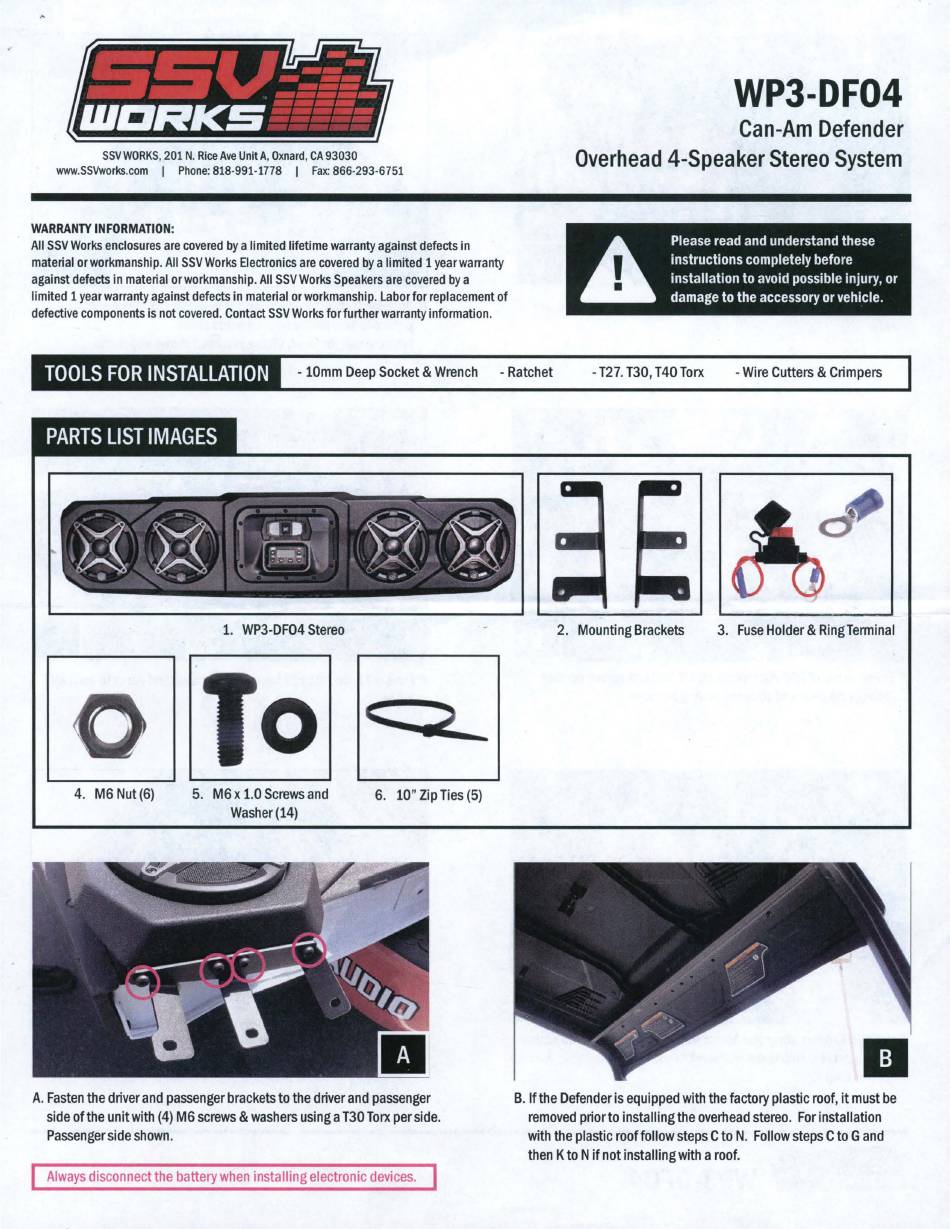

WP3-DF04
Can-Am Defender
Overhead 4-Speaker Stereo System
A
Please read and understand these
instructions completely before
installation to avoid possible injury, or
damage to the accessory or vehicle.
TOOLS FOR INSTALLATION - 10mm Deep Socket & Wrench - Ratchet
- T27. T30, T40 Tone - Wire Cutters & Crimpers
PARTS LIST IMAGES
4. MG Nut(6)

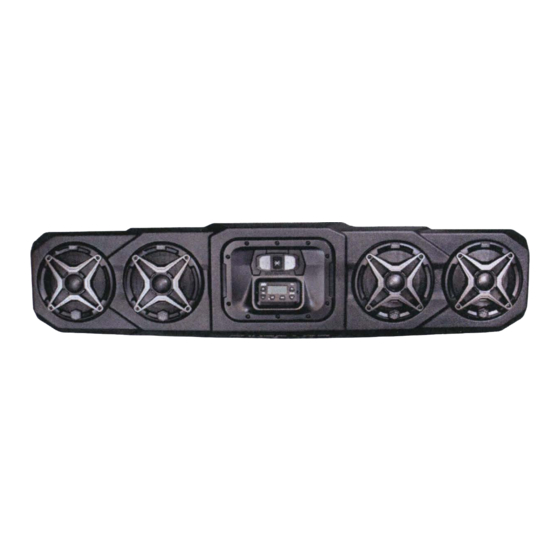

1. WP3-DF04 Stereo
To
5. MG x 1.0 Screws and
Washer(14)
a?
6. 10" Zip Ties (5)
A. Fasten the driver and passenger brackets to the driver and passenger
side of the unit with (4) MG screws & washers using a T30 Tone per side.
Passenger side shown.
Always disconnect the battery when installing electronic devices.
2. Mounting Brackets 3. Fuse Holder
&
Ring Terminal
B. If the Defender is equipped with the factory plastic roof, it must be
removed prior to installing the overhead stereo. For installation
with the plastic roof follow steps C to N. Follow steps C to G and
then K to N if not installing with a roof.
