Summary of Contents for Ecoplus SWBH-26.0H-A-S
- Page 1 SWBH-26.0H-A-S SWBH-13.0H-B-S SWBH-13.0H-B...
-
Page 3: Table Of Contents
Ⅰ .To our customers(before installation) ----------------------------------------------1 Ⅱ .Product Introduction ----------------------------------------------------------------------2 Ⅲ .Work principle -----------------------------------------------------------------------------3 Ⅳ .Performance Data --------------------------------------------------------------------4 Ⅴ .Dimension -------------------------------------------------------------------------------5 Ⅵ .Operation introduction------------------------------------------------------6 Ⅶ . Electric Circuit Wiring Diagram ------------------------------------------------------18 Ⅷ. Installation instructions -------------------------------------------------------------------21 Ⅸ .Maintenance------ -----------------------------------------------------------------------24... -
Page 4: Ⅰ .To Our Customers(Before Installation)
Ⅰ.To our customers Water heater Dear Sir: In order to use this machine safely, please read this INTRUCTION MANUAL carefully before using and installation. Heat pump water heater is a professional machine, it may cause damage or hazard when wrong installed, it should be installed by a competent person in accordance with the relevant standards for the country of use. -
Page 5: Ⅱ .Product Introduction
Ⅱ.Product Introducing Water heater Product Introducing Safe and Reliable Unlike traditional electric water heater, heat pump water heater do not directly generate heat by electricity , it use less electricity to move heat from one place to another , electric circuit is separated from water circuit ,which is also not easy for electric shock, inflammable , explosion and poisoning ! Safer and more reliable! Highly efficient &... -
Page 6: Ⅲ.work Principle
Ⅲ.Work principle Water heater Work principle The low temperature and low pressure refrigerant gas come from the evaporate to the compressor, After the compressor compress it , the refrigerant gas became high temperature and high pressure. Then the gas come into the water condensation into liquid, emit a lot of condensation heat, condensing heat absorbed by water, making the water temperature increased, and then the liquid refrigerant come through the expansion valve, with a fan , the evaporate heat in the air, after all evaporation , the low pressure compressor refrigerant gas inhalation in the compressor, after... -
Page 7: Ⅳ.performance Data
Water heater Ⅳ.Performance Data Performance Data SWBH-13.0H-B Model SWBH-26.0H-A-S SWBH-13.0H-B-S Rated heating capacity(w) 19000 9600 9700 A7W35 Power supply(V/Ph/Hz) 380/3/50 380/3/50 220/1/50 Heating input power(kw) 2.46 Running current heating(A) 10.5*3 5.2*3 12.7 A35W12 Rated cooling capacity(w) 16.4 Cooling input power(kw) Running current cooling(A) 12.0*3... -
Page 8: Ⅴ.dimension

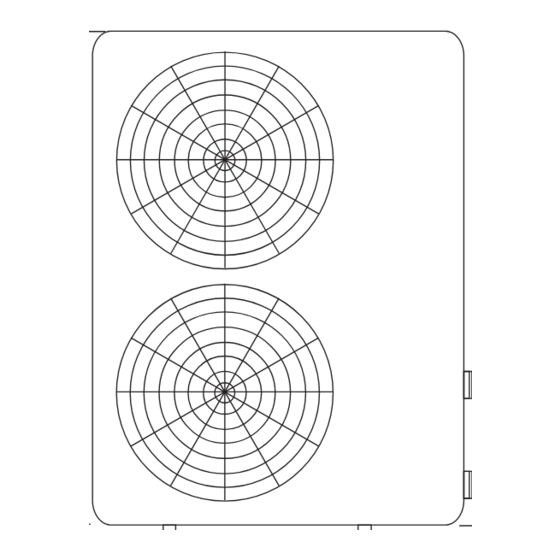

Ⅴ.Dimension Water heater 1.The dimension for air source heat pump water heater SWBH-26.0H-A-S 1450 Measure: mm Model SWBH-13.0H-B-S SWBH-13.0H-B Size 1115 1250... -
Page 9: Ⅵ.operation Introduction
Ⅵ.Operation introduction Water heater Water heater Operation introduction 1). Controller introduction 2) Wire controller button definition button ---to turn on or turn off your heat pump. button -----up and down button to check or change setting. Press these two button at the same time for 3seconds, lock the keyboard. button Press button alone, could come to clock setting. - Page 10 Ⅵ.Operation introduction Water heater Operation introduction In the state of OFF, LCD display clock and working mode only. When Press “power” button, heat pump turn on, and LCD display as below. Parameter data setting You could check and change the setting from any status as below steps. 1.Press up/ down button for the parameter you want to change setting.
- Page 11 Ⅵ.Operation introduction Water heater mmingON,press “ ”once ag of Timming Setting,press “ ” once again,when the timming ON/OFF setting is set at the same time,the timming ON/OFF setting is cancelled.
- Page 12 Ⅵ.Operation introduction Water heater 4. Parameters Digit Meaning Range Default Remarks Cold water set point temp Can adjust SET0 10-25℃ 12℃ Hot water set point temp Can adjust SET1 25-80℃ 55℃ Tested data Water inlet temp 0~99℃ Tested data Water outlet temp 0~99℃...
- Page 13 Ⅵ.Operation introduction Water heater Operation introduction 5 Failure code and parameter tables Long-distance Protect/Failure Remark controller Water inlet temperature sensor failure PP 1 Water outlet temperature sensor failure Coil temperature sensor 1 failure Air circulation temperature sensor 1 failure Ambient temperature sensor failure Coil temperature sensor 2 failure Winter anti-freezing protection I Winter anti-freezing protection II...
- Page 14 Ⅵ.Operation introduction Water heater 6. Two ways to connect wifi a. First way For Android System Install the APP of “SmartLink3 Demo” ◎ ◎ Turn on the heat pump, and make sure the area of heat pump installed cover with wifi signal. What's more, make sure your smart phone with wifi connected.
- Page 15 Ⅵ.Operation introduction Water heater a. First way It may take 1 minute to match all wifi setting. ◎ If connected successful, it could show “SmartLink Compelted” as below pic. If failed, it could show “time out”as below pic, then you have to repeat step 3 & 4 again. ◎...
- Page 16 Ⅵ.Operation introduction Water heater a. First way For IOS System Find out “SmartLink” in the APP Store, download and install it. ◎ You can scan below QR code for fast installation as well. ◎ Input the passwords of your local wifi. ◎...
- Page 17 Ⅵ.Operation introduction Water heater b. Second way for wifi setting Turn on the heat pump. ◎ Use laptop or smart phone to find wifi “HF-LPB100”and connect it. ◎ Open website of “10.10.100.254”, input user name and password as below. ◎ User name: admin Password: admin After that, you could find below interface.
- Page 18 Ⅵ.Operation introduction Water heater b. Second way for wifi setting Then select STA setting, press Scan, then press Save. See below refer pic. ◎ ◎ Please choose the safety and reliable local area network which available. Then press OK to Confirm.
- Page 19 Ⅵ.Operation introduction Water heater b. Second way for wifi setting Make sure the Encryption Method choose WPA2PSK, and Encryption Algorithm choose AES. ◎ Input the password of your local area network. Then press Save. After finished all above steps, come to Restart interface, and press OK to confirm ◎...
- Page 20 Ⅵ.Operation introduction Water heater c. Remarks ◎ Make sure to press “SAVE” for each setting. If IP address changed, all above setting need to re-set. ◎ If you try first way of “Smartlink3 DEMO” and failed, ◎ then try the second way for wifi setting. Long press turn ON/OFF button and UP button for 10 ◎...
-
Page 21: Ⅶ . Electric Circuit Wiring Diagram
Water heater... - Page 22 Water heater...
- Page 23 Water heater...
-
Page 24: Ⅷ. Installation Instructions
Water heater 1. Unit installation 1).Installation location Host unit Should be installed in a larger & well-ventilated place. Installation location should ensure unhindered access outlet (inlet & outlet shown as below). Install gutter or set up positions near the outfall, to facilitate the drainage. The installation base or bracket should be steady, to ensure the smooth operation of running units. - Page 25 Water heater 2. Pipeline connecting Installation notes: Water drain pipes, overflow pipes should be installed next to the drainage inlets to facilitate drainage, vent valve should be installed on vent pipes. Repair valve should be installed in front of the electromagnetic valve on the pipeline system, which is convenient for future repair.
- Page 26 Water heater Running Test and operation 1. Preparatory work before the running test. a) Inspection of heat pump water heater units: Check if the unit appearance and the pipeline system were damaged during transport. Check if there is air exist in the water pipes, if yes, should empty all the air inside by the manual exhaust valve and the exhaust valve on the water pumps.
-
Page 27: Ⅸ .Maintenance
Water heater Maintenance Heat pump water heater is a high automatic equipment, please perform regular inspection termly. If the unit can be long-term and efficiently maintenance, the operating reliability and service life will have an unexpected increase. 1.The extra water filters should be cleaned regularly to ensure clean water quality of the system, and to avoid damage caused by dirty water filter blocking. - Page 28 Air Source Heat Pump-Water Heater...
