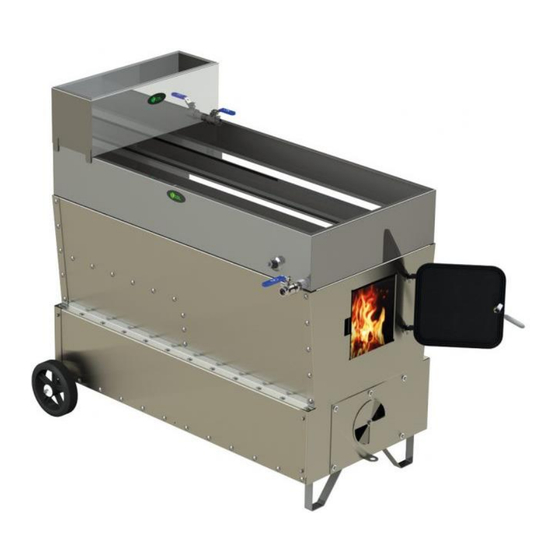

- Page 1 OWNER’S MANUAL Version 1.0 | 02/02/2023 67009020024SS -MAN 2’x4’ HOBBY PRO EVAPORATOR © All rights reserved - CDL Sugaring Equipment.
- Page 2 Thank you for choosing a CDL wood evaporator. Our 40 years of experience serving maple syrup producers means that you’ve purchased a high-quality, powerful piece of equipment. INFORMATION Record these details for future reference Brand: Date purchased: Model number: Serial number:...
-
Page 3: Table Of Contents
TABLE OF CONTENTS BASIC COMPONENTS INCLUDED AND OPTIONAL PARTS 4 ASSEMBLY AND INSTALLATION CUTTING INSULATION BRICKING OPERATING THE EVAPORATOR WARRANTY SAFETY Wood evaporators can be dangerous. Always wear heat-proof gloves and clothing when operating an evaporator. Sugar shacks often have visitors. Make sure all visitors, especially children, stay a safe distance away from the evaporator. -
Page 4: Basic Components Included And Optional Parts
BASIC COMPONENTS INCLUDED • Panels and door for assembling • Nuts and bolts • Handle • Ceramic wool 3x (23" x 48") • Black steel 90° elbow • 2, 6" pipes, black steel OPTIONAL PARTS NUMBER DESCRIPTION NUMBER DESCRIPTION DELUXE PAN 24’’ x 48’’ 67009021324 WHEEL KIT 67009022024... -
Page 5: Assembly And Installation
ASSEMBLY AND INSTALLATION Please make sure to follow the steps below to ensure proper operation of the evaporator. Number Description EVHO-A00039 FRONT PANEL ASSEMBLY SS EVHO-P00056 REAR PLATE SS EVHO-A00026 6IN DUCT COLLAR EVHO-P00057 SIDE PLATE SS EVHO-P00058 LOWER SIDE PLATE SS EVHO-P00059 BOTTOM PLATE SS EVHO-P00060... - Page 6 COMPONENTS...
- Page 7 STEP 1 Assembling the evaporator base...
- Page 8 STEP 2 Assembling the evaporator base...
- Page 9 STEP 3 Assembling the evaporator base...
- Page 10 STEP 4 Installing the door and ventilation disc...
- Page 11 STEP 5 Installation of the chimney and grilles...
-
Page 12: Cutting Insulation
STEP 6 - Wool cutting and insulation Use scissors or a bladed knife to cut out each piece. Refer to the cutting diagram below. Measure and cut following the colored lines. Cut out the insulation parts P56, P57, P62, P63, P64 and P89 following the diagram below. Then insulate the panels with the cut out pieces. -
Page 13: Bricking
22 1-1/4 in. x 4-1/2 in. x 9 in. bricks (OPTIONAL - item 670090217) are required to complete the complete bricklaying (bricks not included). You can order the necessary bricks when you place your order or purchase them from a CDL dealer near you. -
Page 14: Operating The Evaporator
IMPORTANT SAFETY NOTE THE AREA IN FRONT OF THE EVAPORATOR DOOR IS VERY HOT WHEN THE DOOR IS OPEN. ALWAYS WEAR HEAT-RESISTANT GLOVES, PROTECTIVE CLOTHING AND SAFETY GOGGLES. INSUFFICIENT PROTECTION MAY LEAD TO SEVERE BURNS. OPERATING THE EVAPORATOR Before turning the evaporator on: •... -
Page 15: Warranty
Your evaporator is covered by a 2-year limited warranty. For two years from your original date of purchase, CDL Sugaring Equipment Inc (CDL), will replace or replace any parts of this evaporator that prove to be defective in materials or workmanship when such evaporator is installed, used and maintained according to the instructions provided in the user manual. - Page 16 CDL shall not be liable for consequential or incidental damages such as property damages and incidental expenses or loss or revenues caused by any event covered by this warranty.
