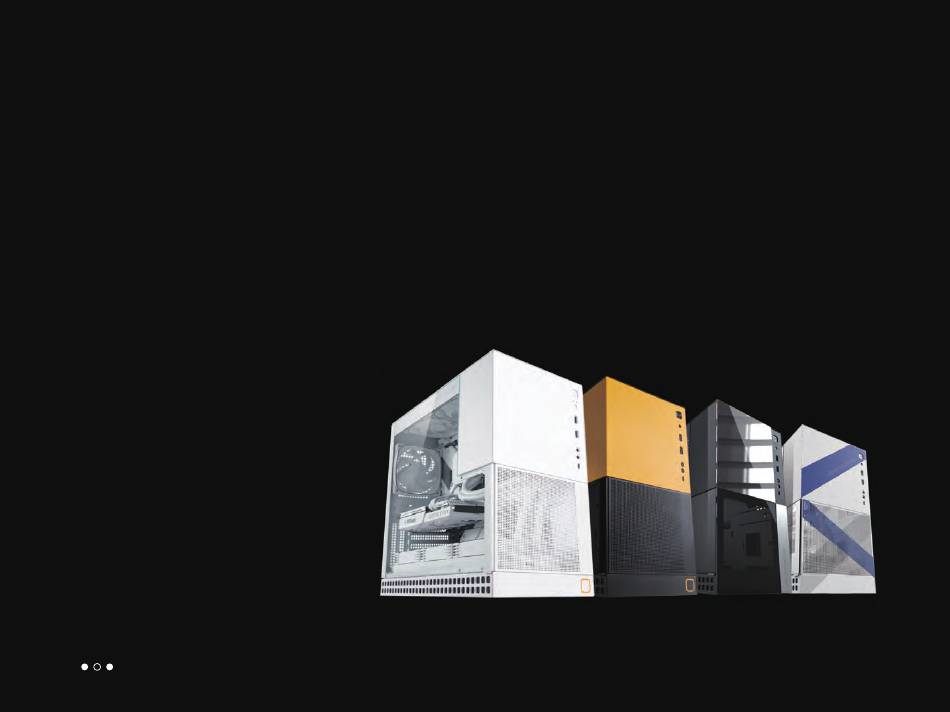

- Page 1 New approach M4 mini ATX all-round steel cannon Model 4 User Guide The user manual is for Model 4 all series...
- Page 2 （ 15.6”~16.9” ）× 8.5” × 16.1” Remove glass door / Vertical bracket for graphics card / top cover for side panel Drive Bay Max: 2 × 3.5” / 4 × 2.5” Remove multi-function bracket Remove power supply unit compartment M/B Compatibility Remove the water cooling rack E-ATX ( 12”...
- Page 3 FEATURE PARTS KIT INCLUDES Model 4 User Guide Model 4 User Guide Multiple installation modes Up to 4 installation modes,it could be large or Socket Head Cap Screw Power Cable Tie small Function:The spare screws Function:Arranging PSU cable Remark: #6-32...
- Page 4 HOW TO ASSEMBLE HOW TO ASSEMBLE Model 4 User Guide Model 4 User Guide Remove the glass door/Vertical bracket for graphics card/ Remove multi-function support bracket top cover for side panel Step 1 Loosen three screws/remove the multi-function support bracket...
- Page 5 HOW TO ASSEMBLE HOW TO ASSEMBLE Model 4 User Guide Model 4 User Guide Install the I/O baffle Remove the water cooling rack Motherboard mounting hole locations table Remove the graphics card baffle Step 1 Loosen three screws/lift and remove the water cooling rack Micro—ATX...
- Page 6 HOW TO ASSEMBLE HOW TO ASSEMBLE Model 4 User Guide Model 4 User Guide Install the motherboard Multifunctional support bracket introduction Function 1: Support the PSU cover Function 2:Install 2.5’ hard disk Function 3: Support horizontal graphics card Equipped with 1 multifunctional support bracket...
- Page 7 HOW TO ASSEMBLE HOW TO ASSEMBLE Model 4 User Guide Model 4 User Guide Install graphics card horizontally Install graphics card vertically Step 1 Pre-lock the bracket on the graphics cards Step 1 Lock the graphics card bracket/remove the protection cover...
- Page 8 HOW TO ASSEMBLE HOW TO ASSEMBLE Model 4 User Guide Model 4 User Guide Install graphics card vertically and the protection cover Install the PSU Step 1 Remove the graphics card baffle/lock Step 1 Lock PSU horizontally Step 2 Lock the graphics card’ s protection cover protection cover graphics card baffle...
- Page 9 HOW TO ASSEMBLE HOW TO ASSEMBLE Model 4 User Guide Model 4 User Guide Step 2 Install the PSU cover Step 3 Sliding pin to the hole and right slide to the bottom Sliding pin to the hole and right slide to the bottom...
- Page 10 Model 4 User Guide Install fans/radiators(standard state) Step 1 Attach the decorative sheet for the PSU Step 4 Lock the top fans/Align the slide rails and the hanging table/lock the water cover(needs to bought separately) cooling bracket Step 2 Lock the fans on the rear panel...
- Page 11 HOW TO ASSEMBLE HOW TO ASSEMBLE Model 4 User Guide Model 4 User Guide Install fans/radiator(Lifting mode for water cooling bracket)） Step 1 Lock the fans in the foot stand Step 2 Lock the top radiator/Align the hanging table/lock the bracket...
- Page 12 HOW TO ASSEMBLE HOW TO ASSEMBLE Model 4 User Guide Model 4 User Guide Fans and water cooling installation options radiator/fan Step 1 The thumb screws removed and then take down the HDD bracket/lock the HDD/SSD(equipped with 3 brackets) 240 radiator/fan 140x 2 fan 3.5”HDD...
- Page 13 HOW TO ASSEMBLE HOW TO ASSEMBLE Model 4 User Guide Model 4 User Guide Cable arrangement and the tie position Lock the 3.5 HDD Step 1 Cable arrangement (The dotted lines are the routing paths/the red frame is the tie position)
- Page 14 HOW TO ASSEMBLE HOW TO ASSEMBLE Model 4 User Guide Model 4 User Guide The routing position for PSU vertically installation Install the top cover for the side panel Step 1 The slide nail of the the side panel be aligned with the hole/inserted downward Step 2 Press the top three clips/flatten the top cover...
- Page 15 HOW TO ASSEMBLE FRONT I/O WIRING SCHEMATIC Model 4 User Guide Model 4 User Guide Install the glass door/fragrance Front I/O wiring schematic Step 1 Align hinge pivot downward into the glass revolving door Step 2 The fragrance is magnetized to the top of the case...
- Page 16 4. If you want to handle this product and its contents, please remove all components inside this product first, so as to avoid damage to this product and related components, and avoid personal injury.
- Page 17 2. For information about the warranty coverage of this product, please visit Geometric Future’s website www.GeometricFuture.com,. 3. The actual products may vary and the pictures shall serve as reference only. Suzhou Geometric Future Creative Technology Co., Ltd. reserves the right of final modification and interpretation.
