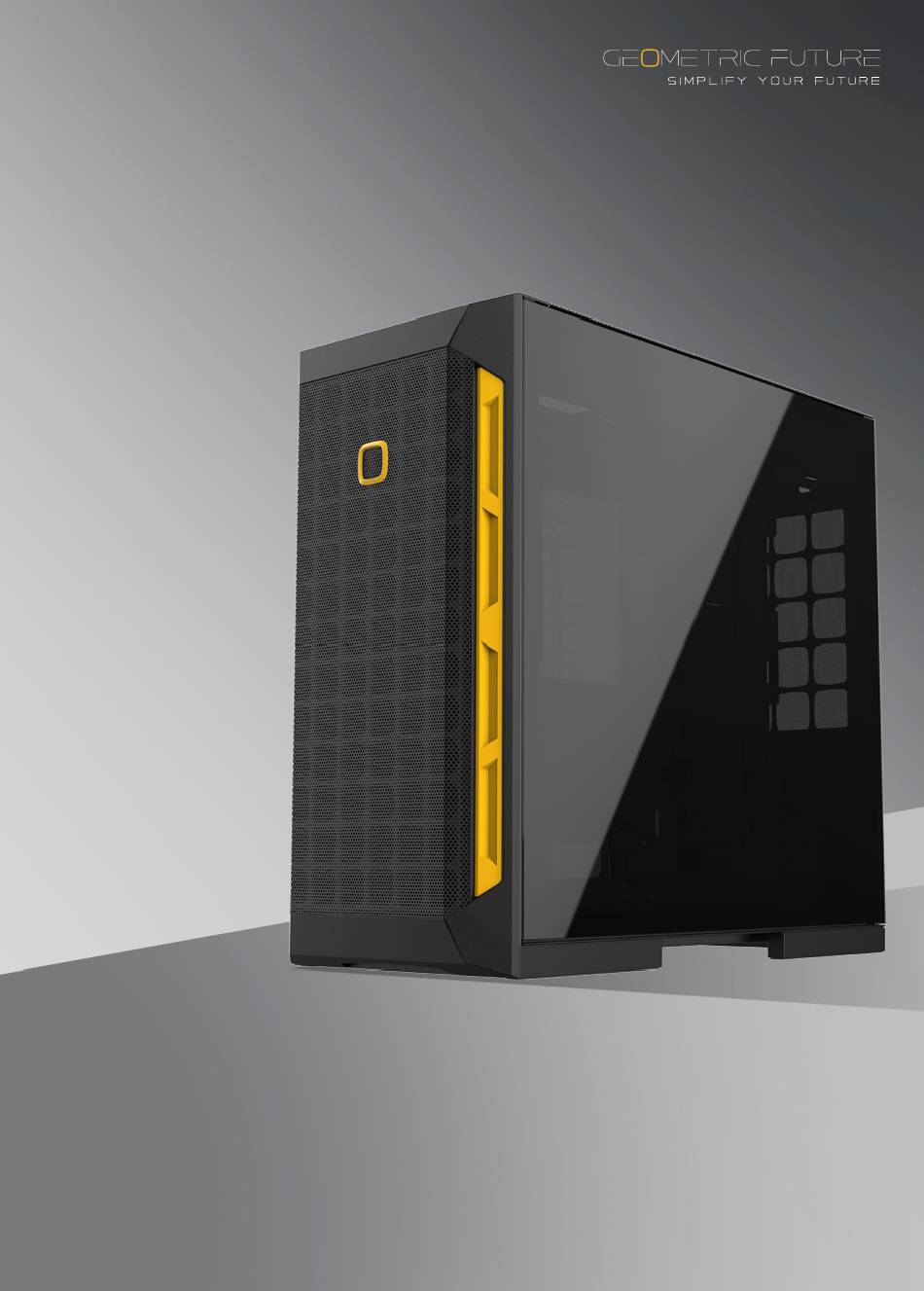

- Page 1 D A L I Model 6 User Guide 用 户 指 南 此说明适用于MODEL 6全系列...
- Page 2 达 利 简约游戏风格造型 细腻网面 顺畅进出风...
-
Page 3: Table Of Contents
CONTENTS 产品目录 Modle 6 User Guide 产品规格 产品特点 零件包内容 Specifications Feature Parts Kit Includes 安装步骤 How to assemble 拆除侧板及顶盖 Remove side panels and top panel 安装主板I/O挡片 Install the motherboard I/O baffle 安装主板 Install the motherboard 安装显卡 Install the graphics card 侧装显卡... - Page 4 SPECIFICATIONS 产品规格 Modle 6 User Guide Model Case Type Mid Tower Material Steel T0.8 ，Tempered Glass T4.0 Product Dimension 450 x 215 x 450 mm ( H x W x D ) 17.7“ x 8.5” x 17.7” Drive Bay Max：4 x 3.5”/2.5“ tray M/B Form Factor E-ATX（12”...
- Page 5 FEATURE 产品特点 Modle 6 User Guide Excellent Heat Dissipation Vertical airflow/ full ventilation on three sides/ fast-ventilating 优秀散热 meshy top panel / optimized 垂直三面风道 / 全面网高通风率顶盖 / 电源风道优化 Superior Compatibility 12" x 11" motherboard / 7 x fan mounts / dual 360/420mm 超强兼容性...
- Page 6 PARTS KIT INCLUDES 零件包内容 Modle 6 User Guide Motherboard / 2.5“SSD Screw Power Supply Screw 电源螺丝 主板/2.5”硬盘螺丝 用途 主板 / 2.5”硬盘 用途 电源 备注 备注 #6-32 数量 数量 Copper Stud 3.5“HDD Screw 铜柱 3.5”硬盘螺丝 用途 3.5”硬盘 用途 主板固定 备注 #6-32 备注...
-
Page 7: How To Assemble
HOW TO ASSEMBLE 安装步骤 Modle 6 User Guide 拆除侧板 及 顶盖 安装主板I/O挡片 Remove side panels and top panel 拧松侧板螺丝 / 并依箭头指示方向拆除两侧板 依箭头指示方向拆除顶盖 Loosen end panel screws Remove both side panels and top panel in the direction indicated by arrows 钢化玻璃拆装注意轻拿轻放！... - Page 8 HOW TO ASSEMBLE 安装步骤 Modle 6 User Guide 安装主板I/O挡片 Install the motherboard I/O baffle...
-
Page 9: Install The Motherboard
HOW TO ASSEMBLE 安装步骤 Modle 6 User Guide 安装主板 Install the motherboard Motherboard mounting hole locations table 主板孔位对照表 Micro—ATX E-ATX... - Page 10 HOW TO ASSEMBLE 安装步骤 Modle 6 User Guide 安装主板 Install the motherboard...
-
Page 11: Install The Graphics Card
HOW TO ASSEMBLE 安装步骤 Modle 6 User Guide 安装显卡 Install the graphics card Step 1 拆显卡封条 Remove the card seal sticker... - Page 12 HOW TO ASSEMBLE 安装步骤 Modle 6 User Guide 安装显卡 Install the graphics card Step 2 锁装显卡 Mount the graphics card...
-
Page 13: Side-Mounted Graphics Card
HOW TO ASSEMBLE 安装步骤 Modle 6 User Guide 侧装显卡 （ 显卡转接板组需另购 ） Side-mounted graphics card (graphics card adapter board needs to be purchased separately) Step 1 拆显卡封条 Remove the card seal sticker （请使用工具拆卸挡片， 以防受伤 ）... - Page 14 HOW TO ASSEMBLE 安装步骤 Modle 6 User Guide 侧装显卡 （ 显卡转接板组需另购 ） Side-mounted graphics card (graphics card adapter board needs to be purchased separately) Step 2 锁装显卡 Mount the graphics card...
-
Page 15: Fan And Water Cooling Mounting Options
HOW TO ASSEMBLE 安装步骤 Modle 6 User Guide 风扇及水冷安装选项 （ 尺寸限制参照产品规格表描述 ） Fan and water cooling mounting options (refer to product specifications for size limitation) 风扇... -
Page 16: 安装底部风扇/水冷模组 Mount The Bottom Fan/Water Cooler
HOW TO ASSEMBLE 安装步骤 Modle 6 User Guide 安装底部风扇/水冷模组 Mount rear panel 120/240/360 water cooler Step 1 拆取底部磁吸滤网 Remove water cooler bracket and bottom magnetic suction filter screen... - Page 17 HOW TO ASSEMBLE 安装步骤 Modle 6 User Guide Step 2 锁装风扇/水冷模组于机箱内 （螺丝由风扇/水冷产品提供） Mount the water cooler bracket and radiator.
- Page 18 HOW TO ASSEMBLE 安装步骤 Modle 6 User Guide Step 3 装回底部磁吸滤网 Mount the water cooler bracket and radiator.
-
Page 19: 安装前部风扇/水冷 Mount The Front Fan/Water Cooler
HOW TO ASSEMBLE 安装步骤 Modle 6 User Guide 安装前部风扇/水冷 Mount the top fan/water cooler Step 1 拆取前置面板 Remove the front glass panel... - Page 20 HOW TO ASSEMBLE 安装步骤 Modle 6 User Guide Step 2 安装前板风扇/水冷 Install the front panel fan/water-cooling module Step 3 装回前置面板 Reinstall the front glass panel.
- Page 21 HOW TO ASSEMBLE 安装步骤 Modle 6 User Guide 安装顶部风扇/水冷 （螺丝由风扇/水冷产品提供） Install the power cord...
- Page 22 HOW TO ASSEMBLE 安装步骤 Modle 6 User Guide 锁装电源 Install the power cord...
-
Page 23: Install Hard Drive
HOW TO ASSEMBLE 安装步骤 Modle 6 User Guide 安装硬盘 （最多支持4组硬盘位 / 不同机种标配硬盘支架数量不等） Install hard drive (support up to 6 hard drive brackets / different case models come with different number of hard drive brackets) 手拧螺丝 / 拆取硬盘支架 Screw by hand / Remove the hard drive bracket... - Page 24 HOW TO ASSEMBLE 安装步骤 Modle 6 User Guide 安装硬盘 Install hard drive 3.5”HDD 2.5”HDD 2.5”HDD 3.5”HDD 锁装2.5”HDD Mount the 2.5”HDD...
- Page 25 HOW TO ASSEMBLE 安装步骤 Modle 6 User Guide 安装硬盘 Install hard drive 锁装3.5”HDD Mount the 3.5”HDD 支架锁装硬盘支持多个方向选择 Hard drive may be installed in several directions 3.5”HDD 3.5”HDD 2.5”HDD 2.5”HDD...
- Page 26 HOW TO ASSEMBLE 安装步骤 Modle 6 User Guide 安装硬盘 Install hard drive 硬盘安装完成示意图 Schematic diagram of hard drive installation...
-
Page 27: Cable Management & Routing
HOW TO ASSEMBLE 安装步骤 Modle 6 User Guide 线材整理绑线位置 虚线为线材路径 黄色块为扎线位置 ICable management & routing, where dotted line is wire routing and yellow block is cable bundle position 出线孔位置... -
Page 28: Put Back The End Panel And Top Panel
HOW TO ASSEMBLE 安装步骤 Modle 6 User Guide 装回侧板与顶盖 Put back the end panel and top panel... - Page 29 FRONT I/O WIRING SCHEMATIC 前置I/O接线示意 Modle 6 User Guide POWER SW RESET SW HDD LED HD AUDIO USB 3.0 TYPE-C （ 高阶版标配 ） POWER LED （Provided For Premium Cases）...
- Page 30 PRECAUTIONS 注意事项 Modle 6 User Guide 注意事项 1.请严格依照本使用手册所示步骤进行安装。 2.安装计算机产品过程中， 请佩戴静电环及防护手套进行操作， 须供电操作的产品或组件请严格遵照 正确的接插方式及线序， 否则可能导致计算机主板等硬件烧毁及人员损伤。 3. 请勿将此产品用于指定范围以外的用途， 且勿对本产品进行改装， 以免导致本产品及相关组件的 故障及损毁。 4. 若要搬运本产品及内含物品， 请先拆除本产品内所有组件后再进行操作， 以免造成本产品及相关 组件的损坏， 并避免人员损伤。 5. 若遇到产品组装或使用疑问， 请及时咨询官方客服， 以获得正确指导后进行操作。 6. 若擅自违规组装造成本产品及各组件损坏， 官方将仅做有偿维修及更换零组件。 1. Please assemble in strict accordance with the steps shown in this Manual. 2.
- Page 31 2. For information about the warranty coverage of this product, please visit Geometric Future’s website www.- GeometricFuture.com,. 3. The actual products may vary and the pictures shall serve as reference only. Suzhou Geometric Future Cre- ative Technology Co., Ltd. reserves the right of final modification and interpretation.
- Page 32 www.GeometricFuture.com...
