Pioneer PD-F606 Service Manual

Service
Manual

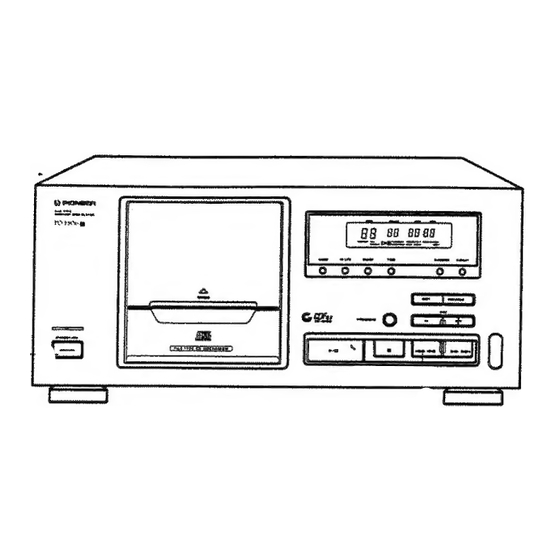

FILE-TYPE CD PLAYER
PD-F606
PD-F506
ORDER NO.
RRV 1729
@ Refer to the service manual RRV1457 for PD-F605/KUXJ.
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
P Model beaks tea tinenca Bee
aioe PD- rea
AC120V
AC120V
e For the circuit and mechanism descriptions, refer to the
service guide RRV1469 for PD-F605, PD-F505.
1. CONTRAST OF MISCELLANEOUS PARTS ....................
2. SCHEMATIC AND PCB CONNECTION DIAGRAMS........ 4
PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153, Japan
PIONEER ELECTRONICS SRO ee | INC. P.0.Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER ELECTRONIC [EUROPE] N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 501 Orchard Road, #10-00 Lane Crawford Place, Singapore 0923
