INSTALLATION GUIDE

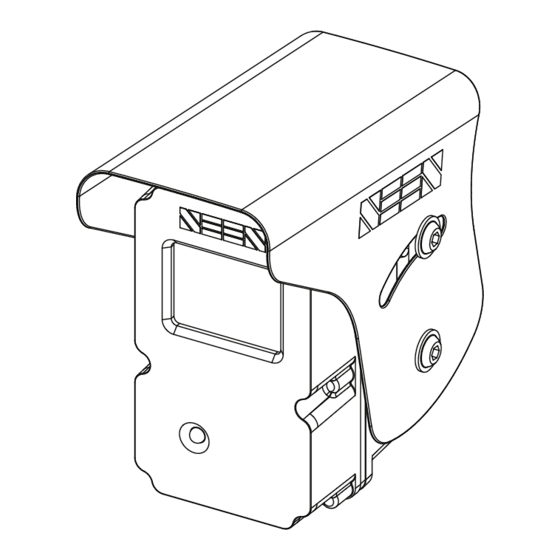

SEEN IRIS-i Camera
This guide is intended for anyone installing SEEN IRIS-i cameras on SEEN IRIS-860 sensors. For information on how to
create a SEEN Insight account and activate camera subscriptions, refer to the SEEN Insight User Guide.
www.seensafety.com |
we've Got Your Back
1
© Copyright 2023 Seen Safety Limited. IRIS-i camera installation guide V231010
Advertisement
Table of Contents
Related Manuals for Seen IRIS-i
Summary of Contents for Seen IRIS-i
- Page 1 INSTALLATION GUIDE SEEN IRIS-i Camera This guide is intended for anyone installing SEEN IRIS-i cameras on SEEN IRIS-860 sensors. For information on how to create a SEEN Insight account and activate camera subscriptions, refer to the SEEN Insight User Guide.
-
Page 2: Table Of Contents
• 4 x M6 x 12mm hex head screw • 2 x M6 x 16mm hex head screw • 2 x M6 Nylock nut Seen Safety Limited Email: support@seensafety.com Call Toll free: +1 888 858 4648 www.seensafety.com © Copyright 2023 Seen Safety Limited. IRIS-i camera installation guide V231010... -
Page 3: Before You Start
See page 6. Overview IRIS 860 sensor and IRIS-i camera The IRIS-i camera is designed to be attached to an IRIS 860 sensor. Detection information is automatically uploaded by IRIS-i to SEEN Insight (insight.seensafety.com). When powered, IRIS-i cameras automatically connect to the mobile data network via an embedded roaming SIM card. -
Page 4: Installation
Fully install and test the IRIS 860 sensor before attaching the IRIS-i camera. The IRIS-i camera can be attached to either side of an IRIS 860 sensor. Configure Step-1 according to which side of the sensor the camera will be mounted on. -
Page 5: Antenna
• Check the antenna cable is correctly fastened. • Try repositioning the antenna to get a clearer signal. 5 pin M12 power socket • Restart the IRIS-i. It must be powered off for more than 10 (Connected to the seconds to fully shut down. -
Page 6: Internal Memory
Internal Memory The IRIS-i camera’s internal memory stores detection data until it is uploaded to SEEN Insight, or it is over-written by new data. Detection event data Information about each detection (data and still-image) is immediately uploaded to SEEN Insight when the camera is online. -
Page 7: Warranty
110mm H x 64mm W x 66mm D M12 8-pin (to sensor) Dual SMA antenna connectors (RF connector in centre) Weight 0.26kg IRIS-i camera label SCN0023 A0001234 Example camera serial number SCN0023A0001234 © Copyright 2023 Seen Safety Limited. IRIS-i camera installation guide V231010... - Page 8 Camera trigger Input 3.5V 0.7V High impedance external input min. trigger input for the camera Product specifications are subject to change without notice to improve reliability, function, design or otherwise. © Copyright 2023 Seen Safety Limited. IRIS-i camera installation guide V231010...
- Page 9 Call Toll free: +1 888 858 4648 www.seensafety.com IMPORTANT. SEEN IRIS 860 sensors can provide collision warning assistance to the operator but do not replace the need for proper operator training and best practice safe operating procedure. While IRIS 860 sensors can alert the machine operator to a potential collision, the operator is always fully responsible for the safe operation of the equipment.
