Summary of Contents for KICK Trio 48

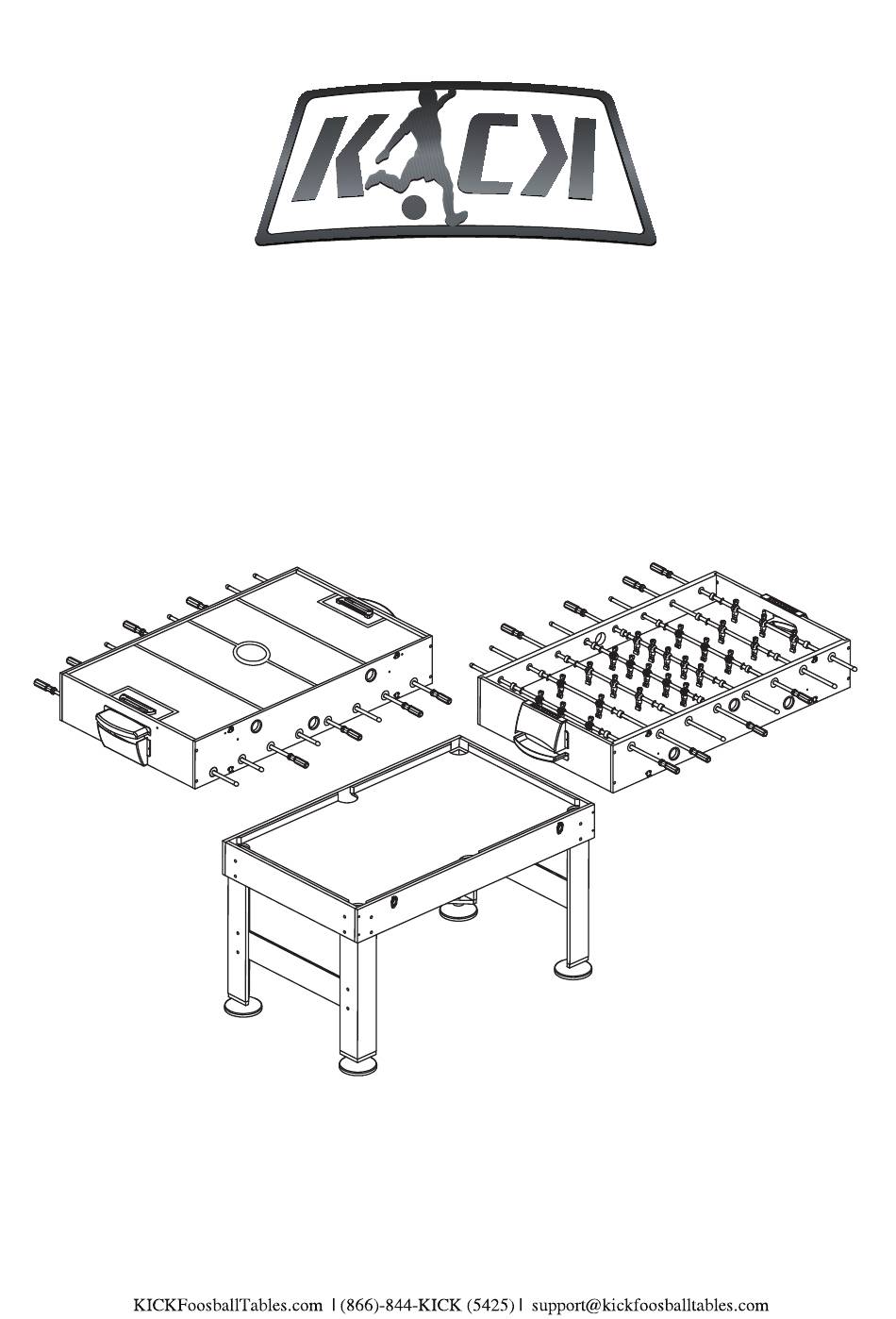

- Page 1 KICK Trio 48 ” (Brown/Black) 3-IN-1 MULTI-GAME FOOSBALL TABLE ASSEMBLY INSTRUCTIONS FY567...
- Page 2 WARNING: TWO ADULTS ARE NEEDED TO ASSEMBLE THE SOCCER TABLE...
- Page 3 SIDE PANEL END PANEL BILLIARD TABLE RIGHT LEG LEFT LEG CROSS BAR HOCKEY SUPPORT BRACE ROD HANDLE ROD END CAP ROD BUMPER ROD WASHER HOCKEY GOAL PLAYFIELD PLAYER PLAYER 3 PLAYER ROD 2 PLAYER ROD 5 PLAYER ROD SUPPORT ROD LEG LEVELER GOAL BOX TOP BILLIARD BALLS SET...
- Page 4 WARNING: TWO ADULTS ARE NEEDED TO ASSEMBLE THE SOCCER TABLE STEP 1 STEP 2...
- Page 5 WARNING: TWO ADULTS ARE NEEDED TO ASSEMBLE THE SOCCER TABLE STEP 3 STEP 4 Please temporarily unplug the wire from the connecter at this step.
- Page 6 WARNING: TWO ADULTS ARE NEEDED TO ASSEMBLE THE SOCCER TABLE STEP 5 Run the wires unplugged in the Step 4 through the hole on the side panel and connect them together. STEP 6...
- Page 7 WARNING: TWO ADULTS ARE NEEDED TO ASSEMBLE THE SOCCER TABLE STEP 7 Insert the Blower Motor's wire jack into the hole on the side panel, insert it tightly to hold it in place, and its use will be connected to the Adapter plug while you play the air hockey table.
- Page 8 WARNING: TWO ADULTS ARE NEEDED TO ASSEMBLE THE SOCCER TABLE STEP 9A STEP 9B Steps 9A to 9E are optional if you want. Attach the plastic 2c, 2d, 3c, 3d to the playing field with S2. P13a STEP 9C STEP 9D Cover the Screw Hole Cap P13a to the screw hole.
- Page 9 WARNING: TWO ADULTS ARE NEEDED TO ASSEMBLE THE SOCCER TABLE STEP 9E 13 15 Hole Insert the rod end part way through one side panel, and then place the rest of the parts needed on each rod, in the order shown, before inserting through the other side panel.
- Page 10 WARNING: TWO ADULTS ARE NEEDED TO ASSEMBLE THE SOCCER TABLE STEP 10A STEP 10B Steps 10A to 10E are optional if you want. Attach the plastic 1c, 1d, 3c, 3d to the playing field with S2. P13a STEP 10C STEP 10D Cover the Screw Hole Cap P13a to the screw hole.
- Page 11 WARNING: TWO ADULTS ARE NEEDED TO ASSEMBLE THE SOCCER TABLE STEP 10E 13 48 Hole Insert the rod end part way through one side panel, and then place the rest of the parts needed on each rod, in the order shown, before inserting Hole through the other side panel.
- Page 12 WARNING: TWO ADULTS ARE NEEDED TO ASSEMBLE THE SOCCER TABLE STEP 11 NOTE: Handle (10) attaches to rod end with hole and Rod End Cap (11) goes on opposite Each team should face the opposite end. goal and all be the same color. See diagram above for rod and player positions.
- Page 13 WARNING: TWO ADULTS ARE NEEDED TO ASSEMBLE THE SOCCER TABLE STEP 12...
- Page 14 WARNING: TWO ADULTS ARE NEEDED TO ASSEMBLE THE SOCCER TABLE STEP 13 NOTE: Two adults are required to turn table upright. Turn over using main table body only, NOT legs, and place on all four feet on ground at same time.
- Page 15 WARNING: TWO ADULTS ARE NEEDED TO ASSEMBLE THE SOCCER TABLE STEP 14 Please lock it before you play the foosball game...
- Page 16 WARNING: TWO ADULTS ARE NEEDED TO ASSEMBLE THE SOCCER TABLE STEP 15 Plug the adaptor into the connector of the wire of the fan Please lock it before you play the air hockey game...
