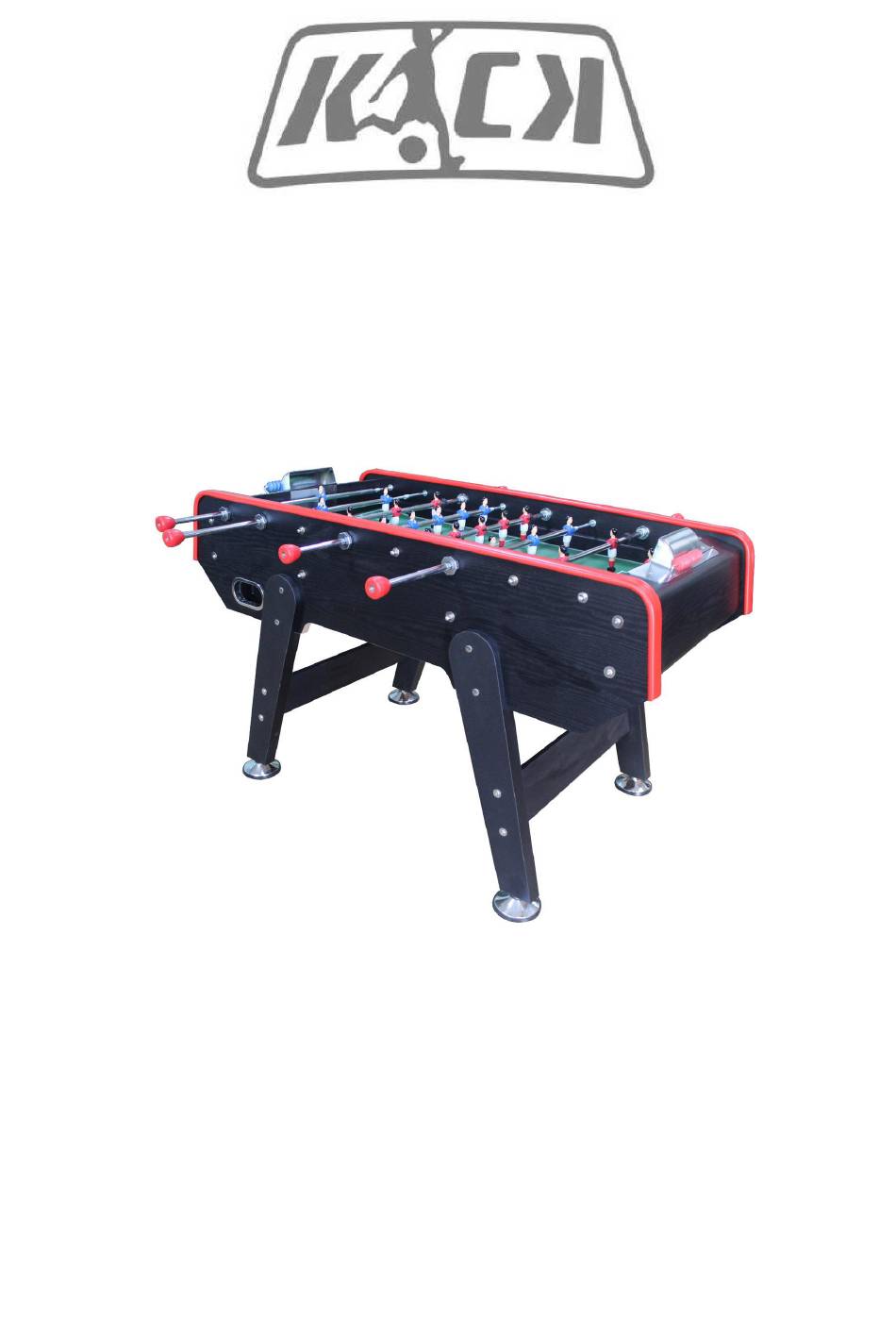

- Page 1 P045 Galaxy KICK Galaxy 55″ Telescopic Rods Foosball Table (Black) Assembly Instructions KICKFoosballTables.com I (866)-844-KICK (5425) I support@kickfoosballtables.com...
- Page 2 KICKFoosballTables.com I (866)-844-KICK (5425) I support@kickfoosballtables.com...
-
Page 3: Parts List
5/8＂ROUND HEAD SCREW 3/8＂x2-5/8＂BOLT 8pcs 12pcs 8pcs 3/8＂WASHER 3/8＂NUT 1/4＂x3＂BOLT 8pcs 8pcs 8pcs 1/4＂WASHER 1＂FLAT HEAD SCREW F8 x 40mm SCREW 8pcs 14pcs 8pcs 5/8＂ROUND HEAD SCREW METAL ROD SOCCER BALL 8pcs 2pcs 3pcs KICKFoosballTables.com I (866)-844-KICK (5425) I support@kickfoosballtables.com... - Page 4 END PANEL WOODEN TENON(8x30mm) 2pcs 2pcs 8pcs PLAYING FIELD PLAYFIELD SUPPORT BRACE RIGHT LEG 2pcs 2pcs LEFT LEG LEG PANEL DECORATIVE STRIP 2pcs 2pcs 2pcs GOAL BOX BALL CATCHER BALL RUNNER 2pcs 2pcs 2pcs KICKFoosballTables.com I (866)-844-KICK (5425) I support@kickfoosballtables.com...
- Page 5 SCORER (BLUE) 8pcs 1 HOME PLAYEYS ROD 2 HOME PLAYEYS ROD 5 HOME PLAYEYS ROD 3 HOME PLAYEYS ROD 1 AWAY PLAYEYS ROD 2 AWAY PLAYEYS ROD 5 AWAY PLAYEYS ROD 3 AWAY PLAYEYS ROD KICKFoosballTables.com I (866)-844-KICK (5425) I support@kickfoosballtables.com...
- Page 6 SLIDE THE PLAYING FIELD P4 INTO THE GROOVE ON THE SIDE PANEL P1 AND END PANEL P2 . SEE FIGURE 5. ATTACH SIDE PANEL P1 TO END PANEL P2 WITH BOLT H1 AND WASHER H2.SEE FIGURE 6. KICKFoosballTables.com I (866)-844-KICK (5425) I support@kickfoosballtables.com...
- Page 7 ATTACH BALL CATCHER P10 TO SIDE PANEL WITH SCREW H5.SEE FIGURE 10. ATTACH GOAL BOX P9 TO END PANEL WITH SCREW H5.SEE FIGURE 11. CONNECT GOAL BOX P9 AND BALL CATCHER P10 WITH BALL RUNNER P11.SEE FIGURE 12-13. KICKFoosballTables.com I (866)-844-KICK (5425) I support@kickfoosballtables.com...
- Page 8 ATTACH LEG PANEL P7 TO LEG WITH BOLT H9 AND WASHER H10.SEE FIGURE 16. ATTACH LEG LEVELER P12 TO LEG .SEE FIGURE 17. ATTACH DECORATIVE STRIP P8 TO SIDE PANEL WITH SCREW H11.SEE FIGURE 18-19. KICKFoosballTables.com I (866)-844-KICK (5425) I support@kickfoosballtables.com...
- Page 9 INSERT THE PLAYERS ROD C1-C8 THROUGH SIDE PANEL .SEE FIGURE 22-23. ATTACH BEARING A P13 AND BEARING B P14 TO SIDE PANEL .SEE FIGURE 24. ATTACH PLAYERS ROD C1-C8 TO SIDE PANEL WITH WASHER H2, ELASTIC WASHER H4 AND NUT H3. SEE FIGURE 25. KICKFoosballTables.com I (866)-844-KICK (5425) I support@kickfoosballtables.com...
- Page 10 SLIDE THE HANDLES P15 ON THE ENDS OF THE RODS .SEE FIGURE 27. ATTACH THE HANDLES P15 ON THE ENDS OF THE RODS WITH SCREW H12.SEE FIGURE 28. ATTACH SCORER P16 AND P17 TO END PANEL WITH SCREW H13.SEE FIGURE 30-32. KICKFoosballTables.com I (866)-844-KICK (5425) I support@kickfoosballtables.com...
- Page 11 Now that you have completed the assembly Successfully, you can now enjoy hours of Endless fun with new Kick Foosball TABLE KICKFoosballTables.com I (866)-844-KICK (5425) I support@kickfoosballtables.com...
