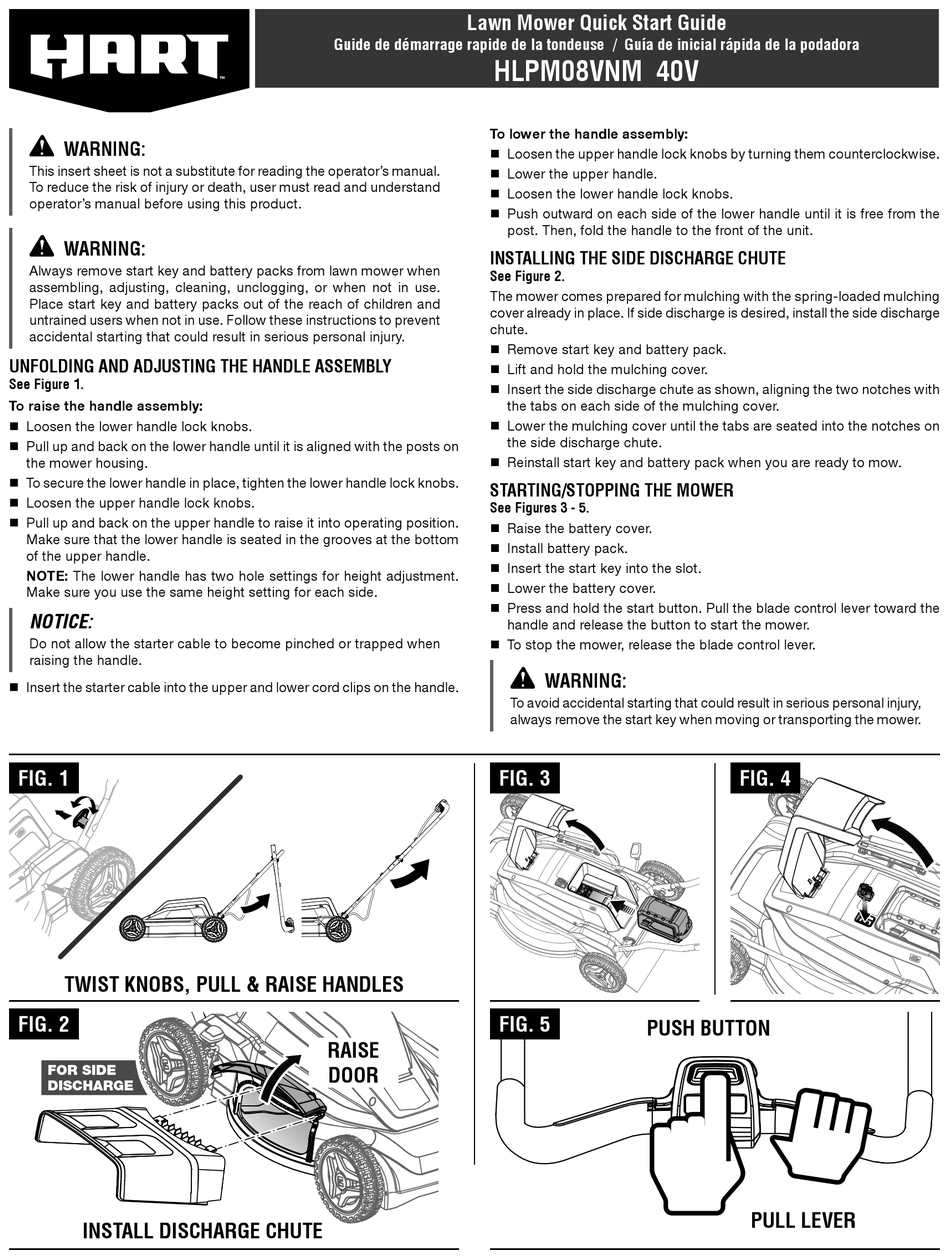

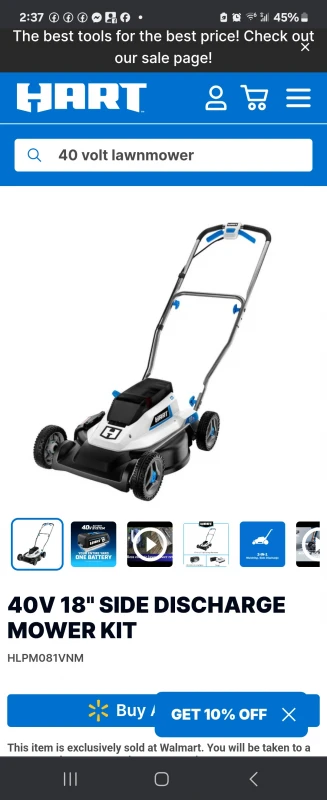

HART HLPM08VNM Quick Start Manual

WARNING:

This insert sheet is not a substitute for reading the operator's manual.
To reduce the risk of injury or death, user must read and understand
operator's manual before using this product.
WARNING:
Always remove start key and battery packs from lawn mower when
assembling, adjusting, cleaning, unclogging, or when not in use.
Place start key and battery packs out of the reach of children and
untrained users when not in use. Follow these instructions to prevent
accidental starting that could result in serious personal injury.

UNFOLDING AND ADJUSTING THE HANDLE ASSEMBLY

See Figure 1.
To raise the handle assembly:
 Loosen the lower handle lock knobs.
 Pull up and back on the lower handle until it is aligned with the posts on
the mower housing.
 To secure the lower handle in place, tighten the lower handle lock knobs.
 Loosen the upper handle lock knobs.
 Pull up and back on the upper handle to raise it into operating position.
Make sure that the lower handle is seated in the grooves at the bottom
of the upper handle.
NOTE: The lower handle has two hole settings for height adjustment.
Make sure you use the same height setting for each side.
NOTICE:
Do not allow the starter cable to become pinched or trapped when
raising the handle.
 Insert the starter cable into the upper and lower cord clips on the handle.
FIG. 1
TWIST KNOBS, PULL & RAISE HANDLES
FIG. 2
FOR SIDE
DISCHARGE
INSTALL DISCHARGE CHUTE
Lawn Mower Quick Start Guide
Guide de démarrage rapide de la tondeuse / Guía de inicial rápida de la podadora
HLPM08VNM 40V
To lower the handle assembly:
 Loosen the upper handle lock knobs by turning them counterclockwise.
 Lower the upper handle.
 Loosen the lower handle lock knobs.
 Push outward on each side of the lower handle until it is free from the

INSTALLING THE SIDE DISCHARGE CHUTE

See Figure 2.
The mower comes prepared for mulching with the spring-loaded mulching
cover already in place. If side discharge is desired, install the side discharge
chute.
 Remove start key and battery pack.
 Lift and hold the mulching cover.
 Insert the side discharge chute as shown, aligning the two notches with
 Lower the mulching cover until the tabs are seated into the notches on
 Reinstall start key and battery pack when you are ready to mow.

STARTING/STOPPING THE MOWER

See Figures 3 - 5.
 Raise the battery cover.
 Install battery pack.
 Insert the start key into the slot.
 Lower the battery cover.
 Press and hold the start button. Pull the blade control lever toward the
 To stop the mower, release the blade control lever.
FIG. 3
FIG. 5
RAISE
DOOR
post. Then, fold the handle to the front of the unit.
the tabs on each side of the mulching cover.
the side discharge chute.
handle and release the button to start the mower.
WARNING:
To avoid accidental starting that could result in serious personal injury,
always remove the start key when moving or transporting the mower.
PUSH BUTTON
FIG. 4
PULL LEVER
