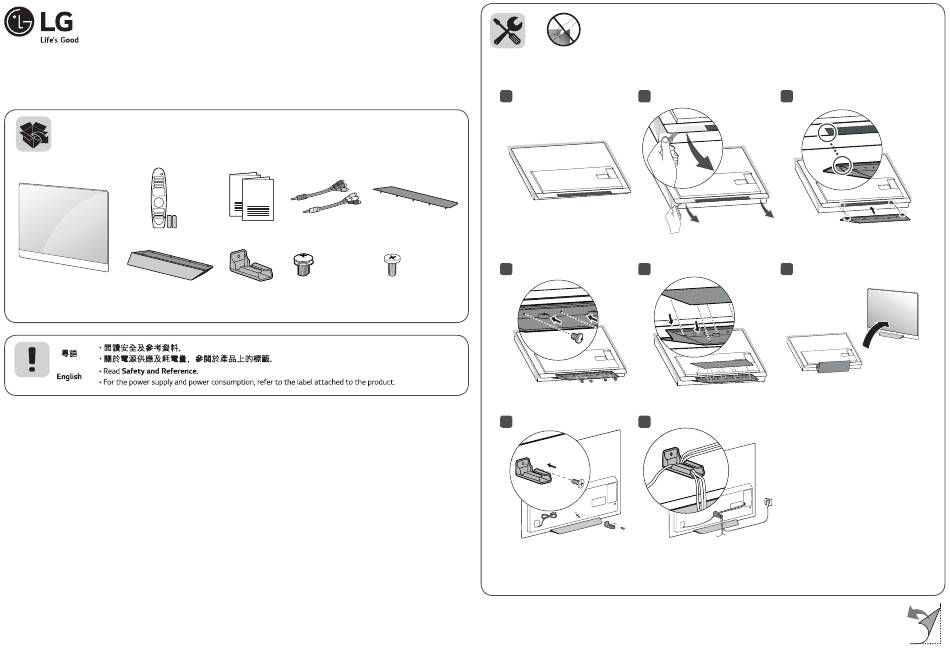

Page 20
Warning! Safety Instructions • Ventilation - Install your TV where there is proper ventilation. Do not install in a confined space such as a bookcase. - Do not install the product on a carpet or cushion. CAUTION - Do not block or cover the product with cloth or other materials RISK OF ELECTRIC SHOCK while unit is plugged in.
Page 21
• Use only an authorized attachments / accessories approved by LG Electronics. Otherwise, this may result in fire, electric shock, malfunction, or product damage. • Never disassemble the AC adapter or power cord. This may result in fire or electric shock.
Preparing Wall Mounting Bracket (Depending on model) • If the TV is turned on for the first time after it was shipped from the Make sure to use screws and wall mount bracket that meet the VESA factory, initialization of the TV may take a few minutes. standard.
Lifting and moving the TV • Avoid touching the screen at all times, as this may result in damage to the screen. • Do not move the TV by holding the cable holders, as the Please note the following advice to prevent the TV from being scratched cable holders may break, and injuries and damage to the or damaged and for safe transportation regardless of its type and size.
LG recommends that wall mounting be performed by a qualified professional installer. We recommend the use of LG’s wall mount bracket. LG’s wall mount bracket is easy to move with cables connected. When you do not use LG’s wall mount bracket, please...
Dolby Digital / Dolby Digital Plus (32 kHz, 44.1 kHz, 48 kHz), To obtain the RS-232C external control setup information, please visit www.lg.com. Download and read the manual. (Depending on model) PCM (32 kHz, 44.1 kHz, 48 kHz, 96 kHz, 192 kHz) •...
Using Button Using Magic Remote Control You can simply operate the TV functions, using the button. The descriptions in this manual are based on the buttons on the remote control. Please read this manual carefully and use the TV correctly. When the message “Magic Remote battery is low.
• Do not mix new batteries with old batteries. This may * To use the button, press and hold for more than 3 seconds. cause the batteries to overheat and leak. • Failure to match the correct polarities of the battery (POWER) Turns the TV on or off.
Troubleshooting Generated Sound • “Cracking” noise: A cracking noise that occurs when watching or turning off the TV is generated by plastic thermal contraction due Cannot control the TV with the remote control. to temperature and humidity. This noise is common for products •...
Specifications • The annual energy consumption indicated on the energy label is measured in accordance with IEC 62087 and the Hong Kong Energy Efficiency Labelling Scheme (EELS) (depending on the model). • The actual energy consumption depends on the usage environment (the content watched, TV settings, etc.). Broadcasting Specifications Digital TV Analogue TV...
• Using cabinets or stands recommended by the manufacturer of the LG Electronics will also provide open source code to you on CD-ROM television set. for a charge covering the cost of performing such distribution (such •...
Page 31
Important Information for Information on Functions Supporting Image Quality in Preventing Image Retention Relation to Temporary Image Retention OLED is a self-emissive technology, which brings many significant benefits to image quality and performance. As with any self-emitting • OLED TV offers a function called Pixel Refresher, which helps to display, it is possible for users of OLED TVs to experience temporary prevent temporary image retention.
Page 34
Record the model number and serial number of the TV. Refer to the label on the back cover and quote this information to your dealer when requiring any service. Model Serial No.
OWNER’S MANUAL EXTERNAL CONTROL DEVICE SETUP Please read this manual carefully before operating the set and retain it for future reference. www.lg.com...
KEY CODES KEY CODES • This feature is not available for all models. Code Code Function Note Function Note (Hexa) (Hexa) CH +, PR + R/C Button List R/C Button CH -, PR - R/C Button Exit R/C Button Volume + R/C Button PIP(AD) R/C Button...
Page 49
(TV) (PC) • LGTV supports PL2303 chip-based (Vendor ID : 0x0557, Product ID : 0x2008) USB to serial converter RS-232C IN which is not made nor provided by LG. (CONTROL & SERVICE) (PC) (TV) • It can be purchased from computer stores that carry accessories for IT support professionals.
Page 50
EXTERNAL CONTROL DEVICE SETUP (TV) (PC) (TV) (PC) Phone jack Type RS-232C IN • You need to purchase the phone-jack to RS-232 cable required for the connection between the PC and (CONTROL & SERVICE) (PC) (TV) the TV, which is specified in the manual. RS-232C IN (CONTROL &...
Page 51
EXTERNAL CONTROL DEVICE SETUP Communication Parameters • Baud rate : 9600 bps (UART) • Stop bit : 1 bit • Data length : 8 bits • Communication code : ASCII code • Parity : None • Use a crossed (reverse) cable. Command reference list (Depending on model) DATA...
Page 52
EXTERNAL CONTROL DEVICE SETUP Transmission / Receiving Protocol Transmission [Command1][Command2][ ][Set ID][ ][Data][Cr] [Command 1] : First command to control the TV. (j, k, m or x) [Command 2] : Second command to control the TV. [Set ID] : You can adjust the [Set ID] to choose desired monitor ID number in option menu. Adjustment range in TV is 1 to 99.
Page 53
EXTERNAL CONTROL DEVICE SETUP * Commands may work differently depending on model and signal. 01. Power (Command: k a) Ack [d][ ][Set ID][ ][OK/NG][Data][x] ► To control Power *On or Off of the set. * In case of video mute on only, TV will display On Transmission[k][a][ ][Set ID][ ][Data][Cr] Screen Display(OSD).
Page 54
EXTERNAL CONTROL DEVICE SETUP 08. Color/Colour (Command: k i) 13. Treble (Command: k r) ► To adjust the screen Color(Colour). ► To adjust treble. You can also adjust colour in the PICTURE menu. You can also adjust in the AUDIO menu. Transmission [k][i][ ][Set ID][ ][Data][Cr] Transmission [k][r][ ][Set ID][ ][Data][Cr] Data Min : 00 to Max : 64...
Page 55
EXTERNAL CONTROL DEVICE SETUP 18. Equalizer (Command : j v) * Analog Antenna/Cable ► Adjust EQ of the set. [Data 00][Data 01] Channel Data Transmission [j][v][ ][Set ID][ ][Data][Cr] Data 00 : High byte channel data Data 01 : Low byte channel data - 00 00 ~ 00 C7 (Decimal : 0 ~ 199) Data 02 : Input Source (Analog) - 00 : Antenna TV (ATV)
Page 56
EXTERNAL CONTROL DEVICE SETUP * Analog Antenna/Cable 2. Tune to the digital antenna (ATSC) channel 30-3. Set ID = All = 00 Data 00 : Physical Channel Number Data 00 = Don’t know Physical = 00 - Antenna (ATV) : 02~45 (Decimal: 2 ~ 69) Data 01 &...
Page 57
11 11 EXTERNAL CONTROL DEVICE SETUP 2. Tune to the BS (ISDB-BS) channel 30. 24. Input select (Command: x b) Set ID = All = 00 (Main Picture Input) Data 00 = Don’t know Physical = 00 ► To select input source for main picture. Data 01 &...
Page 58
EXTERNAL CONTROL DEVICE SETUP * [Data 02], [Data 03] functions depend on model 3) When [Data 00] is 06, 07 and signal. 00 : Off 01 : On * If [Data 00] is 00 (3D On), [Data 03] has no meaning.
