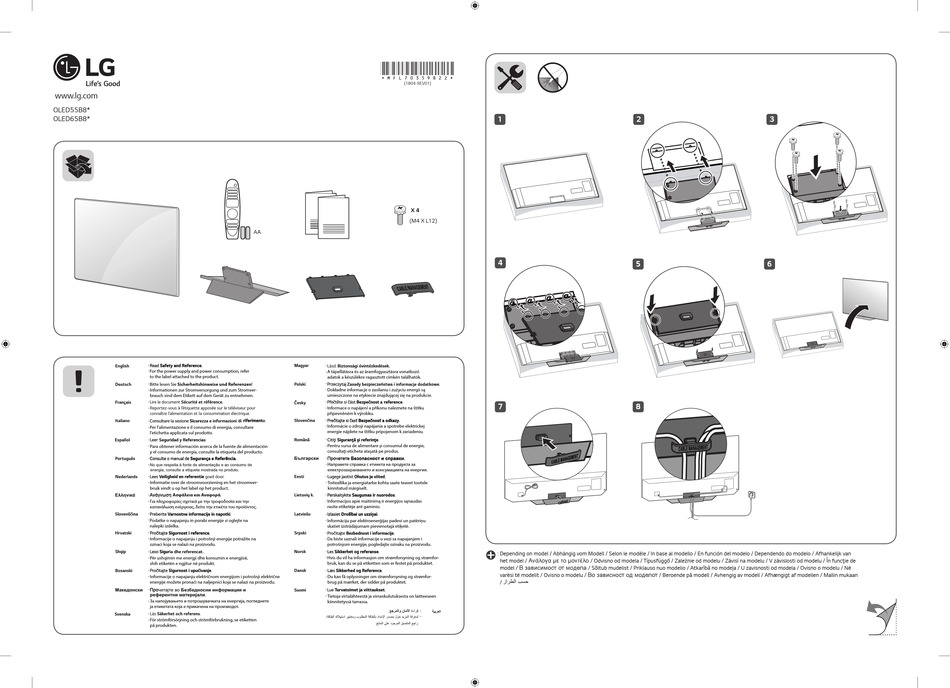

OLED55B8*
OLED65B8*
Read Safety and Reference.
For the power supply and power consumption, refer
to the label attached to the product.
Bitte lesen Sie Sicherheitshinweise und Referenzen!
Informationen zur Stromversorgung und zum Stromver-
brauch sind dem Etikett auf dem Gerät zu entnehmen.
Français
.
.
Consultare la sezione Sicur
Per l'alimentazione e il consumo di energia, consultare
l'etichetta applicata sul prodotto.
Leer
Para obtener información acerca de la fuente de alimentación
y el consumo de energía, consulte la etiqueta del producto.
Consulte o manual de Segurança e Referência.
Lees Veiligheid en referentie
Informatie over de stroomvoorziening en het stroomver-
bruik vindt u op het label op het product.
Ελληνικά
Ανάγνωση
Ασφάλεια και Αναφορά.
Για πληροφορίε σχετικά ε την τροφοδοσία και την
κατανάλωση ενέργεια , δείτε την ετικέτα του προϊόντο .
Slovenščina
Preberite Varnostne informacije in napotki.
Podatke o napajanju in porabi energije si oglejte na
nalepki izdelka.
Hrvatski
Pročitajte Sigurnost i reference.
Informacije o napajanju i potrošnji energije potražite na
oznaci koja se nalazi na proizvodu.
Lexo Sigur
Shqip
.
.
Për ushqimin me energji dhe konsumin e energjisë,
shih etiketën e ngjitur në produkt.
Pročitajte Sigurnost i upućivanje.
Informacije o napajanju električnom energijom i potrošnji električne
energije možete pronaći na naljepnici koja se nalazi na proizvodu.
Ма
П
För strömförsörjning och strömförbrukning, se etiketten
på produkten.
*MFL70359822*
(1804-REV01)
X 4
(M4 X L12)
AA
12
14
Magyar
Lásd: Biztonsági óvintézkedések.
A tápellátásra és az áramfogyasztásra vonatkozó
adatok a készülékre ragasztott címkén találhatók.
Przeczytaj
Dokładne informacje o zasilaniu i zużyciu energii są
umieszczone na etykiecie znajdującej się na produkcie.
Přečtěte si část Bezpečnost a reference.
Česky
Informace o napájení a příkonu naleznete na štítku
připevněném k výrobku.
riferiment
Slovenčina
Prečítajte si časť Bezpečnosť a odkazy.
Informácie o zdroji napájania a spotrebe elektrickej
energie nájdete na štítku pripojenom k zariadeniu.
Română
Citiţi Siguranţă şi referinţe.
Pentru sursa de alimentare şi consumul de energie,
consulta i eticheta ataşată pe produs.
Б
а
П
Б
а
а
.
Eesti
Lugege jaotist Ohutus ja viited.
Toiteallika ja energiatarbe kohta saate teavet tootele
kinnitatud märgiselt.
Lietuvių k.
Perskaitykite Saugumas ir nuorodos
Informacijos apie maitinimą ir energijos sąnaudas
rasite etiketėje ant gaminio.
Latviešu
Izlasiet Drošībai un uzziņai.
Informāciju par elektroenerģijas padevi un patēriņu
skatiet izstrādājumam pievienotajā etiķetē.
Srpski
Pročitajte Bezbednost i informacije.
Da biste saznali informacije u vezi sa napajanjem i
potrošnjom energije, pogledajte oznaku na proizvodu.
Norsk
Les Sikkerhet og referanse.
Hvis du vil ha informasjon om strømforsyning og strømfor-
bruk, kan du se på etiketten som er festet på produktet.
Dansk
Læs Sikkerhed og Reference.
Du kan få oplysninger om strømforsyning og strømfor-
brug på mærket, der sidder på produktet.
Suomi
Lue Turvatoimet ja viittaukset.
Tietoja virtalähteestä ja virrankulutuksesta on laitteeseen
,
kiinnitetyssä tarrassa.
.
1
16
20
4
7
.
: Depending on model / Abhängig vom Modell / Selon le modèle / In base al modello / En función del modelo / Dependendo do modelo / Afhankelijk van
het model / Ανάλογα με το μοντέλο / Odvisno od modela / Típusfüggő / Zależnie od modelu / Závisí na modelu / V závislosti od modelu / În funcţie de
model / В зависимост от модела / Sõltub mudelist / Priklauso nuo modelio / Atkarībā no modeļa / U zavisnosti od modela / Ovisno o modelu / Në
varësi të modelit / Ovisno o modelu / Во зависност од моделот / Beroende på modell / Avhengig av modell / Afhængigt af modellen / Mallin mukaan
/
2
3
5
6
8

Advertisement

Table of Contents
loading

Summary of Contents for LG OLED65C8 Series

  • Page 1 *MFL70359822* (1804-REV01) www.lg.com OLED55B8* OLED65B8* (M4 X L12) Read Safety and Reference. Magyar Lásd: Biztonsági óvintézkedések. For the power supply and power consumption, refer A tápellátásra és az áramfogyasztásra vonatkozó to the label attached to the product. adatok a készülékre ragasztott címkén találhatók.
  • Page 2 ANTENNA / CABLE IN Satellite IN Satellite IN Main Satellite IN HDMI IN HDMI IN/ARC USB IN COMPONENT IN AV IN OLED55B8PLA 1228 46.9 17.8 16.3 OLED55B8LLA OLED65B8PLA 1449 46.9 23.2 21.7 OLED65B8LLA OPTICAL DIGITAL AUDIO OUT AUDIO OUT/ H/P OUT...
  • Page 3 Safety and Reference Please read this manual carefully before operating your set and retain it for future reference. *MFL70379705* www.lg.com Copyright © 2018 LG Electronics Inc. All Rights Reserved. (1803-REV00)
  • Page 4 Warning! Safety Instructions • Ventilation - Install your TV where there is proper ventilation. Do not install in a confined space such as a bookcase. - Do not install the product on a carpet or cushion. - Do not block or cover the product with cloth or other materials CAUTION while unit is plugged in.
  • Page 5 • Use only an authorized attachments / accessories approved by damage the product and/or its panel. Otherwise, this may result LG Electronics. Otherwise, this may result in fire, electric shock, in electric shock or product damage. malfunction, or product damage.
  • Page 6: Separate Purchase

    Preparing Separate Purchase • If the TV is turned on for the first time after it was shipped from the Separate purchase items can be changed or modified for quality factory, initialization of the TV may take a few minutes. improvement without any notification.
  • Page 7: Lifting And Moving The Tv

    Lifting and moving the TV Wall Mounting Bracket (Depending on model) Please note the following advice to prevent the TV from being scratched Make sure to use screws and wall mount bracket that meet the VESA or damaged and for safe transportation regardless of its type and size. standard.
  • Page 8: Mounting On The Table

    Mounting on the Table • When transporting a large TV, there should be at least 2 people. • When transporting the TV by hand, hold the TV as shown in the following illustration. 1 Lift and tilt the TV into its upright position on a table. •...
  • Page 9: Mounting To The Wall

    LG recommends that wall mounting be performed by a qualified professional installer. We recommend the use of LG’s wall mount bracket. LG’s wall mount bracket is easy to move with cables connected. When you do not use LG’s wall mount bracket, please use a wall mount bracket where the device is adequately secured to the wall with enough space to allow connectivity to external devices.
  • Page 10 Connections Other connections Connect your TV to external devices. For the best picture and audio Connect various external devices to the TV and switch input modes to quality, connect the external device and the TV with the HDMI cable. select an external device. For more information of external device’s Some separate cable is not provided.
  • Page 11: Using Button

    Adjusting the menu To obtain the RS-232C external control setup information, please visit www.lg.com. Download and read the manual. (Depending on model) When the TV is turned on, press the button one time. You can adjust the Menu items using the button.
  • Page 12 Using Magic Remote * To use the button, press and hold for more than 3 seconds. Control (POWER) Turns the TV on or off. You can turn your set-top box on or off by adding the set- top box to the universal remote control for your TV. (Depending on model) Number buttons Enters numbers.
  • Page 13 •  It is recommended that an Access Point (AP) be located Returns to the previous level. more than 0.2 m away from the TV. If the AP is installed * Clears on-screen displays and returns to last input viewing. closer than 0.2 m, the Magic remote control may not Shows programme guide.
  • Page 14: Troubleshooting

    Troubleshooting Generated Sound • “Cracking” noise: A cracking noise that occurs when watching or turning off the TV is generated by plastic thermal contraction due Cannot control the TV with the remote control. to temperature and humidity. This noise is common for products •...
  • Page 15: Specifications

    Specifications Broadcasting Specifications Digital TV Analogue TV DVB-T DVB-T2 PAL/SECAM, B/G, D/K, I Television system DVB-C SECAM L DVB-S/S2 DVB-S/S2 DVB-C DVB-T/T2 VHF III : 174 ~ 230 MHz Channel coverage UHF IV : 470 ~ 606 MHz 46 ~ 862 MHz (Band) 950 ~ 2,150 MHz 46 ~ 890 MHz...
  • Page 16: Open Source Software Notice Information

    In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to opensource@lge.com.
  • Page 17 Important Information for Information on Functions Supporting Image Quality in Preventing Image Retention Relation to Temporary Image Retention OLED is a self-emissive technology, which brings many significant benefits to image quality and performance. As with any self-emitting •  OLED TV offers a function called Pixel Refresher, which helps to display, it is possible for users of OLED TVs to experience temporary prevent temporary image retention.
  • Page 19: External Control Device Setup

    OWNER’S MANUAL EXTERNAL CONTROL DEVICE SETUP Please read this manual carefully before operating the set and retain it for future reference. www.lg.com...
  • Page 20: Key Codes

    KEY CODES KEY CODES • This feature is not available for all models. Code Code Function Note Function Note (Hexa) (Hexa) CH +, PR + R/C Button List R/C Button CH -, PR - R/C Button Exit R/C Button Volume + R/C Button PIP(AD) R/C Button...
  • Page 21 (TV) (PC) • LGTV supports PL2303 chip-based (Vendor ID : 0x0557, Product ID : 0x2008) USB to serial converter RS-232C IN which is not made nor provided by LG. (CONTROL & SERVICE) (TV) (PC) • It can be purchased from computer stores that carry accessories for IT support professionals.
  • Page 22 EXTERNAL CONTROL DEVICE SETUP (TV) (PC) (TV) (PC) Phone jack Type RS-232C IN • You need to purchase the phone-jack to RS-232 cable required for the connection between the PC and (CONTROL & SERVICE) (PC) (TV) the TV, which is specified in the manual. RS-232C IN (CONTROL &...
  • Page 23 EXTERNAL CONTROL DEVICE SETUP Communication Parameters • Baud rate : 9600 bps (UART) • Stop bit : 1 bit • Data length : 8 bits • Communication code : ASCII code • Parity : None • Use a crossed (reverse) cable. Command reference list (Depending on model) DATA...
  • Page 24 EXTERNAL CONTROL DEVICE SETUP Transmission / Receiving Protocol Transmission [Command1][Command2][ ][Set ID][ ][Data][Cr] [Command 1] : First command to control the TV. (j, k, m or x) [Command 2] : Second command to control the TV. [Set ID] : You can adjust the [Set ID] to choose desired monitor ID number in option menu. Adjustment range in TV is 1 to 99.
  • Page 25 EXTERNAL CONTROL DEVICE SETUP * Commands may work differently depending on model and signal. 01. Power (Command: k a) Ack [d][ ][Set ID][ ][OK/NG][Data][x] ► To control Power *On or Off of the set. * In case of video mute on only, TV will display On Transmission[k][a][ ][Set ID][ ][Data][Cr] Screen Display(OSD).
  • Page 26 EXTERNAL CONTROL DEVICE SETUP Data Min : 00 to Max : 64 * (Depending on model) Ack [i][ ][Set ID][ ][OK/NG][Data][x] 14. Bass (Command: k s) 09. Tint (Command: k j) ► To adjust Bass. ► To adjust the screen tint. You can also adjust in the AUDIO menu.
  • Page 27 EXTERNAL CONTROL DEVICE SETUP Set ID = All = 00 5th Band 20(decimal) Data 00 & 01 = Channel Data is 10 = 00 0a Acknowledgement [v][ ][Set ID][ ][OK/NG][Data][x] Data 02 = Analog Antenna TV = 00 Result = ma 00 00 0a 00 * It depends on model, and can adjust when sound mode is EQ adjustable value.
  • Page 28 EXTERNAL CONTROL DEVICE SETUP Number Data 05 = Digital Antenna TV = 02 - 22 : Antenna TV (DTV) – Don’t Use Physical Total = ma 00 00 00 11 00 01 02 Channel Number - 26 : Cable TV (CADTV) - Don’t Use Physical 2.
  • Page 29 11 11 EXTERNAL CONTROL DEVICE SETUP 24. Input select (Command: x b) (Main Picture Input) ► To select input source for main picture. Transmission [x][b][ ][Set ID][ ][Data][Cr] Data X : don’t care 00 : DTV 01 : CADTV 02 : Satellite DTV 10 : ATV Ack [t][ ][Set ID][ ][OK][Data00][Data01][Data02] ISDB-BS (Japan)
  • Page 30 EXTERNAL CONTROL DEVICE SETUP 27. Auto Configure (Command: j u) (Depending on model) ► To adjust picture position and minimize image shaking automatically. It works only in RGB (PC) mode. Transmission [j][u][ ][Set ID][ ][Data][Cr] Data 01 : Run Auto Configure Ack [u][ ][Set ID][ ][OK/NG][Data][x]...
