Summary of Contents for twaudio QBC12

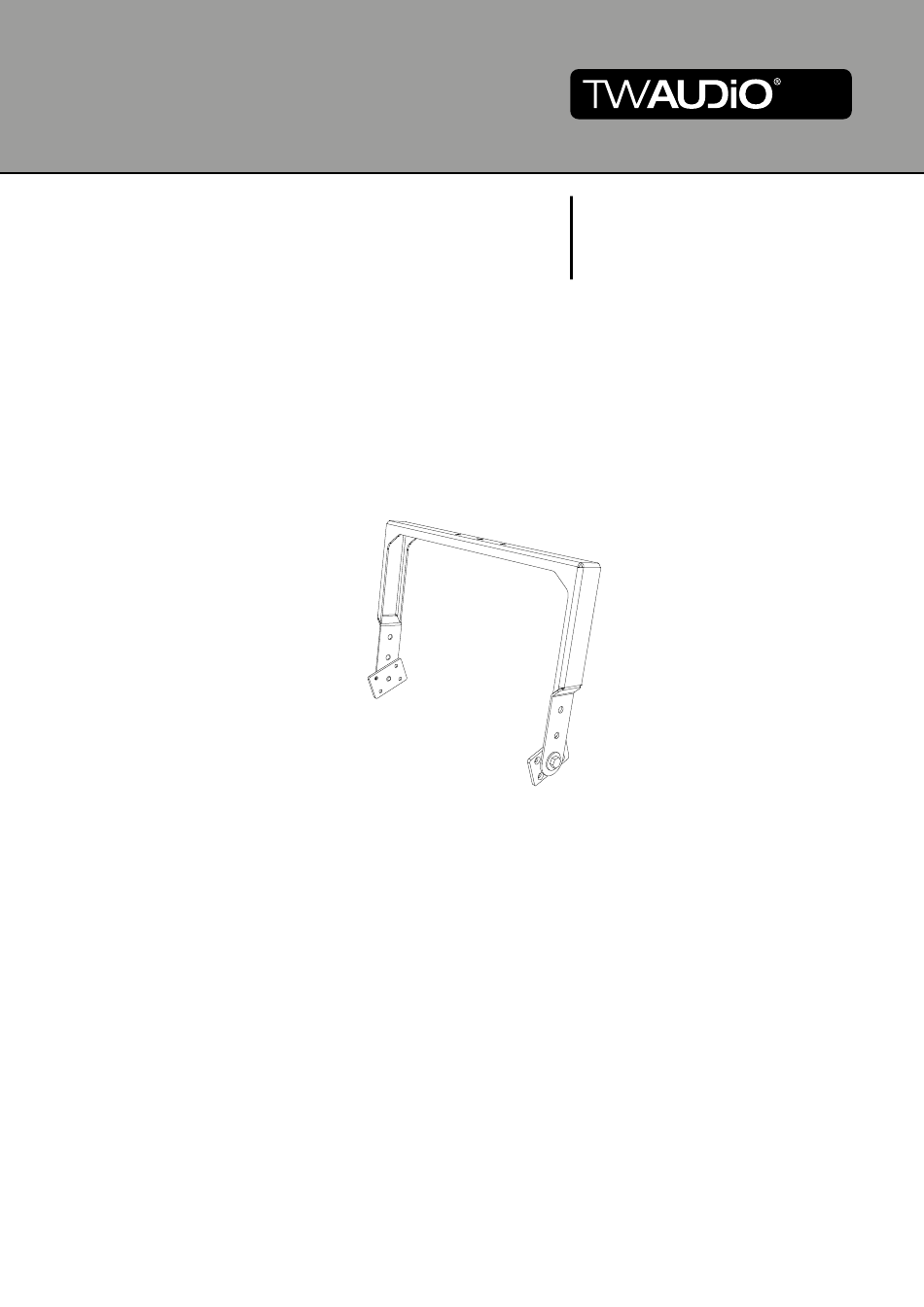

- Page 1 Assembly QBC12 Instructions...
- Page 2 If you lend your product to another party, inform that party of the safety-related operating pro- cedures and hand over this assembly guide. If you require additional copies of this manual, you can obtain them free of charge from TW AUDiO or download them from www.twaudio.de Instructions in this user manual...
- Page 3 Assembly Instructions QBC12 Notes on the products Before using the device, carefully read the assembly instructions and keep it with the Read manual QBC12 swivel bracket. before use! General information Assembly instructions: OM-QBC12 Version 2.1 en, 11/2023 © by TWAMBO 2023; all rights reserved.
-
Page 4: Table Of Contents
Removing the side countersunk screws ............10 4.4.2 Assembly QBC12 to C12 loudspeaker ............. 11 Assembly QBC12 swivel bracket to trusses, ceiling or wall ........12 Assembly QBC12 swivel bracket on tripod ............. 13 5. Transport and storage ....................14 6. -
Page 5: Safety | Intended Use
Damage caused by improper use is not covered by TWAMBO. Before every operation, check the scope of delivery of the QBC12 swivel bracket for its com- pleteness and ensure that all parts are in perfect condition. The scope of delivery includes specified components. Only use the recommended and cer- WARNING tified components. - Page 6 Assembly Instructions QBC12 The payload of the QBC12 swivel bracket is designed of one C12 loudspeaker. Do not exceed this payload. WARNING Before mounting the QBC12 swivel bracket check that e.g. ceilings, trussus and tripods are capable to carrying the payload of the components.
-
Page 7: Overview
Hexagon screw M10 x 20................2 pieces Washer (metal)....................2 pieces Rubber break washer ..................2 pieces Adaptor plate ....................2 pieces Countersunk screw M5 x 20 black ..............4 pieces Countersunk screw M5 x 40 black ..............4 pieces Swivel bracket QBC12 ..................1 piece... -
Page 8: Technical Data
Assembly Instructions QBC12 3. Technical data Data sheet Maximum load capacity 1x C12 Dimensions (h x w x d) 340 x 490 x 82mm [13.39 x 19.29 x 3,23 in] Weight 2,7 kg [5.95 lbs] Surface Powder-coated... -
Page 9: Commissioning
4. Commissioning Setup The QBC12 swivel bracket is designed for the hanging and stacking operation. TW AUDiO provides a wide range of accessories to securely attach the swivel bracket. Please note that setting up the system structures always requires two persons! -
Page 10: Assembly Qbc12 To Loudspeaker
Assembly Instructions QBC12 Assembly QBC12 to loudspeaker 4.4.1 Removing the side countersunk screws Remove the four center countersunk screws on both sides at the C12 loudspeaker as shown in Figure 4.4.1. Keep all eight countersunk screws in a safe place for re-use. -
Page 11: Assembly Qbc12 To C12 Loudspeaker
Mount positions 1 to 6 (see figure 2.1) on both sides as shown in figure 4.4.2. Note that at pos.7 (see figure 2.1) one of the side holes is used. NOTE Pos.7 Pos.5 Pos.4 Pos.6 Pos.3 Pos.2 Pos.1 Figure 4.4.2 - Assembly QBC12 to C12 loudspeaker... -
Page 12: Assembly Qbc12 Swivel Bracket To Trusses, Ceiling Or Wall
WARNING For installation purposes, attach the QBC12 swivel bracket to the ceiling or wall by using all three holes located on the crossbar. Make sure that you use suitable fastening material and... -
Page 13: Assembly Qbc12 Swivel Bracket On Tripod
Assembly Instructions QBC12 Assembly QBC12 swivel bracket on tripod Mount the C12 loudspeaker with QBC12 swivel bracket and the HSF pole mount flange on the tripod. Make sure that you use suitable fastening material and that the connections are set... -
Page 14: Transport And Storage
Assembly Instructions QBC12 5. Transport and storage When transporting and storing the unit, it is important to ensure that the surface of the swi- vel bracket are not damaged. Moisture can penetrate where steel surfaces are exposed by scratches and result in corrosion. -
Page 15: Ce Conformity Declaration
Assembly Instructions QBC12 6. CE Conformity Declaration Copy and translation of the original CE Conformity Declaration: We hereby declare that the below-referenced components by virtue of their design and con- struction, and in the configuration placed on the market by us, satisfy the safety and health requirements of the applicable EC directives. - Page 16 Assembly Instructions QBC12 TWAMBO GmbH Karl-Hofer-Str. 42 14163 Berlin Germany Phone: + 49 (0) 71 41-48 89 89 0 Fax: + 49 (0) 71 41-48 89 89 99 E-Mail: info@twaudio.de WWW: www.twaudio.de...
