End-User Manual

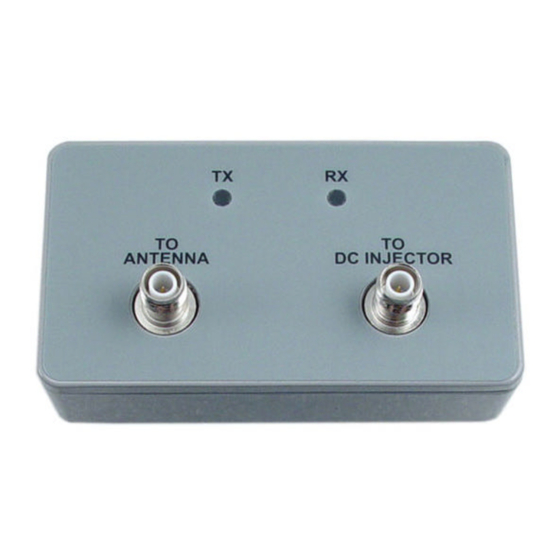

Model HA2401-XI-325
FCC ID: MYF-XI-325
IC: 2837A- XI325
Interference Statement
This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada.
Operation is subject to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation.
Warning: Changes or modifications not expressively approved by the party responsible
for compliance could void the user's authority to operate the equipment.
The term "IC:" before the radio certification number only signifies that Industry Canada
technical specifications were met.
Information to the user
NOTE: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy. If not
installed and used in accordance with the instructions, it may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try and correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the distance between the equipment and the receiver.
Connect the equipment to an outlet on a circuit different from that to which the receiver
is connected.
Consult the dealer or an experienced radio/TV technician for help.
Advertisement
Table of Contents
Related Manuals for HyperLink Technologies HA2401-XI-325
Summary of Contents for HyperLink Technologies HA2401-XI-325
- Page 1 End-User Manual Model HA2401-XI-325 FCC ID: MYF-XI-325 IC: 2837A- XI325 Interference Statement This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 2 When this device is installed either as a fixed-mount or mobile application there is a minimum required separation distance of 20 cm from users. For further information contact: Hyperlink Technologies, Inc. Technical Support Department 1201 Clint Moore Road Boca Raton, FL 33487...
- Page 3 When locating the antenna or operating this device you must observe the following exposure limits: When this device is installed either as a fixed-mount or mobile application there is a minimum required separation distance of 20 cm from users. Non-Amplified Systems: For non-amplified systems simply plug the antenna connector into the antenna port on the PC card and proceed to PC Card and Software Installation on the next page.
- Page 4 PC Card and Software Installation I. Network Configuration XI-325 is an IEEE802.11b-compliant PCMCIA Type II DSSS wireless LAN PC card. It fully supports wireless networking under Windows 95/98/2000/XP and NT 4.0. XI-325 can be operated in Ad-Hoc and Infrastructure network configurations. Ad-Hoc mode ¨...
- Page 5 the Utility icon. Utility interface will then appear and configuration can be accomplished here. IV. Using Utility to Set Up Ad-Hoc Network If wireless LAN has already been set up, simply plug in XI-325. Otherwise, set up a wireless network by taking the following steps: 1.
- Page 6 would show status for all available access points. By using this tool, it is possible to find out ESSID for the connected wireless group.On the main Utility interface, click on [Network Configuration] and configuration screen will appear. Setup procedures are as follows: 1) ESSID denotes the assigned name for the designated wireless LAN.
- Page 7 ESSID Select the wireless network group to join (“ANY” is default setting). Network Type Select the station operation mode, Ad-Hoc: (without Access Point) Infrastructure: (with Access Point, default setting). RTS Threshold To solve the “Hidden Node Problem” (Default setting : “Disable”) Network Frag Threshold To obtain better performance if XI325 Configuration...
