Peavey ED-100 Operating Manual

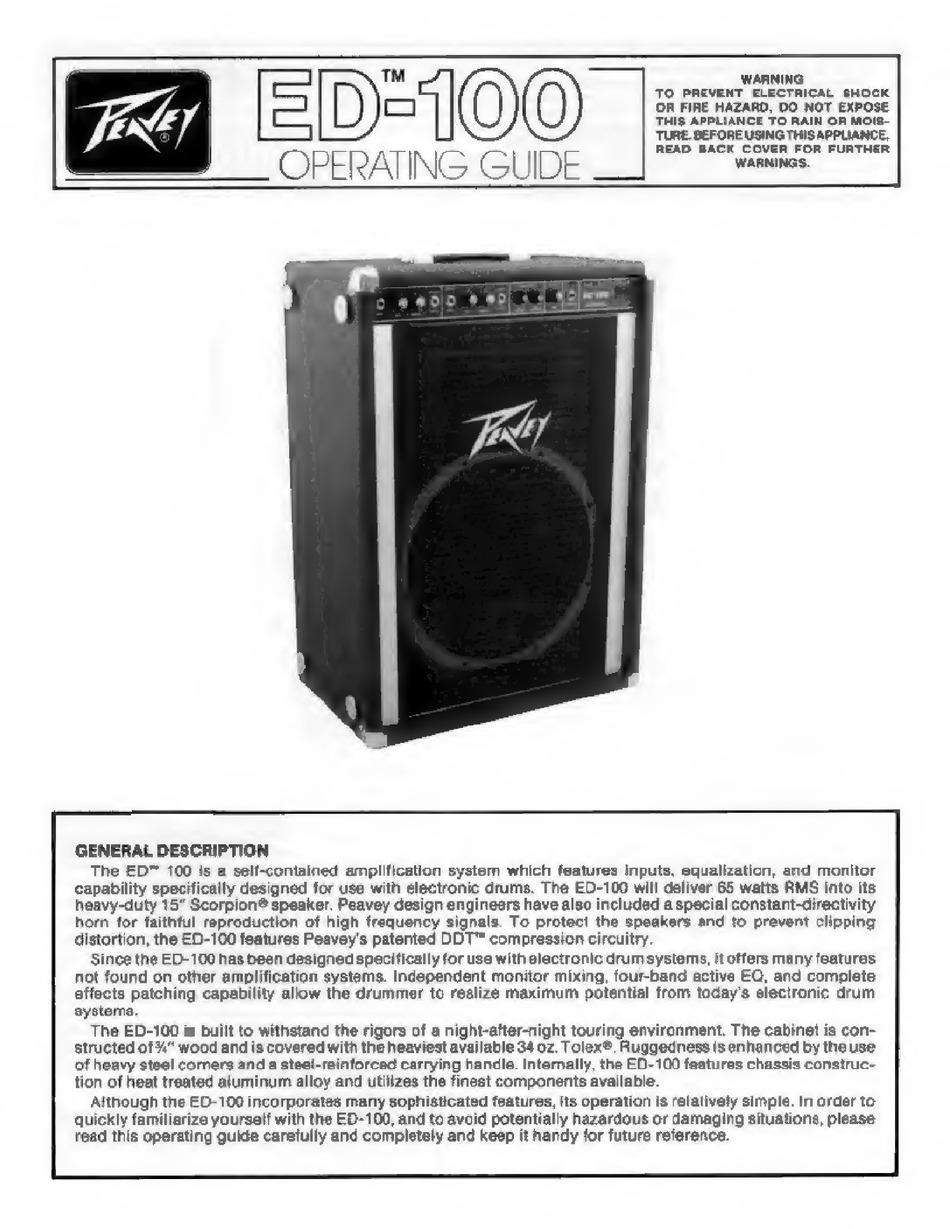

[EID-1OO
OPERATING GUIDE
READ BACK COVER FOR FURTHER
WARNINGS.
WARNING
TO PREVENT ELECTRICAL SHOCK
OR FIRE HAZARD, DO NOT EXPOSE.
THIS APPLIANCE TO RAIN OR MOIS-
'TURE. BEFORE USING THIS APPLIANCE,
GENERAL DESCRIPTION
The ED™ 100 is a self-contained amplification system which features inputs, equalization, and monitor
capability specifically designed for use with electronic drums. The ED-100 will deliver 65 watts RMS into its
heavy-duty 15" Scorpion? speaker. Peavey design engineers have also included a special constant-directivity
horn for faithful reproduction of high frequency signals. To protect the speakers and to prevent clipping
distortion, the ED-100 features Peavey's patented DDT" compression circuitry.
Since the ED-100 has been designed specifically for use with electronic drum systems, it offers many features
not found on other amplification systems. Independent monitor mixing, four-band active EQ, and complete
effects patching capability allow the drummer to realize maximum potential from today's electronic drum
systems,
The ED-100 is built to withstand the rigors of a night-after-night touring environment. The cabinet is con-
structed of%" wood and is covered with the heaviest available 34 oz. Tolex®, Ruggedness is enhanced by theuse
of heavy steel corners and a steel-reinforced carrying handle. Internally, the ED-100 features chassis construc-
tion of heat treated aluminum alloy and utilizes the finest components available.
Although the ED-100 incorporates many sophisticated features, its operation is relatively simple. In order to
quickly familiarize yourself with the ED-100, and to avoid potentially hazardous or damaging situations, please
read this operating guide carefully and completely and keep it handy for future reference.
