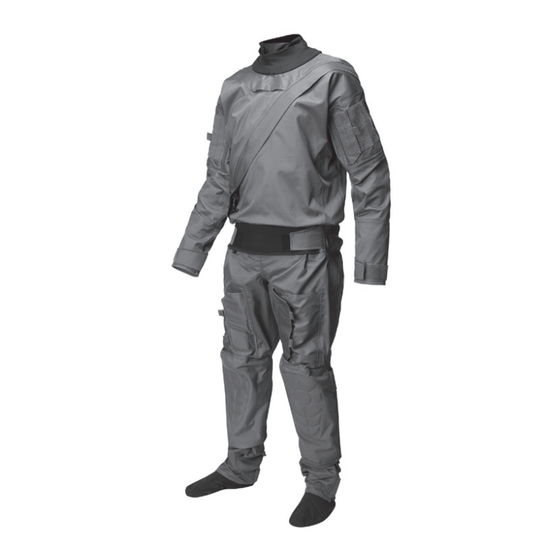

- Page 1 FOR MODEL NUMBERS MSD697 AND MSK697 SENTINEL™ SERIES/ AVIATION DRY SUIT SYSTEM Owner's Manual MOBILITY BASED SIZING™ In order to take your measurements correctly and select the appropriate size, please follow the instructions provided on our website at: www.mustangsurvival.com/mobility...
-
Page 2: Table Of Contents
Instructions For Use Fitting Dry Suit Neck and Wrist Seals Attaching Suspenders Donning and Doffing the Suit Cleaning and Maintenance Storing the Dry Suit Folding and Packing Repairs Accessories Warranty Information Contact MUSTANG SURVIVAL / SENTINEL™ SERIES AVIATION DRY SUIT SYSTEM... - Page 3 Army Aviation units as well as USCG Aviation to aid in hypothermia protection for extended over water missions in colder climates. The MSD697 is based on the Sentinel Series platform and offers a great deal of mobility and comfort. Optimizing fit, comfort and functionality are extremely important, especially when a poorly fitted suit can impede on a mission’s efficiency...
- Page 4 Every Sentinel™ Series Aviation Operations Dry Suit produced by Mustang is leak tested to ensure waterproof integrity prior to leaving our factory. All suits are 100% tested to ensure the highest level of reliability and performance. MUSTANG SURVIVAL / SENTINEL™ SERIES AVIATION DRY SUIT SYSTEM...
-
Page 5: Msl601 Sentinel™ Series Dry Suit Liner
• Dry suit liner’s lower back, arms and legs are made from Polartec® Power Stretch fleece. • Will work with all Mustang Survival Dry Suits, but is specifically designed to optimize the performance of the Sentinel™ Series lightweight and heavy duty dry suits... -
Page 6: Sizing Guide
DOUBLE TRIPLE EXTRA EXTRA LENGTH SMALL MEDIUM LARGE 1 LARGE 2 EXTRA EXTRA SMALL LARGE LARGE LARGE XXLS 3XLS SHORT REGULAR XXLR 3XLR XXLL 3XLL LONG MUSTANG SURVIVAL / SENTINEL™ SERIES AVIATION DRY SUIT SYSTEM... -
Page 7: Instructions For Use
INSTRUCTIONS FOR USE FITTING DRY SUIT NECK AND WRIST SEALS This manual supplies instructional, maintenance and safety information for the Sentinel™ Series Aviation Dry Suit. CCS™ ADJUSTABLE NECK SEAL Mustang’s patented Closed Comfort System CCS™ can be worn loose to provide comfort out of the water and can quickly be drawn tight to keep the water out. - Page 8 3. Check for fit and if necessary repeat steps 1 & 2 until there is a proper fit. 4. After trimming seals, have the user don the suit to determine seal restriction and water-sealing characteristics. Make any additional adjustments to the seal. MUSTANG SURVIVAL / SENTINEL™ SERIES AVIATION DRY SUIT SYSTEM...
-
Page 9: Attaching Suspenders
ATTACHING SUSPENDERS To attach suspenders please follow the instructions below. The removable suspenders can be used to improve fit, lower in-water resistance and reduce fatigue. Suspenders can be adjusted to a comfortable and secure position. 1. Completely unzip the entry zipper. 2. - Page 10 1. Ensure that the Velcro® wrist covers and ankle covers are unfastened. 2. Ensure waist adjusters are loosened. 3. Ensure that the waterproof entry zipper is fully opened. 4. Ensure the suspenders are pulled out of the suit legs. MUSTANG SURVIVAL / SENTINEL™ SERIES AVIATION DRY SUIT SYSTEM...
- Page 11 DONNING THE SUIT Slide your legs into the suit until your toes reach the end of the socks. 2 Don the suspenders. Ensure they are crossed in back but not twisted. 3 Apply dusting powder inside wrist seals. 4 Place the right arm into the right sleeve. 5 Carefully place the right hand into the right cuff by pointing the fingers straight, tucking the thumb underneath and inserting the hand through the seal.
- Page 12 CAUTION: PLACING UNDUE FORCE ON THE ZIPPER MAY DAMAGE THE SEAL AND HARM THE INTEGRITY OF THE SUIT. NEVER FORCEFULLY YANK ON THE ZIPPER. NOTE: IF WEARING SUSPENDERS, REMOVE SUSPENDERS PRIOR TO PROCEEDING MUSTANG SURVIVAL / SENTINEL™ SERIES AVIATION DRY SUIT SYSTEM...
-
Page 13: Cleaning And Maintenance
CLEANING AND MAINTENANCE CLEANING 1. Thoroughly rinse your dry suit after every use. CAUTION: DO NOT DRY CLEAN. DO NOT IRON. DO NOT BLEACH. 2. Treat stains with a pre-wash treatment such as Shout ® Spray ‘n Wash . Follow the manufacturer’s instructions. Rinse well. ®... - Page 14 CAUTION: DO NOT LUBRICATE THE ZIPPER TEETH. NOTE: DO NOT DISCARD THE BLISTER PACKAGE OR PLASTIC TUBE. THE ZIPPER LUBRICANT CAN BE STORED IN THE ZIPLOCK BAG AND REUSED. W-SEAL LUBRICATIONS FIGURE 7 FIGURE 8 LOCATIONS MUSTANG SURVIVAL / SENTINEL™ SERIES AVIATION DRY SUIT SYSTEM...
-
Page 15: Storing The Dry Suit
STORING THE DRY SUIT 1. Apply dusting powder to LATEX seals for long-term storage. 2. Hang the dry suit with all zippers closed. FOLDING AND PACKING 3. Ensure that the suit is thoroughly clean and dry and that the main entry zipper is in the closed position before folding and packing. -
Page 16: Repairs
SENTINEL™ DRY SUIT LINER (PART # MSL601vGB ) YKK ZIPPER LUBRICANT (PART # MA0094) SENTINEL™ SERIES BASE LAYERS (MSL602/603/604/605/606) INFLATABLE MITS (MA7149) For more information on these items please visit www.mustangsurvival.com MUSTANG SURVIVAL / SENTINEL™ SERIES AVIATION DRY SUIT SYSTEM... -
Page 17: Warranty Information
Mustang Survival at no charge to the Customer. The only obligation or liability of Mustang Survival under this limited warranty is to repair or replace the product and Mustang Survival shall not, under any circumstances be liable for loss of use or any consequential damages sustained by the Customer. - Page 18 MUSTANG ENGINEERED For 55 years Mustang Survival has been engineering high-performance marine gear for military, coast guard, and rescue personnel. With a focus on applied research and field-testing, we’re committed to the protection and enhancement of those who push themselves to extremes. We build gear that saves lives and fuels exploration.
