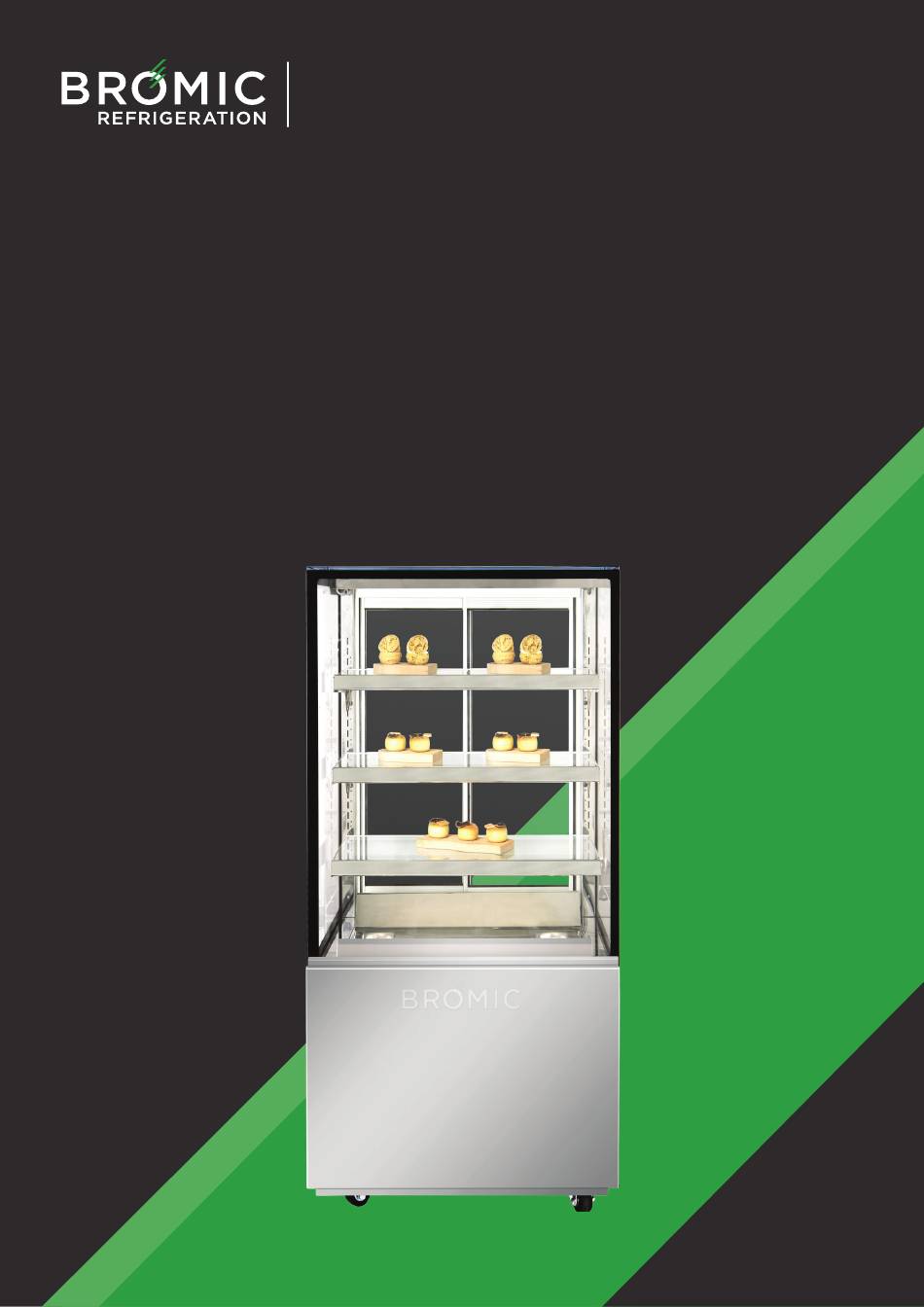

- Page 1 Confidence and control. INSTRUCTION MANUAL HOT & AMBIENT FOOD DISPLAYS 3736300, 3736301, 3736302, 3736303, 3736312 3736304, 3736305, 3736306, 3736307 REVISION 2 | 10/07/2023...
-
Page 3: Table Of Contents
CONTENTS 1. PREFIX 2. IMPORTANT NOTES & WARNINGS 3. PRODUCT OVERVIEW 4. INSTALLATION 5. OPERATION 6. PRODUCT LOADING AND STORAGE 7. TROUBLESHOOTING 8. OPTIONAL ACCESSORIES 9. ENVIRONMENTAL & DISPOSAL NOTES 10. WARRANTY Note: Bromic Refrigeration reserves the right to make changes to specifications, parts, components and equipment without prior notification. This Installation, operation and service manual may not be reproduced in any form with prior written consent from Bromic Refrigeration. -
Page 4: Prefix
1. PREFIX This manual contains important information about the installation, operation, and maintenance of Bromic Food Display units. Please pay close attention to the important safety information shown throughout this instruction manual. Any safety information will be accompanied by the following safety alert symbols: DANGER, WARNING,... -
Page 5: Important Notes & Warnings
2. IMPORTANT NOTES AND WARNINGS • Read all instructions before installing or using this appliance • Retain this manual for future reference • Use this appliance only as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock or injury. •... -
Page 6: Product Overview
3. PRODUCT OVERVIEW HOT DISPLAYS FD4T0660H FD4T0900H FD4T1200H FD4T1500H FD4T1800H Part Number 3736312 3736304 3736305 3736306 3736307 Height, mm 1360 1360 1360 1360 1360 External Dimension Width, mm 1200 1500 1800 Depth, mm Capacity Litres Weight Net Volume Litres Air Circulation... - Page 7 AMBIENT DISPLAYS FD4T0900A FD4T1200A FD4T1500A FD4T1800A Part Number 3736300 3736301 3736302 3736303 Height, mm 1360 1360 1360 1360 External Dimension Width, mm 1200 1500 Depth, mm Capacity Litres Weight Exterior Material Stainless Steel Stainless Steel Stainless Steel Stainless Steel Interior Material Stainless Steel Stainless Steel Stainless Steel Stainless Steel Voltage, V...
-
Page 8: Installation
4. INSTALLATION Locating the Cabinet Ensure the following instructions are observed as this is vital for proper and trouble-free operation. • Do not install the cabinet outdoors. • Locate the appliance in a dry and well ventilated place. • The unit must be positioned on a level surface. •... -
Page 9: Operation
5. OPERATION Start-up • Connect the appliance to the mains power supply and turn on the main switch (blue) by flipping it upward. • Switch on the Heating (for Warm showcase) and Lighting switches, and check that the fan (for Warm showcase) and lighting are working correctly. •... -
Page 10: Product Loading And Storage
6. PRODUCT LOADING AND STORAGE IMPORTANT: Run the appliance for at least 1 hours before loading. WARNING: WARNING: Never store explosive substances such as aerosol cans with a flammable propellant inside the appliance. Start-up • Clean the interior surface with a soft cloth and warm water before loading. •... - Page 11 Lighting • The Food Display Cabinet is fitted with three LED lights. Step by step guide for changing LED light fixture in the Food Display unit Here are the steps you need to take to start saving with the installation of LED light fixture. •...
-
Page 12: Troubleshooting
8. TROUBLESHOOTING IMPORTANT: Repairs on the unit must be carried out by an authorised and licensed person only. Contact the manufacturer or an approved service agent for any repairs needed. Symptom Possible Cause(s) Unit does not turn A. No power supply A. -
Page 13: Optional Accessories
9. OPTIONAL ACCESSORIES Food display cabinet is supplied with pre-installed shelving. Below can be used as optional alternative accessories. Wired Shelves • Wire shelves – unit is supplied with 3 glass shelves as default configuration, which can be replaced with wire shelves. Each shelf is a different length and requires two (2) wire shelf inserts. -
Page 14: Environmental & Disposal Notes
10. ENVIRONMENTAL AND DISPOSAL NOTES These refrigerated cabinets are designed to high standards of environmental protection and recycling convenience. Cyclopentane, an environmentally friendly foaming agent, has been used. Cyclopentane is distinguished by zero ozone depletion potential (ODP) and zero global warming potential (GWP). The refrigerant used and contained within a hermetically tight circuit is environmentally friendly and does not contain chlorine and zero ODP. -
Page 15: Warranty
11. WARRANTY All Bromic products are manufactured to the highest quality standard and are supported by our Extra Care Service Warranty, including guarantees against any material or workmanship defects; guarantees that cannot be excluded under Australian Consumer Law. Warranty Terms vary across the range. Please ensure you are familiar with the Terms and Conditions that apply to the purchase of your Bromic product by referring to the Warranty Policy included with your purchased product. - Page 16 HOW TO PLACE A SERVICE REQUEST • Please call 1300 276 642 to place a warranty service request and let the operator know whether you need Priority A or B service. More information can be found below. • Ensure you have the serial number of your product ready before contacting us. •...
- Page 17 bromicrefrigeration.com.au 1300 276 642...
- Page 18 BROMIC REFRIGERATION 10 Phiney Place, Ingleburn (Sydney) NSW 2565 Australia T. 1300 276 642 For further product information bromicrefrigeration.com.au...
