Sealey SSG2.V3 Instructions

thank you for purchasing a sealey product. manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
refer to
Wear eye
instruction
protection
manual
1. safety
familiarise yourself with the application and limitations, as well as the potential hazards of the spray gun.
9
Warning! disconnect the spray gun from the air supply before changing accessories, servicing or performing any maintenance.
‰
9 9 maintain the spray gun in good condition (use an authorised service agent).
9
9
replace or repair damaged parts. Use recommended parts only. Unauthorised parts may be dangerous and will invalidate the
9
warranty.
locate the spray gun in a suitable work area, keep area clean and tidy and free from unrelated materials, and ensure that there is
9
adequate ventilation and lighting.
Keep the spray gun clean for best and safest performance.
9
ensure the air system has sufficient output for the spray gun air consumption (see specification).
9
9 9 Wear approved respiratory protection, eye protection and skin protection.
9
9
remove ill fitting clothing. remove ties, watches, rings and other loose jewellery and tie back long hair.
9
Keep children and unauthorised persons away from the work area.
9
When gun is not in use ensure the air supply is disconnected.
9
9 9 Avoid unintentional operation.
9
9
9 9 do not paint were there is any source, or possible source, of ignition as paint mist is extremely flammable.
9 8
9 9 do not point spray gun at yourself or at other persons or animals.
9 8
9 9 do not carry the by the air hose, or yank the hose from the air supply.
9 8
9 9 do not use the spray gun for any purpose other than for which it is designed.
9 8
9 9 do not allow untrained persons to operate the spray gun.
9 8
9 9 do not get the spray gun wet or use in damp or wet locations or areas where there is condensation.
9 8
9 9 do not operate gun if any parts are missing or damaged as this may cause failure and/or personal injury.9
9 8
9 9 do not direct air from the air hose at yourself or others.
9 8
2. introduction
ideal for applying undercoat, adhesives and primers. features adjustable paint flow and fan width controls. supplied with aluminium screw type
suction feed pot. suitable for use with water based paints. Alternative set-ups available separately.
3. specification
model no: ....................................................................ssG2.V3
standard set-up: .............................................................1.5mm
Available set-ups: ..................................1.2, 1.8, 2, 2.2, 2.5mm
Air pressure: ..................................................................... 60psi
Air consumption: ................................................................4cfm
Pot capacity: ....................................................................800ml
4. air supply
4.1. for recommended hook-up, see fig.1. ensure the air valve is in the "off" position before connecting to the air supply.
4.2. You will require an air supply capable of providing a pressure 60psi and an air volume of 11cfm to operate the gun.
Warning! Ensure the air supply is clean and is regulated to a maximum of 60psi. Too high an air pressure and unclean
‰
air will shorten the life of the gun due to excessive wear and may be dangerous, causing damage and/or personal injury.
4.3. drain the air supply tank and pressure regulator daily. Water in the air line will damage the gun and contaminate the paint.
4.4. clean the compressor air inlet filter weekly.
4.5. line pressure should be increased to compensate for unusually long air hoses (over 8 metres). the minimum hose diameter should be
10mm (3/8") i.d. and fittings must have the same inside dimensions.
4.6. Keep hose away from heat, oil and sharp edges. check hoses for wear, and make certain that all connections are secure.
© Jack sealey limited

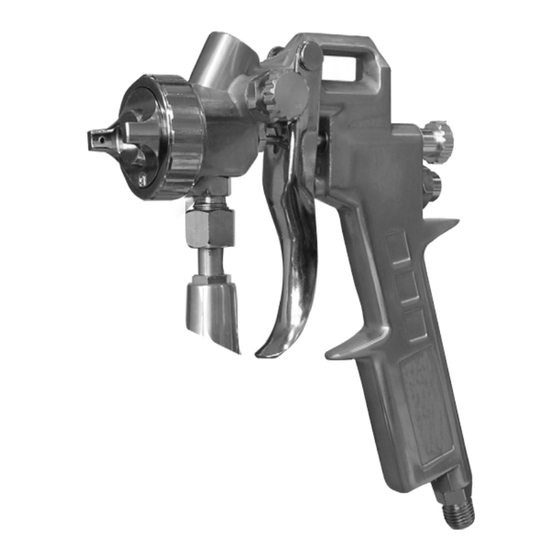

instructions for
spray gun suction feed
general purpose 1.5mm set up
model no:
Wear
Wear
protective
respiratory
clothing
protection
Original Language Version
ssg2.V3
fig.1
ssG2.V3| issue 1 26/09/17
