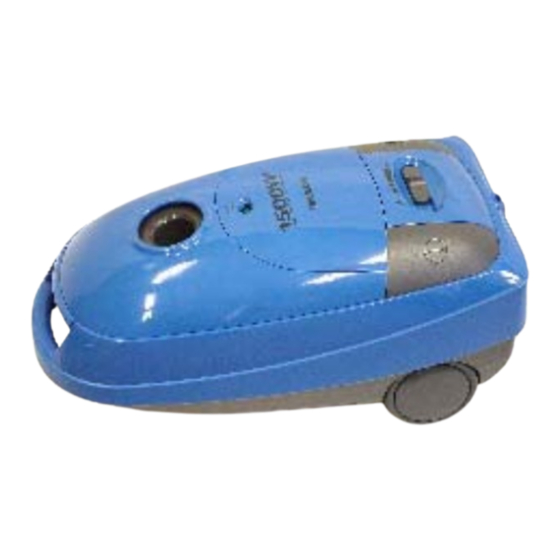

Daewoo RC-4085BLBA Service Manual
  1. Manuals
  2. Brands
  3. Daewoo Manuals
  4. Vacuum Cleaner
  5. RC-4085BLBA
  6. Service manual

Daewoo RC-4085BLBA Service Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Service Manual
Vacuum Cleaner
Model: RC-4085BLBA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RC-4085BLBA and is the answer not in the manual?

Questions and answers

Related Manuals for Daewoo RC-4085BLBA

Summary of Contents for Daewoo RC-4085BLBA

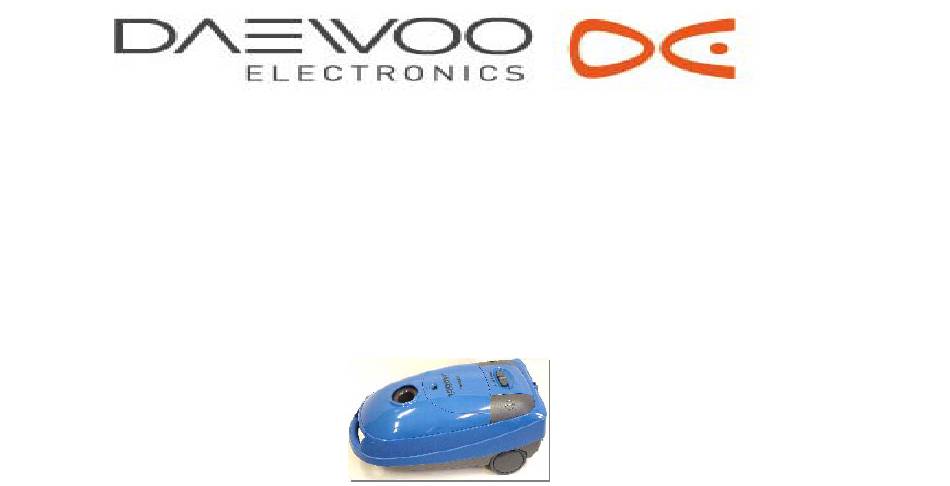

  • Page 1 Service Manual Vacuum Cleaner Model: RC-4085BLBA...

  • Page 2: Specifications

    1. SPECIFICATIONS MODEL RC-4085B RATED VOLTAGE/FREQUENCY 230V/50Hz INPUT WATT NOR(1100W) MAX(1300W) WEIGHT(BODY) 3.7Kg DIMENSION(LHD) 482 X 272 X 223KΩ CORD LENGTH POWER CONTROL ON/OFF DUST METER MECHANICAL HOSE NON-CURRENT 1.6m 2 PLASTICS EXTENSION PIPE BRUSH NORMAL SUCTION BRUSH NOZZLE DUSTING BRUSH CREVICE NOZZLE...

  • Page 3: External Views

    2. EXTERNAL VIEWS 1. ASSEMBLY MODEL PART NAME RC-4085B A - DUST METER B - CREVICE NOZZLE C - DUSTING BRUSH D - SWITCH BUTTON E - CORD REWIND BUTTON F - POWER CORD G - HOSE ASSY H - NORMAL BRUSH I-1 - EXTENSION PIPE (2 Plastic Tubes) I-2 - EXTENSION PIPE (Steel Telescopic Tube) POWER CONTROL...
  • Page 4 3. WIRING DIAGRAM MODEL : RC-4085B...
  • Page 5 2. CIRCUIT DIAGRAM MODEL : RC-4085B...

  • Page 6: Troubleshooting Guide

    4. TROUBLE SHOOTING GUIDE T R O U B L E C A U S E C O U N T E R M E A S U R E S U C T I O N P O W E R F I L T E R B A G ( P A P E R O R C L O T H ) C H A N G E I T W I T H N E W O N E IS W E A K...

  • Page 7: Disassembling And Treatment

    5. DISASSEMBLING AND TREATMENT 1. CLEANER ASSEMBLY 1) TAKE THE COVER TOP OUT OF THE COVER BODY BY USING AN AWL. 2) SEPARATE THE COVER DUST ASSEMBLY FROM THE COVER BODY. 3) UNSCREW THE 6 SCREWS(2) THEN LIFT THE COVER BODY UP FROM THE BODY ASSEMBLY. 4) SEPARATE THE TWO BUTTONS FROM THE COVER BODY.

  • Page 8: Motor Assembly

    DISASSEMBLING AND TREATMENT 2. MOTOR ASSEMBLY 1) TAKE THE MOTOR ASSEMBLY OUT OF THE BODY. 2) CHECK THE MOTOR(1) (WHETHER THE MOTOR IS BURNT OUT OR NOT).
  • Page 9 DISASSEMBLING AND TREATMENT 3. CORD FREEL ASSEMBLY 1) TAKE THE CORD REEL OUT OF THE BODY. 2) UNSCREW THE SCREW(18) AND SEPARATE THE BOBBIN(1) FROM THE BRACKET(10) AND CHECK THE CONTACTS BETWEEN THE Y TYPE TERMINALS AND THE RING TYPE TERMINALS(3, 4). 4) CHECK THE LEVER SPRING(17).

  • Page 10: Cover Dust Assembly

    DISASSEMBLING AND TREATMENT 4. COVER DUST ASSEMBLY 1) UNSCREW THE 6 SCREW(10) AND SEPARATE THE PLATE COVER(1) FROM THE COVER DUST(7). 2) UNSCREW THE 2 SCREW(4) AND SEPARATE THE SOCKET(3) FROM THE PLATE COVER(1).
  • Page 11 DISASSEMBLING AND TREATMENT RC-4085B 1) CHECK THE CONNECTIONS BETWEEN THE C/R ASSY AND HARNESS(3). 2) CHECK THE SWITCH(4).
  • Page 12 EXPLODED VIEW AND PARTS LIST RC-4085B PART NAME PART CODE SPECS. BODY AS 3620408900 ASSY ASSY MOTOR 3962511400 230V 1100W VH111CA010 CORD REEL AS 3629507300 ASSY PCB AS 3624304710 ON/OFF PCB COVER AS 3621426100 ASSY FILTER BOX AS 4569C21000 ASSY HOLDER FILTER AS 3623001700 SCREW TAPPING...
  • Page 13 EXPLODED VIEW AND PARTS LIST 2. MOTOR ASSEMBLY PART NAME PART CODE SPECS. MOTOR UNIVERSAL 3962511400 230V 1100W VH111CA010 ABSORBER MOTOR 4569C10071 PU FOAM CAP MOTOR F 4565T20040 NR FORM MOUNT MOTOR 3627900201...
  • Page 14 EXPLODED VIEW AND PARTS LIST 2) RC-4085B (36295077300) PART NAME PART CODE SPECS. BOBBIN 4569C35011 HOLDER TERMINAL 4565A36020 PC(V-0) TERMINAL 4565A36024 C2600P-1/2H T0.3 TERMINAL 4565A36034 C2600P-1/2H T0.3 CORD POWER 3621302500 250V 16A H05VVH2F TA-17 SCREW TAPPING 7121301411 T2S PAN 3 X 14 MFZN SHAFT CR 4569C35051 SPRING AS...
  • Page 15 EXPLODED VIEW AND PARTS LIST 2) RC-4085B (3621426100) PART NAME PART CODE SPECS. COVER BODY 3621423700 COVER DUST AS 3621423600 ASSY HARNESS 3622711700 3P HOUSING + 187RE PUSH SWITCH 3629002000 DPC 1114 SPRING BUTTON 3625108400 HSW3 BUTTON SWITCH 3626605000 BUTTON CR 3626605100 COVER TOP(F) 3621424100...

  • Page 16: Hose Assembly

    EXPLODED VIEW AND PARTS LIST 6. HOSE ASSEMBLY (3623207400) PART NAME PART CODE SPECS. PIPE ADAPTER 3629102000 HOSE 3623207500 EVA, 1.6m HOLDER HOSE 4569A71021 PIPE HOSE 3624408200 VALVE AIR 3625400400 CUFF HOSE 3620800200 LDPE PACKING HOSE 3624005900 SPONGE...
  • Page 17 7. PIPE ASSEMBLY RC-4085B (3624412220) PART NAME PART CODE SPECS. PIPE EXTENSION 3624408500 HOLDER PIPE 3623001900 SCREW TAPPING 7121401411 T2S PAN 4 X 14 MFZN...

  • Page 18: Brush Assembly

    EXPLODED VIEW AND PARTS LIST 8. BRUSH ASSEMBLY (3629307300)
  • Page 19 EXPLODED VIEW AND PARTS LISTf PART NAME PART CODE SPECS. BODY BRUSH 4560F90010 COVER BRUSH 4560F90080 ROLLER BRUSH 4560F90020 PIN BRUSH 4560F90110 SWRM ROLLER BRUSH 4560F90090 PIN ROLLER 4560F90120 SWRM HOLDER BRUSH AS 4568B91001 ASSY LEVER BRUSH 4560F90040 SPRING 4568B90050 HSW 3 PIPE BRUSH 3624408300...
