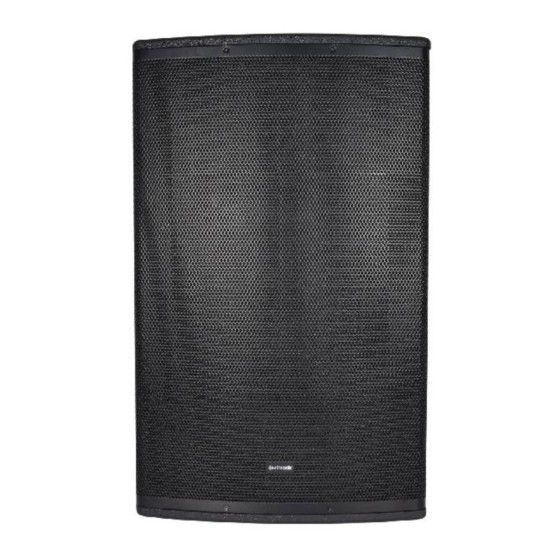

- Page 1 CUBA Active Wooden Speaker Cabinets with Bluetooth® Item ref: CUBA-8A 178.708UK CUBA-10A 178.710UK CUBA-10AW 178.740UK CUBA-12A 178.712UK CUBA-15A 178.715UK User Manual Version 1.0 Caution: Please read this manual carefully before operating Damage caused by misuse is not covered by the warranty...
- Page 2 Introduction Thank you for choosing a CUBA active speaker cabinet as part of your sound system. This product is designed to provide flexible, powerful and efficient output for a wide range of sound reinforcement applications. Please read this manual to achieve optimum performance from your speaker cabinet and avoid damage through misuse.
- Page 3 Rear panel layout DSP tone profile setting indicators LINE A input L+R RCA sockets MIC/LINE B input XLR/jack socket MIX OUT line output XLR POWER on/off switch Bluetooth & amp status indicators DSP tone profile rotary selector Bluetooth on/off & pairing button LINE A input &...
- Page 4 Operation With both volume controls turned fully down, switch on the power (5) to the CUBA speaker cabinet. The red power LED (6) will light to confirm powering up. If a smart phone is paired with the CUBA cabinet, make sure that the Bluetooth receiver is switched on (8) and play a track from the smart phone to test the speaker, turning up the level control (9) gradually.
- Page 5 Specifications Model CUBA-8A CUBA-10A (+W) CUBA-12A CUBA-15A Power supply 230Vac, 50Hz (IEC) Main driver 200mmØ (8“) 250mmØ (10“) 300mmØ (12“) 380mmØ (15“) Voice coil 50mmØ (2“) 50mmØ (2“) 64mmØ (2.5“) 64mmØ (2.5“) HF driver 35mm (1.35“) Ti CD 35mm (1.35“) Ti CD 35mm (1.35“) Ti CD 44mm (1.75“) Ti CD Power: rms...
