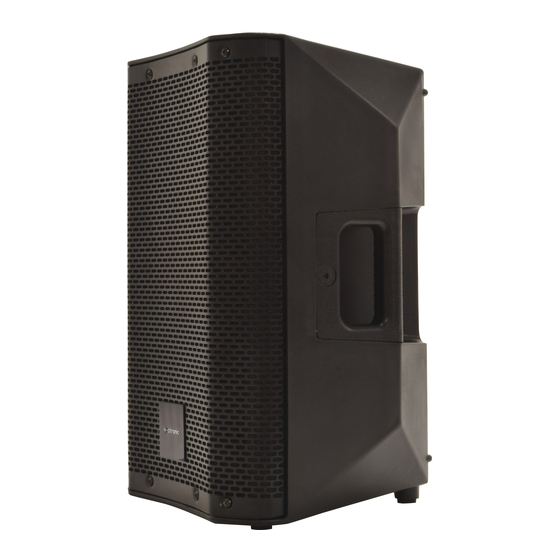

- Page 1 CASA Active Speaker Cabinets Item ref: CASA-8A 178.108UK CASA-10A 178.110UK CASA-12A 178.112UK User Manual Version 1.0 Caution: Please read this manual carefully before operating Damage caused by misuse is not covered by the warranty...
- Page 2 Introduction Thank you for choosing a CASA active speaker cabinet as part of your sound system. This product is designed to provide flexible, powerful and efficient output for a wide range of sound reinforcement applications. Please read this manual to achieve optimum performance from your speaker cabinet and avoid damage through misuse.
- Page 3 Amplifier status LEDs DSP rotary selector RCA/LINE A/MEDIA volume control Input B MIC/LINE level selector MIC/LINE B volume control Power on/off switch CASA-8A / CASA-10A USB port SD card slot Media player controls GUITAR/MIC IN volume control Amplifier status LEDs...
- Page 4 The CASA-8A, CASA-10A and CASA-12A cabinets have an inbuilt DSP which has 5 optimal settings for different types of input or audio program material: Normal / DJ / Voice / Live / Flat. Although quite self-explanatory, it is worth experimenting with each profile to find the ideal EQ and tone response for each application.
- Page 5 Media player CASA-8A, CASA-10A and CASA-12A cabinets each have a media player section at the top of the rear control panel. The output of the media player is controlled by the RCA/LINE A/ MEDIA volume control (13) or AUX/MEDIA volume control (30) Six buttons beneath the display control the media player, as described below.
- Page 6 Specifications Model CASA-8A CASA-10A CASA-12A Main driver 200mmØ (8“) 250mmØ (10“) 300mmØ (12“) Voice coil 50mmØ (2“) 50mmØ (2“) 75mmØ (2.5“) Power: rms 200W 220W 280W Power: max. 400W 440W 600W Power: peak 800W 880W 1120W Sensitivity 94dB 94dB 96dB...
