Operating Manual
Connection Set for Air Brake Bleeding Device
51808

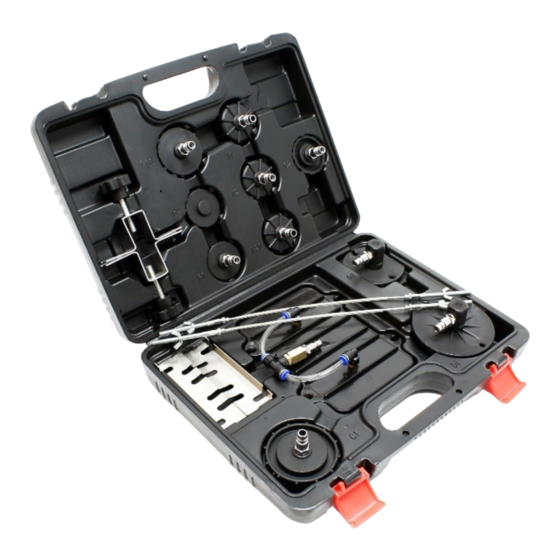

Illustration similar, may vary depending on model
Read and follow the operating instructions and safety information prior to initial operation.
Technical changes reserved!
Illustrations, functional steps, and technical data may deviate insignificantly due to continuous further
developments.
Updating the documentation
If you have suggestions for improvement or have found any irregularities, please contact us.
Advertisement
Related Manuals for XPOtool 51808
Summary of Contents for XPOtool 51808

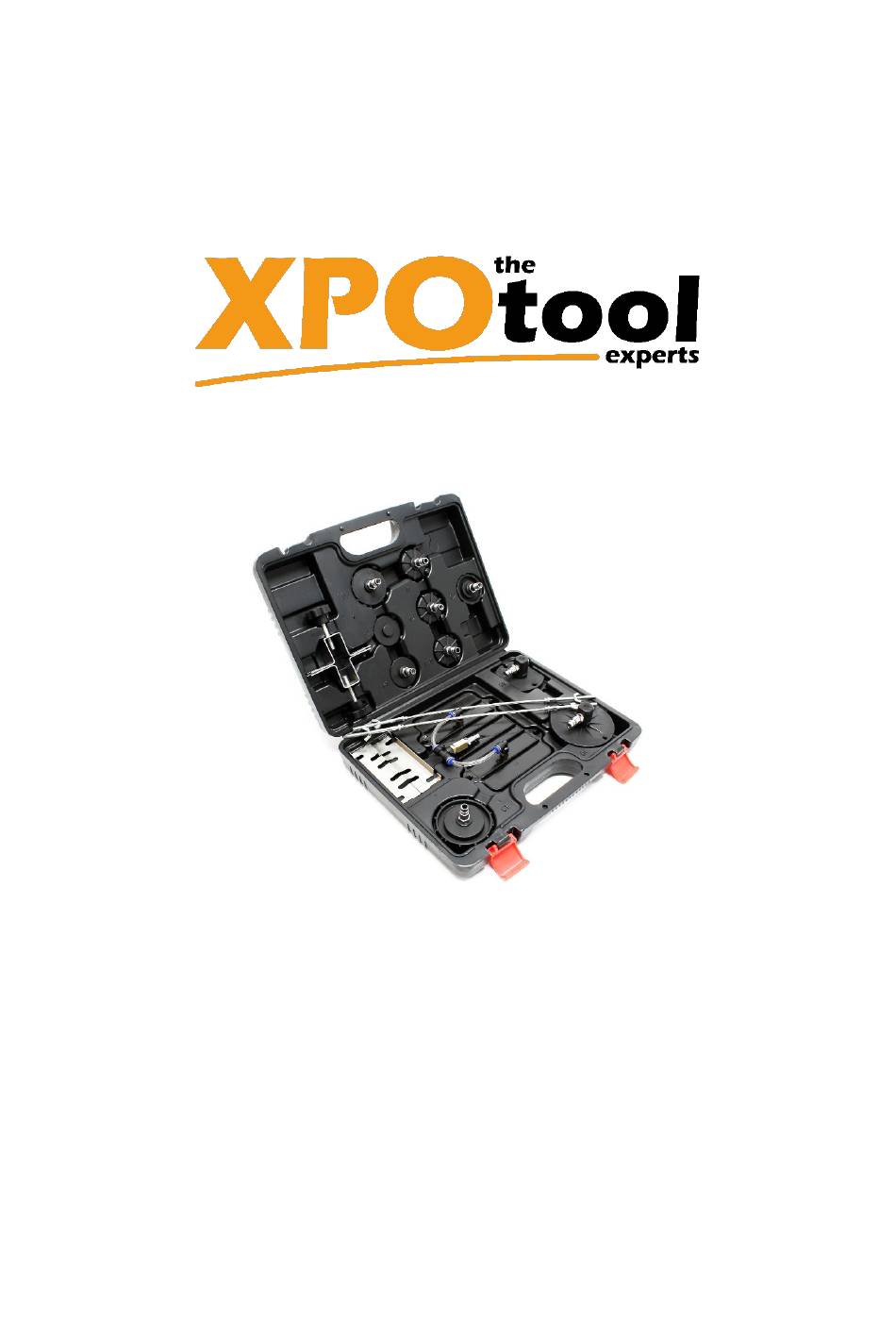

- Page 1 Operating Manual Connection Set for Air Brake Bleeding Device 51808 Illustration similar, may vary depending on model Read and follow the operating instructions and safety information prior to initial operation. Technical changes reserved! Illustrations, functional steps, and technical data may deviate insignificantly due to continuous further developments.
- Page 2 To allow for a trouble-free complaint or return, it is important to contact our customer service team before returning your goods. Retourenabteilung WilTec Wildanger Technik GmbH Königsbenden 28 52249 Eschweiler – Germany E-mail: service@wiltec.info Tel: +49 2403 55592–0 Fax: +49 2403 55592–15 https://www.XPOtool.com Item 51808 Page 2 The Tool Experts 07 2023-1...
- Page 3 It is recommended to wear protective, electrically non-conductive clothing and non- slip shoes or safety shoes while working. Wear hair protection if you have long hair. • Wear safety glasses and use ear protection https://www.XPOtool.com Item 51808 Page 3 The Tool Experts 07 2023-1...
- Page 4 • Never use pressurised air to remove brake dust from the callipers. Only use a suitable brake cleaner for this purpose. Caution! • Hot brakes may cause severe burns. https://www.XPOtool.com Item 51808 Page 4 The Tool Experts 07 2023-1...
- Page 5 * Parts 1, 15, 16, and A are not included. These parts are only depicted for clarification purposes. The accessory kit can be used together with an appropriate tank and collecting container. The parts seen on the two following photographs are included in the scope of delivery: https://www.XPOtool.com Item 51808 Page 5 The Tool Experts 07 2023-1...
- Page 6 Air line Letter Name/explanation Letter Name/explanation Connection to the quick coupling (8) on Filter the brake bleeding device From compressor Quick coupling Regulator Quick connector Quick connector Quick coupling Air hose https://www.XPOtool.com Item 51808 Page 6 The Tool Experts 07 2023-1...
- Page 7 11. Pull out the air pressure adjustment button (10) and set a tank pressure of between 1.4 to 2.7 bar (0.14 to 0.27 MPa) with the button under the air pressure gauge (19). https://www.XPOtool.com Item 51808 Page 7 The Tool Experts...
- Page 8 Remove the air hose (8) from the brake bleeding device. Open the ball valve (9), and pull on the air release valve (12) to release the pressure. Properly dispose off old liquids collected. https://www.XPOtool.com Item 51808 Page 8 The Tool Experts 07 2023-1...
-
Page 9: Please Read The Following Carefully
NOT by the customer. The buyer bears all risks and consequences for carrying out repairs or parts replacement or modifica- tions on the original product on his own. https://www.XPOtool.com Item 51808 Page 9 The Tool Experts 07 2023-1... - Page 10 The tank is not included in the scope of delivery. It is shown for clarification purposes. Important note: Reproduction and any commercial use (of parts) of this operating manual, requires a written permission of WilTec Wildanger Technik GmbH. https://www.XPOtool.com Item 51808 Page 10 The Tool Experts 07 2023-1...
