Fontana Showers LIMA FST571 Installation Instructions Manual

Commercial dual automatic sensor faucet with sensor soap dispenser

Advertisement

Quick Links

©
Product code: FST571
Fontana Sensor Faucets

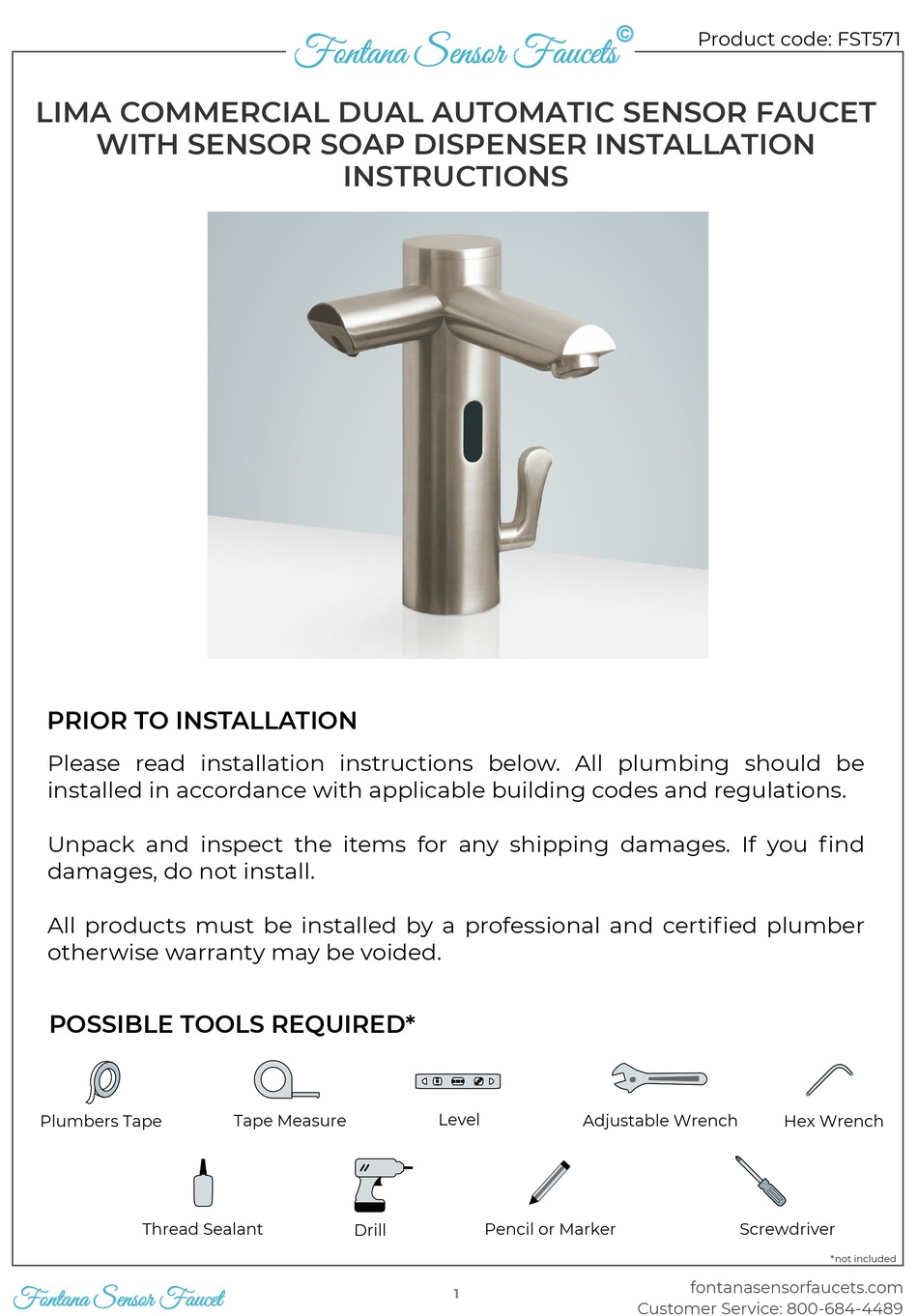

LIMA COMMERCIAL DUAL AUTOMATIC SENSOR FAUCET
WITH SENSOR SOAP DISPENSER INSTALLATION
INSTRUCTIONS
PRIOR TO INSTALLATION
Please read installation instructions below. All plumbing should be
installed in accordance with applicable building codes and regulations.
Unpack and inspect the items for any shipping damages. If you find
damages, do not install.
All products must be installed by a professional and certified plumber
otherwise warranty may be voided.
POSSIBLE TOOLS REQUIRED*
Level
Plumbers Tape
Tape Measure
Adjustable Wrench
Hex Wrench
Thread Sealant
Pencil or Marker
Screwdriver
Drill
*not included
fontanasensorfaucets.com
Fontana Sensor Faucet
1
Customer Service: 800-684-4489

Advertisement

loading
Need help?

Need help?

Do you have a question about the LIMA FST571 and is the answer not in the manual?

Questions and answers

Summary of Contents for Fontana Showers LIMA FST571

  • Page 1 © Product code: FST571 Fontana Sensor Faucets LIMA COMMERCIAL DUAL AUTOMATIC SENSOR FAUCET WITH SENSOR SOAP DISPENSER INSTALLATION INSTRUCTIONS PRIOR TO INSTALLATION Please read installation instructions below. All plumbing should be installed in accordance with applicable building codes and regulations. Unpack and inspect the items for any shipping damages.
  • Page 2 © Fontana Sensor Faucets Technical Information Faucet Size Power: DC:6V(4AA alkaline battery) AC:220V-240V; 50/60HZ Water Consumption: 0.05Mpa-0.6Mpa Detection Zone: 16-32 cm or adjustable Motor valve lifespan: up to 500000 flushes Battery lifespan: 100000 cycles Static Power Consumption: 0.36mw Working Power consumption: 0.5mw Inductive Opening Time: <...
  • Page 3 © Fontana Sensor Faucets Step 1: Step 2: fontanasensorfaucets.com Fontana Sensor Faucet Customer Service: 800-684-4489...
  • Page 4 © Fontana Sensor Faucets Step 3: Temperature Control Manual temperature control handle allows users to set preferred temperature. Waterpipe Instructions 1. Screw the hose into the corresponding screw-hole of the faucet body. Fix the o-ring into the bottom groove of the faucet body. 2.
  • Page 5: Installation

    © Fontana Sensor Faucets Important: Failure to follow these guidelines may result in poor performance and damage to the flexible connection hose. Installation: Deck mounted Power Supply Options: ∙ IP67 Dual power input box with a 9V battery (battery not included) ∙...
  • Page 6 © Fontana Sensor Faucets 5. Connect Sensor Cable and Dispenser Cable Connect the sensor cable from the spout to the sensor cable on the pump. Push the two connections together and tighten the connecting ring to ensure the two connections are locked together.
  • Page 7 © Fontana Sensor Faucets Installation of Soap Bottle Install the bracket Insert the pump Insert the locking on the wall onto the bracket plate into bracket Soap Refill Process Affix the bottle with Unscrew the Add soap into full soap onto the pump, empty bottle.
  • Page 8 © Fontana Sensor Faucets Deck Mounted Faucet Battery Box Battery case Battery case cover - + Screws + - Batteries fontanasensorfaucets.com Fontana Sensor Faucet Customer Service: 800-684-4489...
  • Page 9 © Fontana Sensor Faucets 1. Remove cover of battery case. 2. Install four (4) D size alkaline batteries. Anode Cathode Note: Make sure the batteries are installed in correct orientation (polarity). 3. Replace battery case cover. 4. Tighten screws. The standard life cycle time is 2 years, based on average use 2000 times/month. Place hands immediately Predetermined amount If more soap is needed,...
  • Page 10: Operation

    © Fontana Sensor Faucets Commissioning Sequence Care & Cleaning Before using the soap dispenser for the first time, • Always wipe your fixture down with a soft cloth the following sequence must be carried out. after each use to prevent mineral build-up and - Fill the bottle full of soap.
