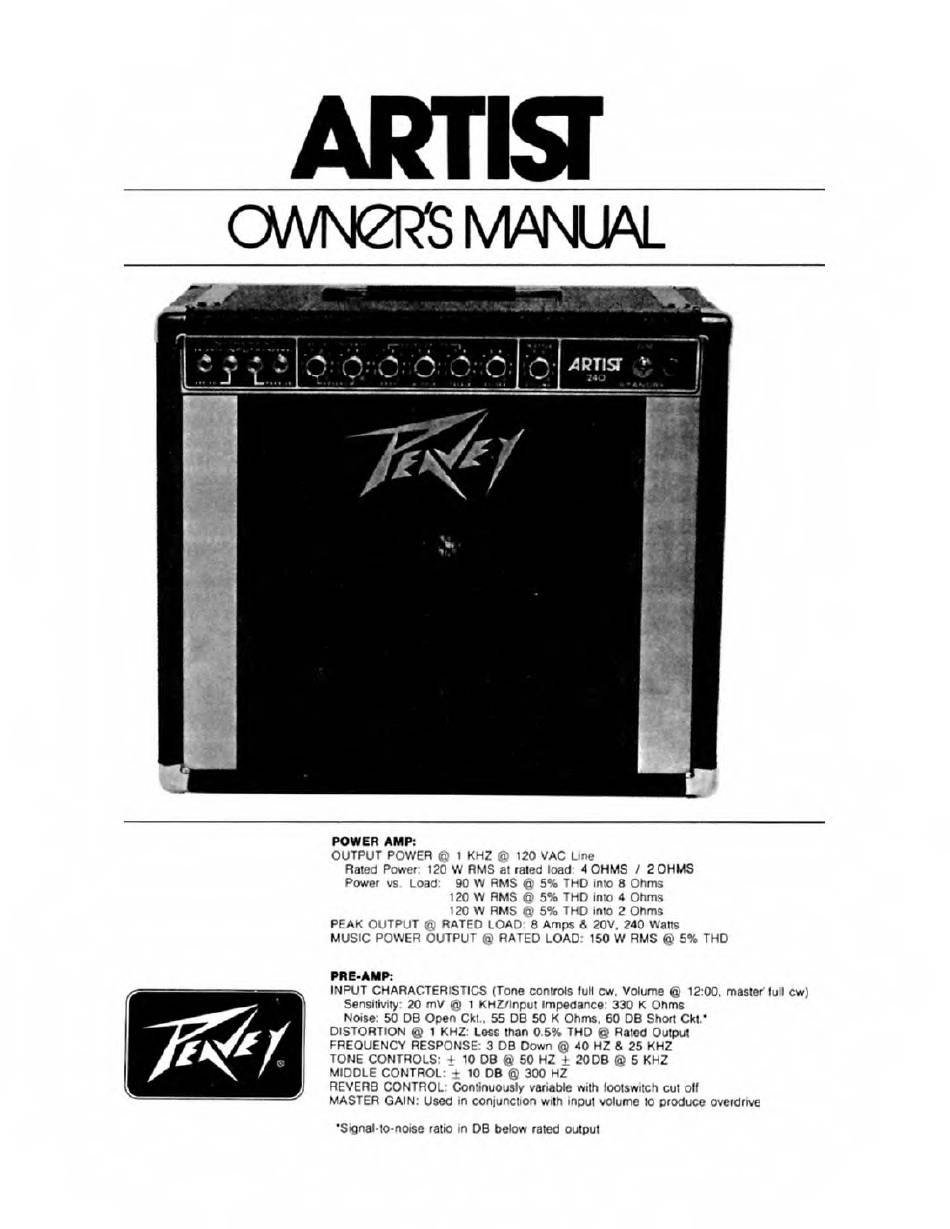

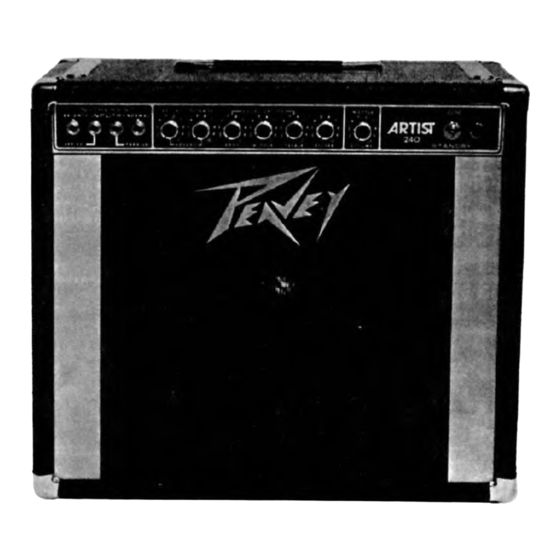

Peavey ARTIST Owner's Manual

POWER AMP:
OUTPUT POWER @ 1 KHZ @ 120 VAC Line
Rated Power 120 W RMS a! rated load A OHMS / 2 OHMS
Power vs Load 90 W RMS @ 5% THD into 8 Ohms
120 W RMS <S> 5% THD into 4 Ohms
120 W RMS @ 5% THD into 2 Ohms
PEAK OUTPUT @ RATED LOAD 8 Amps & 20V. 240 Watts
MUSIC POWER OUTPUT @ RATED LOAD: 150 W RMS @ 5% THD
PRE-AMP:
INPUT CHARACTERISTICS (Tone controls full cw. Volume @ 12:00. master* full cw)
Sensitivity 20 mV @ 1 KHZ/input impedance: 330 K Ohms
Noise: 50 DB Open Ckt.. 55 DB 50 K Ohms. 60 DB Short Ckl*
DISTORTION @ 1 KHZ: Less than 0 5% THD @ Rated Output
FREQUENCY RESPONSE: 3 DB Down @ 40 HZ & 25 KHZ
TONE CONTROLS: + 10 DB @ 50 HZ ± 20 DB @ 5 KHZ
MIDDLE CONTROL: ± 10 DB @ 300 HZ
REVERB CONTROL: Continuously variable with footswitch cut olf
MASTER GAIN: Used in conjunction with input volume lo produce overdrive
Signal-to-noise ratio in DB below rated output
