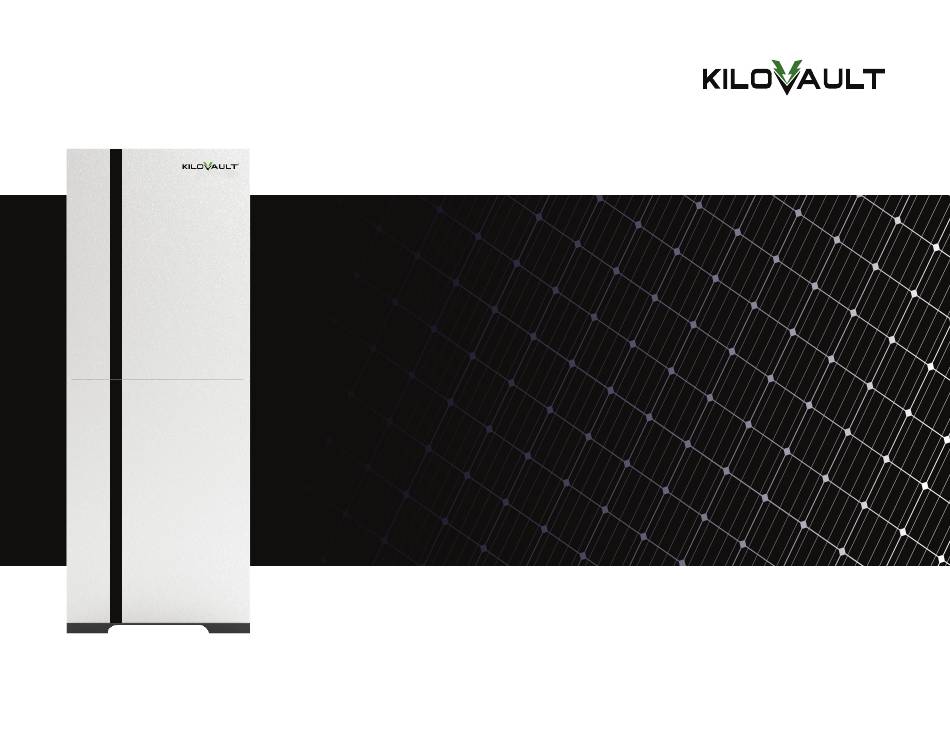

- Page 1 KiloVault Uniti USERS GUIDE...
- Page 2 Note: Read this entire document, in addition to the equipments Installation Manual, before installing or using the KiloVault Uniti. Failure to do so or to follow any of the instructions or warnings in this document can result in electrical shock, serious injury, or death, or can damage the Uniti, potentially rendering it inoperable.
- Page 3 "DO NOT DISCARD CRATE AND INTERNAL PACKAGING." Battery Cabinet HLX+ Series Batteries Inverter Cabinet • Keep the KiloVault Unit in its box until you are ready to install it. • Open the box and inspect all contents to ensure all items in the box are undamaged.
- Page 4 "DO NOT DISCARD CRATE AND INTERNAL PACKAGING." Battery Cabinet HLX+ Series Batteries Inverter Cabinet • Keep the KiloVault Unit in its box until you are ready to install it. • Open the box and inspect all contents to ensure all items in the box are undamaged.
-
Page 5: Installing Base
Install the man body to the base. Battery Cabinet Fix the main body and the base by 10 screws. Cabinet Base • Place the battery cabinet of the KiloVault Uniti onto the base. Using the ten bolts provided secure the Battery cabinet to the base. -
Page 6: Installing The Top Cabinet
STEP 2 Installing the top cabinet Tighten the screws. Install the cable box to the top of the main body. Battery Compartment • Ensure critical or primary load center is de-energized or disconnected. • Ensure AC source is de-energized or disconnected. •... - Page 7 STEP 3 Installing the Batteries (Uniti Eco Freedom) STEP 4 (Uniti EcoFreedom 5) Each level holds (4) HLX+ Batteries. Each Level are connected in series. • Ensure critical or primary load center is de-energized or disconnected. • Ensure AC source is de-energized or disconnected.
- Page 8 STEP 4 Install the side cover (Uniti EcoFreedom 5) Attach the side cover to the main body, Slid the front cover in. Fix the side cover and the main body with screws. • Ensure critical or primary load center is de-energized or disconnected.
- Page 9 (Uniti Pro) Tighten the screws. Load the batteries into the cabinet from bottom to top. Fix the batteries to the main body with screws. • Note: When making the connections, be sure to observe correct hardware stacking and proper polarity, and ensure that nothing obstructs the connection between the terminal surface and the battery cable lug.
- Page 10 STEP 5 STEP 5 Connect the cables (Uniti Pro) Connect the provided ground wire Connect the batteries to the busbar Connect the communication cables between the batteries. with the power cables provided. between batteries as shown in the pic, and connect the host battery with the battery to inverter com cable.
- Page 11 STEP 6 Install the side cover Attach the side cover to the main body Slid the front cover in. • Ensure critical or primary load center is de-energized or disconnected. • Ensure AC source is de-energized or disconnected. • Ensure all breakers are off.
- Page 12 Safety Breakers 120 VAC 15 Amp outlet. 120 VAC outlet Breaker. Light Breaker Light Breaker Positive Busbar Negative Busbar Load Breakers 120 VAC 15 Amp outlet. Inverter DC Breakers...
- Page 13 Setting range: 48V~60V • Before operating the Uniti be sure to read this Setup Guide and the full users manual.. • Even though the inverter is programed before shipping it is critical to program your inverter or charge con- troller's settings for correct operation, improper programming of your system equipment may invalidate your battery warranty and could degrade system performance.
- Page 14 06 Charge source priority 10 Battery Absorption charge time SNU Default 5 Minutes PV and Mains hybrid charging: PV charging is a priority, and when the PV energy is insufficient, the Mains charging supplements. 11 Battery float charge voltage When the PV energy is sufficient, the Mains charging stops. 53.6V NOTE: Only when the Mains bypass output is loaded, the PV charging and...
- Page 15 • Ensure critical or primary load center is de-energized or disconnected. • Ensure AC source is de-energized or disconnected. • Ensure all breakers are off.
-
Page 16: Battery Setup
Uniti Pro Inverter Settings. Battery Capacity 100 Ah per unit Max Amps Charge/Discharge 185A is the max amps that Sol-Ark 12K. Fill in the max amps or (50A*unit numbers) which is lower. (For example, there are three Pytes E-BOX batteries and one 12K Sol-Ark inverter in a system. - Page 17 KiloVault* LLC KiloVault® Uniti Series Pre-wired energy storage system 330 Codman Hill Road Boxborough, MA 01719 +1(888)218–5924 info@kilovault.comwww.kilovault.com...
- Page 18 KiloVault Uniti USERS GUIDE...
