Configuring PHANTOM
AMP-2500 DSP
By: Thomas Holm. Senior Product Specialist, DALI Loudspeakers
Note!
Standard input/output configuration:
Input signal on CH 1 (Left/LFE) will be routed to both
speaker outputs and makes the AMP-2500 DSP able to
drive 1-4 SUB S-100's with one mono LFE input signal.
How to set up the AMP-2500 for
subwoofers
If you have two (or four) SUB S-100's and would like to set them up as stereo left/right subwoofers, you will have to
configure the AMP-2500 DSP for stereo operation. This is done from the AMP configurator.

Step 1: Connecting cables

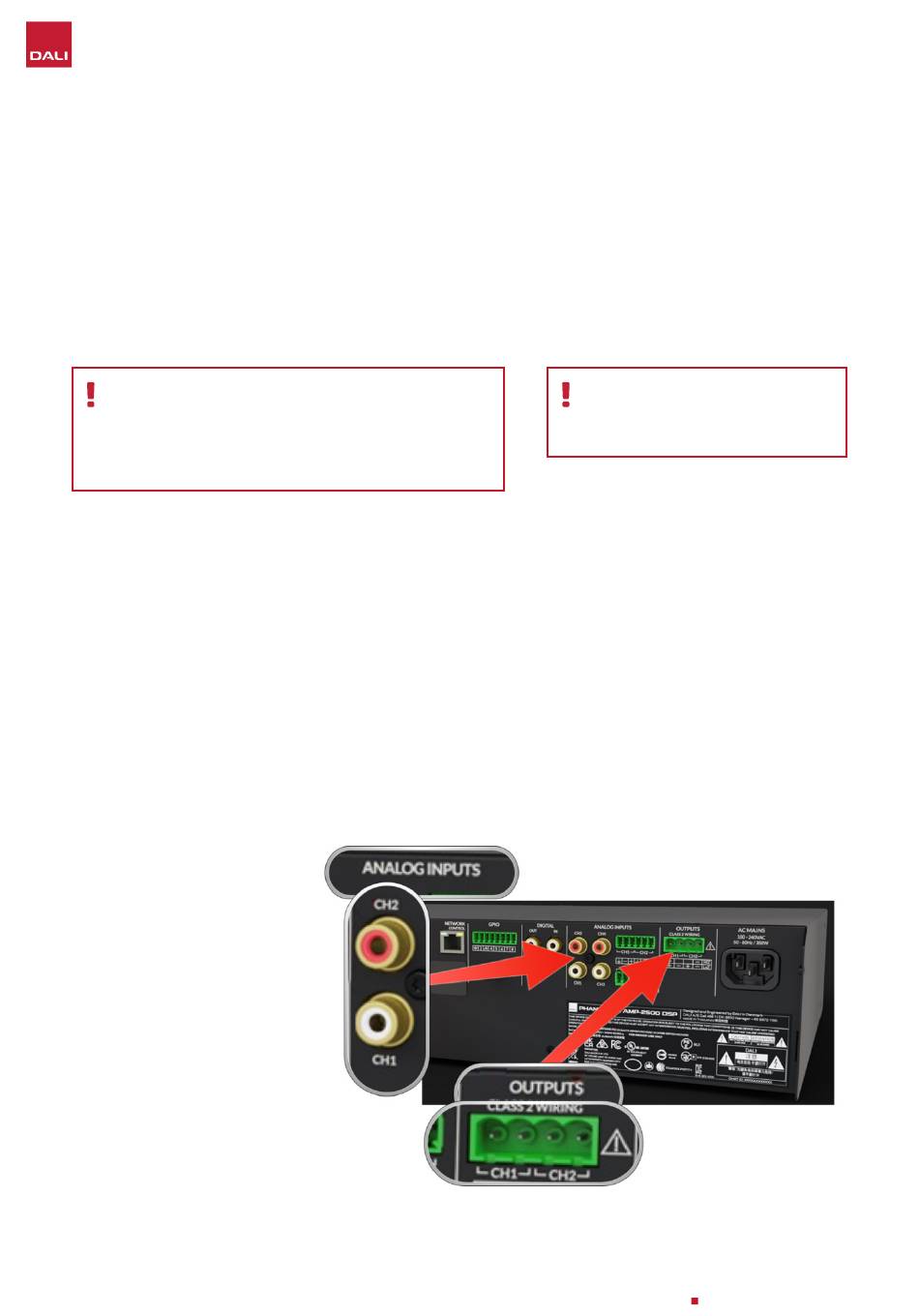

• Connect your stereo subwoofer
source signal to input CH 1 and 2
on the AMP-2500 DSP.
Example:
CH1 = Left input
CH2 = Right input
• Connect your speaker cables to
the speaker outputs.
For help connecting to the AMP CONFIGURATOR Dashboard, please see the "Wi-Fi and LAN Setup Guide" or the User Manual.
DALI PHANTOM CI AMP-2500 DSP
for stereo use
(Left/Right)
I CONFIGURATION - STERIO USE
Full AMP Configurator Online
Walkthrough video on the last page
in this guide.
stereo
