Summary of Contents for YUNEEC E20Tvx

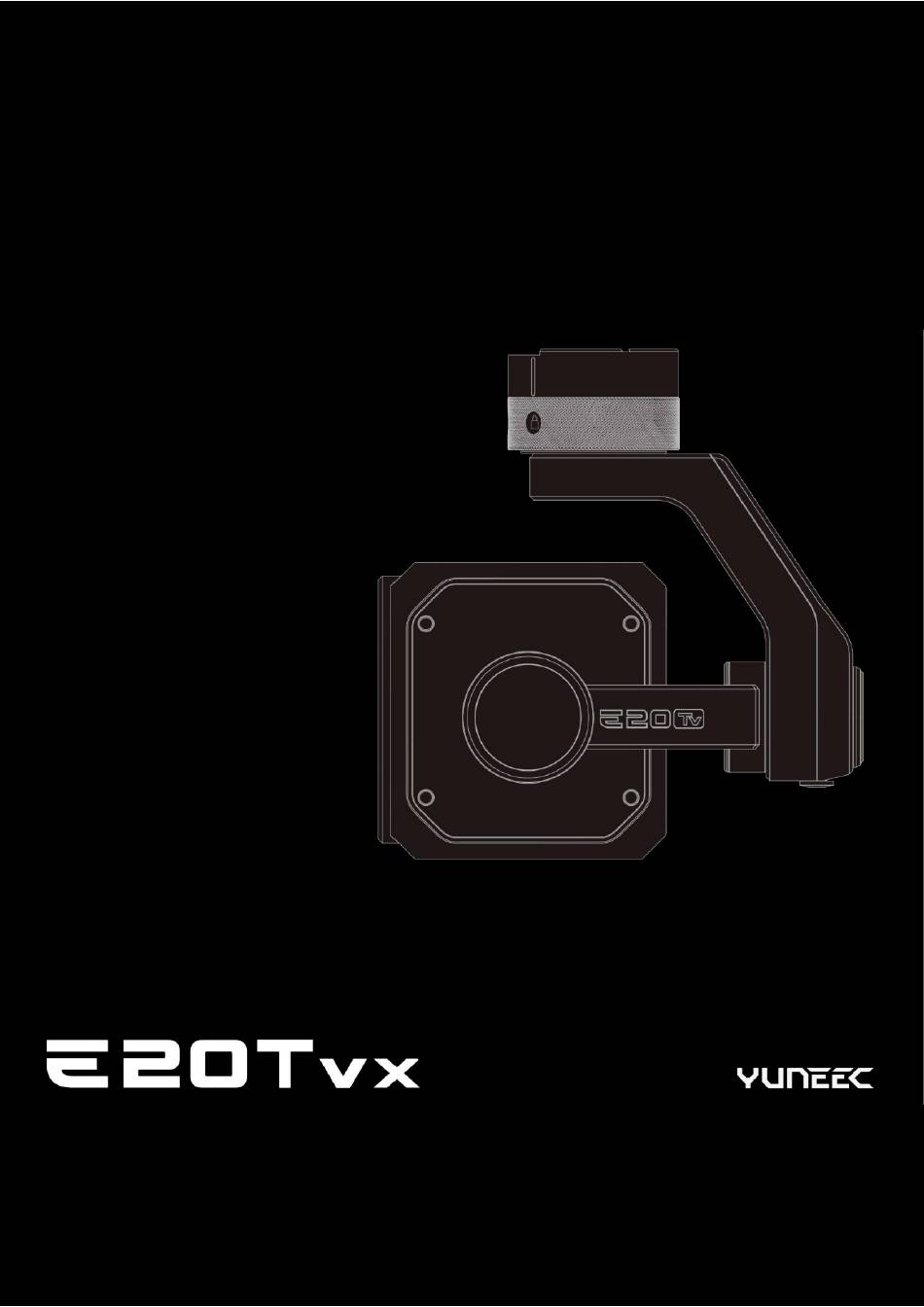

- Page 1 E20Tvx User Manual...
-
Page 2: Table Of Contents
....................4 Product General Description Highlights of the E20Tvx camera system: ................4 Overview ..............................4 SEPC ........................... 5 Gimbal Installation ......................... 6 Assembly and Disassembly the X connector gimbals............... 6 Assembling ........................6 Disassembling ....................... 6 ....................7 User interface introduction ................ - Page 3 Metering Mode ........................... 16 Screen Grid ............................17 Photo mode ............................18 Reset Camera Defaults ........................18 Format Micro SD card ........................18 Disclaimer........................... 19...
-
Page 4: Product General Description

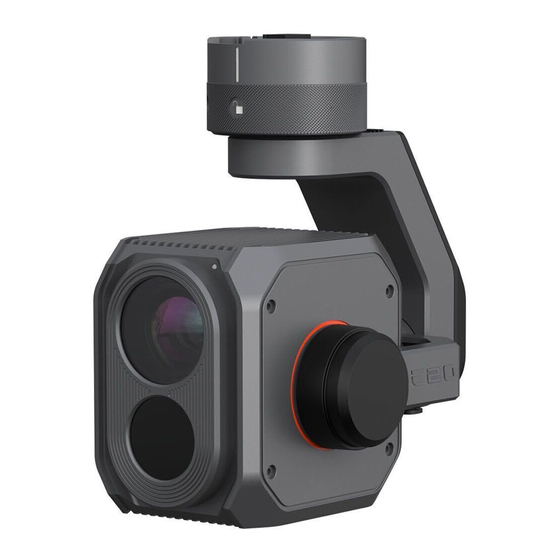

Product General Description The E20Tvx with Thermography sensor for the H520E Hexacopter is a stabilized 3-axis gimbal, thermal imaging and residual light camera all-in-one. The E20Tvx is available with a 640*512-pixel thermal imaging resolution. The E20Tvx takes high-quality pictures and detects more details in the dark than the naked eye with the help of its large RGB sensor. -
Page 5: Sepc
SPEC Items E20Tvx Weight 364g Angular Vibration Range ±0.03° Controllable Range Tilt:：-110°~ 30° Pan: ±165° Tilt: 30°/s Max Angular Velocity Pan: 120°/s Operating Temperature -10°C to 50°C Thermal Sensor Data Sensitivity <50mk @F1.0/25°C Pixel Pitch 12μm Infrared Wavelength Range 8-14μm... -
Page 6: Gimbal Installation
Gimbal Installation Assembly and Disassembly the X connector gimbals Assembling Step 1. Find the Unlocked Mark etched on the Gimbal Yaw Motor and align the Mark Line with the front of the damping plate. Step 2. Insert the Gimbal Yaw Motor into the damping plate and rotate it counterclockwise until the Mark Line of the Locked Mark aligns with the front of the damping plate to secure... -
Page 7: User Interface Introduction
User interface introduction 1． Temperature Bar 2． Thermography Video 3． Measuring area and Temperature indication 4． Gimbal attitude indicator (Tilt and Pan) 5． Digital Zoom ratio indicator for Thermography 6． Camera quick-access menu 7． Gimbal type and SD card storage space 8．... -
Page 8: Thermography Video
Tint Black Hot 2. Thermography Video The Real time video from the E20Tvx displayed on the screen. 3. Measuring area and Temperature indication The Temperature measure area or spot sight bead, the number in the red rectangle show the measure result. -
Page 9: Digital Zoom Ratio Indicator For Thermography
Also there is a black arrow in the Yellow dot it shows which direction of the gimbal lens is point to. When the arrow is straight up it shows the gimbal lens is point to the front of the drone. Digital Zoom ratio indicator Logo shows the Thermography video zoom ratio you can use the right trim button on the ST16E. -
Page 10: Video/Photo Mode Switch Button
8. Video/Photo mode switch button Switch the Camera mode between the Photo mode with the Video recording mode. Just tap the Icon to switch the Camera work mode Camera in video mode Camera in Photo mode 9. Shutter or Start/Stop recording soft button In the Video Recording mode the icon is a red dot. -
Page 11: Ffc( Flat Field Correction) Button
C and H icon on the bar or tap the “+” and “-” of each side for more precise adjustment. 13. FFC( Flat Field Correction) Button Tap the button to send the FCC command to the E20Tvx for calibrating manually. Camera setting menu 1. Thermal View Mode... - Page 12 1) Off: Switch off the thermal view 2) Blend: The thermal view blend with the visible light view Blend effect 3) Full: Full the thermal view in the screen and you won’t see the visible light view Full effect 4) Picture in picture: The thermal view in the visible light view Picture in picture effect...
-
Page 13: Blend Opacity
2. Blend Opacity (Thermal View Mode in Blend setting only) When select the blend thermal view mode the blend opacity bar will show up in the menu The customer can slide the slider to adjust the opacity of the thermal view, the larger the number is the more opacity will be Blend Opacity 0 effect... -
Page 14: Infrared Gain Mode
Blend Opacity 100 effect 3. Infrared Gain Mode In High Gain Mode the thermal sensor will have higher temperature measure accuracy but smaller range (-20℃~150℃) In Low Gain Mode the thermal sensor will have lower temperature measure accuracy but larger range (100℃~550℃) 4. -
Page 15: White Balance
When Manual exposure mode is selected the menu will add 2 new Items for users choosing 1: ISO (Range from 100 to 3200) 2: Shutter Speed (Range from 1/30s to 1/8000s) 5. White Balance The E20Tvx has 7 different white balance for visible light camera can be chosen. The menu as shown below:... -
Page 16: Metering Mode
6. Metering Mode The E20Tvx offers 2 different Metering mode for visible light. 1) Average In this metering mode, the camera uses light information from the entire scene and creates an average for the final exposure setting, giving no weighting to any particular portion of the metered area. -
Page 17: Screen Grid
7. Screen Grid Turn on the screen grid switch, and the gridline auxiliary user composition will appear on the screen. Screen Grid effect... -
Page 18: Photo Mode
8. Photo mode This item only appears when the camera is in the photo mode The users can toggle single mode with time lapse mode 1) Single Mode: The camera only records a photo when the shutter button was pressed. 2) Time Lapse: The camera will record a photo automatically according to the time interval which set by users Slide the slider to set the time interval. - Page 19 We may also collect personal information used in registration if you choose to become a registered user and any other information user provided to Yuneec. We may also collect information which user send to other users, and the recipients and senders of such information.
-
Page 20: Disclaimer
Disclaimer Yuneec International (China) Co., Ltd. cannot be held liable for any damage, injury or for use of the product in violation with legal regulations, especially in the following circumstances: Damage and/or injury as well violation of legal regulations resulting from a failure to comply with the operating instructions or the instructions at www.yuneec.com, product information, user manual and other legally binding... - Page 21 Damage and/or injury as well as violation of legal regulations caused by flying in legally defined no-fly zones. Further losses which do not fall within the scope of use defined by Yuneec as improper. This product is designed for both professional use and personal, private use. The national and international laws and regulations in force as the time of taking off must be adhered to.
- Page 22 EU Compliance Statement Hereby, Yuneec International (China) Co., Ltd. declares that this device is in compliance with the essential requirements and other relevant provisions of the RED Directive 2014/53/EU. The full text of the EU Declaration of Conformity is available at the following internet address: http://yuneec/de-downloads.
- Page 23 Yuneec | www.yuneec.com Customer Service Official website www.yuneec.com Yuneec Support https://yuneec.kayako.com This content subject to change download the latest version from www.yuneec.com If you have any questions about this document, please contact us by Start a conversation on https://yuneec.kayako.com...
