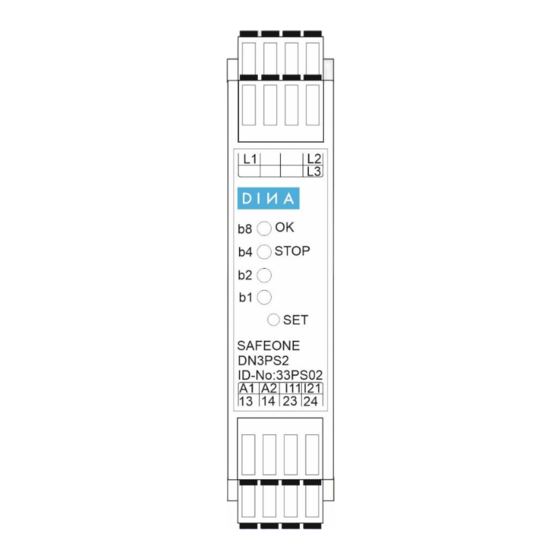

DINA SAFEONE DN3PS2 Manual
Safety switchgear to monitor the standstill of three-phase and single-phase motors without sensor
Hide thumbs
Also See for SAFEONE DN3PS2:
- Original instruction manual (16 pages) ,
- Original instruction manual (12 pages)
Related Manuals for DINA SAFEONE DN3PS2
Summary of Contents for DINA SAFEONE DN3PS2
- Page 1 SAFEONE DN3PS2 Hardware Safety switchgear to monitor the standstill of three-phase and single-phase motors without sensor...
- Page 2 Mail info@dina.de www.dina.de © Copyright by DINA Elektronik GmbH 2023 All parts of this documentation are protected by copyright. Any use beyond that permitted under copyright law is not permitted without express written consent from the publish- er. This applies in particular to the reproduction, distribution and translation of this documentation or parts thereof, as well as the storage and processing of this content using electronic data processing systems.
-
Page 3: Table Of Contents
Block diagram ....................14 Configuration ......................15 4.2.1 Setting the switching thresholds ..............15 4.2.2 Setting the switch-on delay ................16 Motor with frequency converter ................... 18 Motor with star-delta circuit ..................18 Single-phase motor ..................... 18 Hardware Handbuch SAFEONE DN3PS2... - Page 4 8.11 Safety-related parameters in accordance with DIN EN ISO 13849-1:2016-06 .... 23 8.12 Contact life ......................... 24 Installation and removal ................... 25 Installing a module ...................... 25 9.1.1 Overview ....................... 25 Removing a module ....................25 Hardware Handbuch SAFEONE DN3PS2...
-
Page 5: Structure Of The Document
Indicates an item in a list. 1.1.3 Emphasizing words using typography The following typography is used to emphasize words with special functions: Represents a numbered item in a figure. → Indicates a cross-reference to another page, figure or document. SAFEONE DN3PS2 Hardware... -
Page 6: Your Opinion Is Important To Us
We do all we can to provide complete, accurate documentation for the product. If you have any suggestions for improvement or advice for us, please share your thoughts with us. Send us your comments by e-mail to the following address. E-mail: info@dina.de SAFEONE DN3PS2 Hardware... -
Page 7: Safety
For a potentially hazardous situation that could result in injuries. CAUTION For a potentially harmful situation in which the product or an item near it could be damaged. CAUTION For a hazard that could cause environmental damage. SAFEONE DN3PS2 Hardware... -
Page 8: Hazard Symbols
Electric shock – dangerous voltage! Qualification of personnel DINA Elektronik GmbH distinguishes between specialist staff with different qualifications when it comes to carrying out work on the product. The minimum required qualifications are specified for each task and are defined as follows: 2.2.1... -
Page 9: Intended Use And Improper Use
51105 Köln Germany NB 0035 EMC Directive Certified by: ELMAC GmbH Bondorf CNL, USL File E227037 QA system certified as per DIN EN ISO Certified by: 9001:2015 DQS GmbH, 60433 Frankfurt am Main, Germany Note SAFEONE DN3PS2 Hardware... - Page 10 Safety regulations The safety regulations listed below must always be complied with. In the event that these safety regulations are not complied with or the device is used improperly, DINA Elektronik GmbH accepts no liability for any resulting injury or damage.
- Page 11 Basic safety regulations The safety regulations listed below must always be complied with. In the event that these safety regulations are not complied with or the device is used improperly, DINA Elektronik GmbH accepts no liability for any resulting injury or damage.
- Page 12 ► Always check circuits as a safety precaution! Components being worked on may only be live if this is absolutely necessary and stipulated. ► Accident prevention regulations (e.g. VBG4 and VDE 105) must be ob- served during all work. ► Only use suitable, intact tools and measuring equipment. SAFEONE DN3PS2 Hardware...
-
Page 13: Ec Declaration Of Conformity
EC declaration of conformity EC declaration of conformity SAFEONE DN3PS2 Hardware... -
Page 14: Product Description
Product description Product description The SAFEONE DN3PS2 is a safety switchgear for sensorless standstill monitoring of electric drives. In the event of drive movement or errors, the potential-free NO output contacts switch to the rest position. The restart can be parameterized with a time delay. -
Page 15: Connection 33Ps02, 33Ps03, 33Ps05
Measuring inputs are to be connected directly to the motor Digital input for muting-function Digital input for muting-function 13/14, Enabling contacts 23/24 LED OK operational readiness state of the enabling current path STOP LED b1, Binary-coded display of the set parameters b2, b4, b8 SAFEONE DN3PS2 Hardware... -
Page 16: Block Diagram
◄ Enable contacts are closed standstill. ◄ The "wire break" and "single-channel" error detection is inactive. with 33PS05 only the release contact 13/14 remains closed. The release contact 23/24 switches off when there is movement. not with 33PS05 SAFEONE DN3PS2 Hardware... -
Page 17: Example Of Application
When the protective device is open, inputs I11 and I21 are not connected. Standstill monitoring is active and the enabling current path only closes when the drive is at standstill. When the protective device is closed, standstill monitoring is not active and the enabling current path is closed SAFEONE DN3PS2 Hardware... -
Page 18: Connection 33Ps08
Measuring inputs are to be connected directly to the motor Signal output Signal output 13/14, Enabling contacts 23/24 LED OK operational readiness state of the enabling current path STOP LED b1, Binary-coded display of the set parameters b2, b4, b8 4.1.6 Block diagram Measuring inputs Outputs SAFEONE DN3PS2 Hardware... -
Page 19: Configuration
◄ The set value is saved and the setting mode is exited. Legend LED on LED off switching thresholds 1, Enabling contacts closed switching thresholds 1 at 33PS03, Enabling contacts closed switching thresholds 2, Enabling contacts open Default setting when delivered SAFEONE DN3PS2 Hardware... -
Page 20: Setting The Switch-On Delay
► Keep the SET button pressed for 2s. ◄ The set value is saved and the setting mode is exited. Legend LED on LED off switch-on delay switch-on delay at 33PS03 Default setting when delivered 0 s at 33PS08-01 SAFEONE DN3PS2 Hardware... - Page 21 Product description t (s) t (s) Table 4-2 SAFEONE DN3PS2 Hardware...
-
Page 22: Motor With Frequency Converter
Single-phase motor Operation on a single-phase motor is possible. ► Bridge the measuring inputs L1 und L3 and connect them directly to the motor connection U1. ► Connect the measuring input L2 directly to the motor connection U2. SAFEONE DN3PS2 Hardware... -
Page 23: Diagnostics And Switching Status Displays
Status Power off Self-test Ready to use Error see chapter. „Flash-codes“ STOP enabling current path open enabling current path closed Switch-on delay time t expires b1 to b8 Setting the switching threshold Setting the switch-on delay time SAFEONE DN3PS2 Hardware... -
Page 24: Flash-Codes
The blink code repeats continuously with a pause of 1 s. The meaning of the individual blink codes can be found in the table. Flash- Definition Remedy Code ► Send the device to DINA Elektronik for 1 x flash Internal error testing. ► Check power supply 2 x flash incorrect power supply UB = 20.5V-26,5V DC... -
Page 25: Order Information
24 V DC (-15/+10%) Current consumption typ. 4 mA (at UB) Measuring inputs Inputs L1, L2, L3 Input voltage range 90V to 690V AC Current consumption 0,35mA at 690V AC/5kHz Signal outputs Outputs O1, O2 Output type Voltage UB-1V SAFEONE DN3PS2 Hardware... -
Page 26: Contact Outputs
IP 54 Clearance and creepage distances between According to DIN EN 50178 circuits Rated insulation voltage 250 V AC Rated surge voltage/insulation 4 kV Degree of contamination Overvoltage category Housing material Polyamide PA not reinforced Weight 130g SAFEONE DN3PS2 Hardware... -
Page 27: Connection Data
(0.886 x 4.488 x 4.370 in) Size of DIN rail 35,0 mm (1.378 in) 8.10 Safety-related data Stop category in accordance with IEC 60204 8.11 Safety-related parameters in accordance with DIN EN ISO 13849-1:2016-06 Performance Level Category MTTFd [a] PFHd 4E-08 SAFEONE DN3PS2 Hardware... -
Page 28: Contact Life
Technical data 8.12 Contact life Electrical service life of the output contacts in accordance with DIN EN 60947-5-1/ Annex C.3 SAFEONE DN3PS2 Hardware... -
Page 29: Installation And Removal
◄ The locking slider (2) engages under the top hat rail. Removing a module Procedure ► Use a screwdriver (1) to move the locking slider away from the module. ► Move the module upward and remove it from the rail. SAFEONE DN3PS2 Hardware...
