HALDER 22350.0716 Quick Start Manual

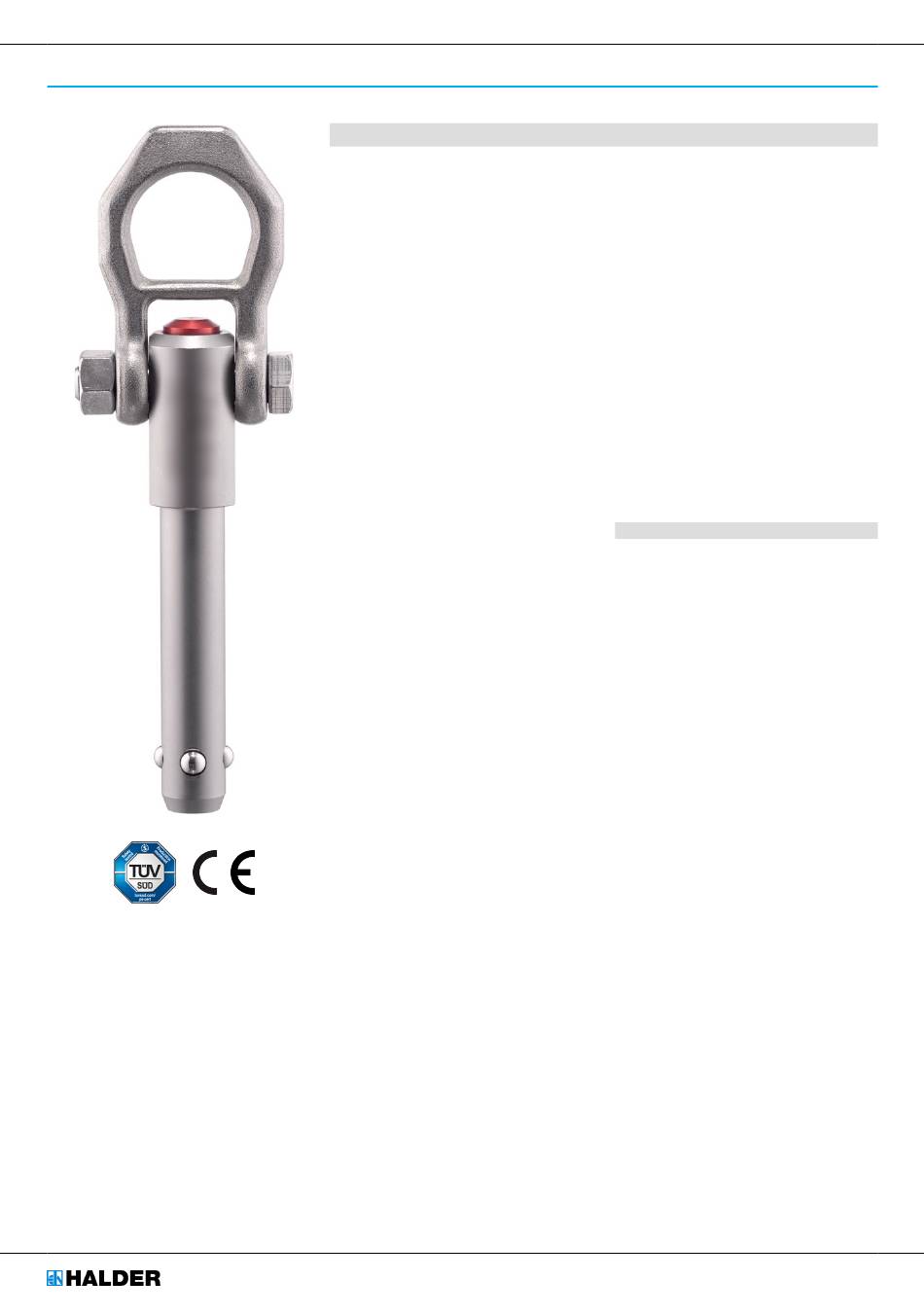

Lifting Pins self-locking, stainless steel
•
22350.0716

Product Description

Heavy-duty lifting element for quick and easy use, with moveable shackle and locking stud to
provide protection against unintentional unlocking. Special lifting devices, e.g. threads for ring
bolts, are no longer required on the workpiece.
Corrosion and weathering resistant, thus also suitable for outdoor application. Very solid,
precipitation-hardened pin with an extreme load capacity.

Material

Pin part
• Stainless steel 1.4542, precipitation-
hardened
Press button
• Aluminium, red anodised
Shackle
• Stainless steel 1.4571
Spring
• Stainless Steel
Erwin Halder KG
Machine and Fixture Elements
Lifting Pins / Threaded Lifting Pins

Assembly

Simple H11 boreholes are sufficient.
Mounting:
1. Press in the button and hold it down
2. Insert the lifting pin
3. Release the button (The button must be
back in its original position)
Dismantling:
1. Press in the button and hold it down.
2. Remove the lifting pin.
3. Release the button.

Operation

Each lifting pin contains an instruction manual
with an EC Declaration of Conformity.

More information

Accessories

As accessories, we offer matching locating
bushings for d

Further products

• Lifting Pins, self-locking
• Locating Bushings, for lifting pins
• Locating Bushings, plain, for lifting pins
• Locating Bushings with Seal, plain, for lifting
pins
• Threaded Lifting Pins, self-locking
• Threaded Lifting Pins, self-locking, for
centre holes according to DIN 332
• Threaded Lifting Pins, self-locking, with
rotatable shackle
• Threaded Lifting Pins, self-locking - INCH
• Threaded Lifting Pins, self-locking, with
rotatable shackle - INCH
www.halder.com
= 8, 10, 12, 16 and 20
1
Page 1 of 7
Published on: 2.12.2023
