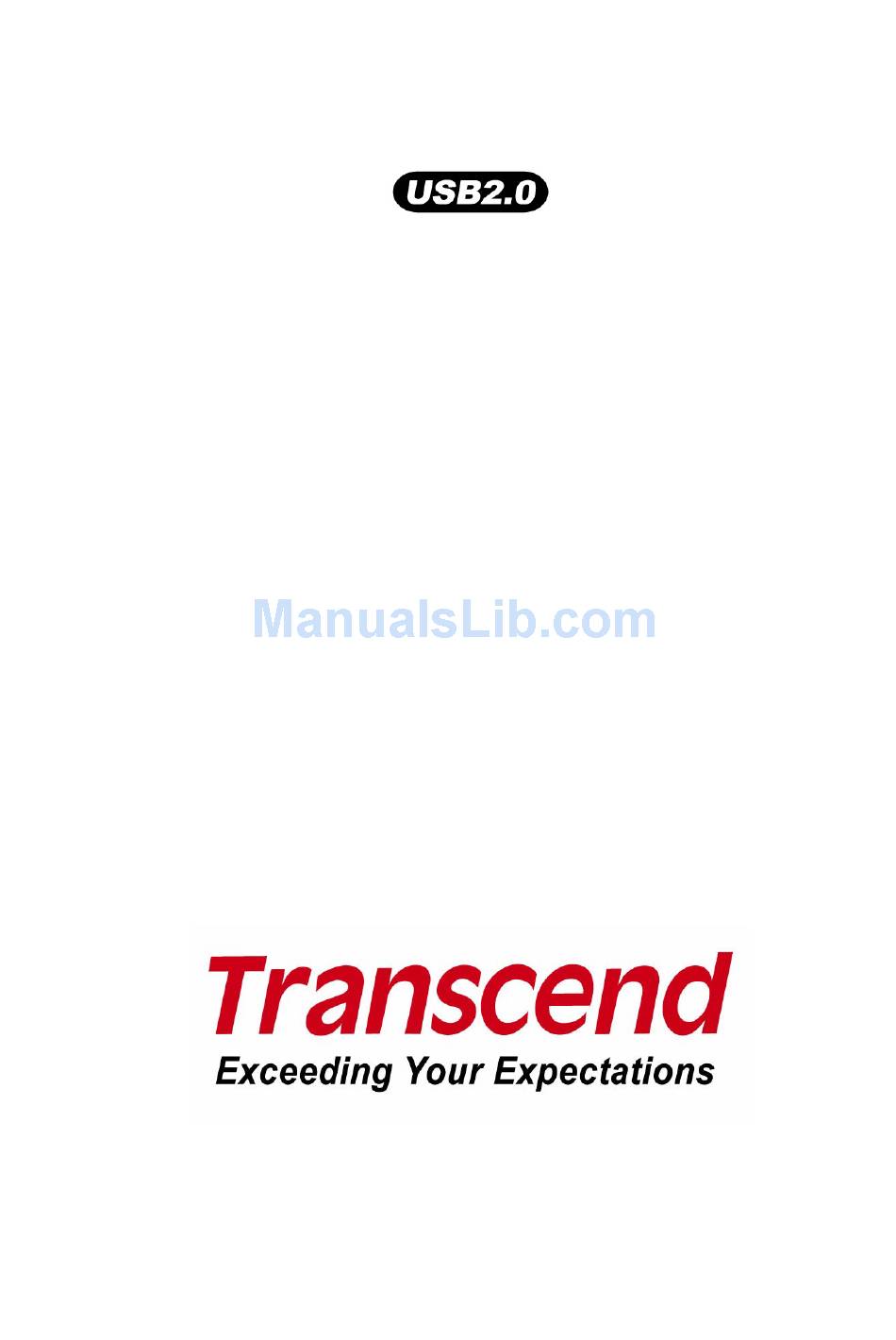

- Page 1 PF710 User’s Manual...
-
Page 2: Table Of Contents
Introduction ... 3 Package Contents ...3 Features ...3 System Requirements...4 Safety Precautions ... 5 General Use ...5 Backing Up Data...5 First Time Use... 6 Turn on PF710 ...6 Using a memory card or USB flash drive ...8 Volume control and headphones ...8 Navigation Buttons...8 Remote Control ...9 Connecting to a Computer ... - Page 3 Firmware upgrade ...26 Troubleshooting ... 27 Specifications ... 28 Warranty... 29 Terminology... 30...
-
Page 4: Introduction
Congratulations on purchasing Transcend’s PF710. Now it’s easy to display your photo collection at home or at the office. The PF710 lets you conveniently access and playback photos and music from a variety of sources: USB Flash drives, all sorts of memory cards, or the PF710’s own on-board memory. PF710 can be operated easily with both its navigation buttons and the included remote control. -
Page 5: System Requirements
System Requirements System requirements for connecting PF710 to a computer: 1. 100~240V voltage power outlet for the DC adaptor. 2. Desktop or notebook computer with a working USB port. 3. One of the following Operating Systems (OS): ® Windows 2000 ®... -
Page 6: Safety Precautions
Do not use a damp cloth to wipe or clean the exterior case or the LCD panel. Only use the Transcend provided DC adapter for use with the PF710. Use of other DC adapters may cause a fire or explosion. -
Page 7: First Time Use
Volume control Headphone jack USB A-Type connector Mini-B USB connector Navigation Buttons Right speaker Stand holes (landscape) Stand holes (portrait) Turn on PF710 First Time Use LCD panel Figure 1: PF710 Figure 2: Attaching the tabletop stand to PF710(Landscape) CF slot SD/SDHC/ MMC/MS slot DC Power... - Page 8 Figure 3: Attaching the tabletop stand to PF710(Portrait) Attach the Tabletop Stand to the back of the PF710 using the stand holes (Landscape) shown above. Landscape configuration is recommended for initial use. Connect the power adapter cable to the DC input jack on your PF710. Plug the power adapter into a wall outlet.
-
Page 9: Using A Memory Card Or Usb Flash Drive
Figure 6: Removing the tabletop stand from PF710(Portrait) Using a memory card or USB flash drive Insert a memory card into its appropriate card slot on the right-hand side of PF710 or plug a USB flash drive to the USB A-Type connector on the left-hand side. Once a memory card or USB flash drive is plugged in, PF710 will automatically begin slideshow playback of all photos available on your memory card or flash drive. -
Page 10: Remote Control
Remote Control PF710 comes with a compact, easy to use remote control. You can operate your PF710 with either Your the navigation buttons on the back of the PF710 or by using the remote control. Note that when using the remote control you should always aim it directly at the front of your PF710 and make sure there are no obstacles in the way. -
Page 11: Connecting To A Computer
Connecting to a Computer If you want to transfer pictures and music between the PF710 and your computer, connect the PF710 to a USB port on your computer using the provided Mini-B to A-Type USB cable. Turn on PF710 Plug the small end of the USB cable into the Mini-B USB port located on the left side of the PF710. Plug the large end of the cable into an available USB port on your desktop or notebook computer. -
Page 12: System Connection For Mac ™ Os 10.0 Or Later
Figure 12: The “My Computer” window with PF710 drives shown. *Note: E:,F:,G:, and H: are example drive letters - the letters in your “My Computer” window may differ Proper removal of your PF710 (from Windows): 1. Click once on the Removable Hardware icon 2. -
Page 13: System Connection For Linux Kernel 2.4 Or Later
Proper removal of your PF710 (from Mac OS): First drag-and-drop the Disk icon corresponding to your PF710 into the trashcan then unplug your PF710 from the USB port. System connection for Linux No drivers are required. Plug your PF710 into a USB port and mount it. a. -
Page 14: Home
The Home menu acts as a convenient gateway to access all of PF710’s functions. Selecting one of the four icons listed in Home menu (shown below) will activate the menu option listed underneath it. Photo This option lets you display photos in Thumbnail, Photo view or slideshow mode with special effects. Use the OSD (see note below) to select the “Photo”... -
Page 15: Photo
Photo has three modes: (Thumbnail mode, Photo View mode and Slideshow mode). You can use the remote control to access these modes directly or navigate to them using the OSD. Thumbnail Mode Select Photo from the Home menu or press you to browse thumbnails of all photos in the current source (SD card, USB flash drive, etc.). -
Page 16: Photo View Mode
My Favorites.” b. Slideshow: Switch to Slideshow mode. c. Photo View: Switch to Photo View mode. d. Select Source: Select the source to browse thumbnails from. The available sources are: My Favorites (internal memory), SD/MS/MMC, CF and USB flash drive. Use the LEFT and RIGHT buttons to highlight the desired storage media and click OK or Exit : Click EXIT or... -
Page 17: Slideshow Mode
b. Thumbnail: Select this item or click c. Zoom: Select this item to choose between x1, x2 and x4 zoom modes in the Zoom submenu. You can also press can go back to Photo View mode by pressing EXIT or d. - Page 18 Switching to Thumbnail mode: Click OK or while viewing a slideshow to switch to Thumbnail mode. Options: This menu shows a list of options available in the Slideshow Mode: Thumbnail, Photo View, Background Music, Slideshow order, Slideshow Interval, Slideshow transition effects, Themes and Select Source.
- Page 19 Exit : Click EXIT or to go back to the Home menu.
-
Page 20: Music
Music Explorer Choose “Music” from the Home menu or press Explorer lets you browse for individual songs in specific folders. The directory path is shown at the top of the screen. In the Music Explorer you will see all file folders on the current storage device. Use the UP and DOWN buttons to move to the desired folder. -
Page 21: Music Player
Music Player In Music Player mode, the ID3 tag (album name, artist and song title) of the current file is displayed as a line of scrolling text at top of the screen. The progress bar in the middle and the digital readout at the very bottom of the screen show how much of the song has already been played. -
Page 22: Clock And Calendar
In the Clock and Calendar mode, your PF710 becomes an attractive desktop calendar and clock that lets you set important date reminders and display your favorite photos, too. Clock and Calendar The Clock and Calendar mode displays a monthly calendar and digital clock on the right-hand side of the screen and a selected photo or slideshow on the left. - Page 23 the one you want to modify. b. Use the UP or DOWN buttons to adjust the minute or hour value that you selected. The time format can be either “24H” or “AM/PM,” which can be set in “Options” -> “12H/24H”. c.
-
Page 24: Settings
In the Settings menu, you can inspect your PF710’s current device status – Product name, Firmware version, and free space of My Favorites (onboard memory). You can also adjust PF710’s interface settings like setting the clock and changing languages. Options Current firmware version... -
Page 25: Date/Time Setting
Date/Time Setting Use this function to adjust the date/time, set auto power on/off time, and enable or disable auto power on/off on the PF710 Set Time: Select Date/Time from the Settings menu, and use the UP or DOWN buttons to select between date, time, auto on, auto off or auto on/off timer. -
Page 26: Orientation
Orientation You can choose whether you want PF710 to display photos vertically or horizontally with this convenient function (note: the orientation setting only applies to Photo View, Thumbnail, and Slideshow modes.) There are two orientation modes that you can put your PF710 in: Landscape mode and Portrait mode. If you want to view your PF710 photos horizontally, you can set to Landscape mode to change the orientation of PF710. -
Page 27: Restore Defaults
4. The latest firmware version is available on the Transcend website. Note: Do not remove the power cord or any storage devices while the firmware is being upgraded. If firmware upgrade fails and the PF710 will not turn on, please contact Transcend customer support. -
Page 28: Troubleshooting
PF710 in for repair. If you are unable to remedy a problem from the following hints, please consult your dealer, service center, or local Transcend branch office. We also have FAQ and Support services on our websites. For any Hardware issues please consult the PF710 User’s Manual. -
Page 29: Specifications
100 ~ 240 V 1.0A, Output: 5V DC 2.0A DSC JPEG, motion JPEG, BMP(W:800 x H:600) MP3, WMA (No DRM support), WAV 32Kbps–320Kbps CE, FCC, BSMI Panel: 1-year, no more than 4 defect pixels Device: 2-years Memory Size Transcend P/N TS1GPF710 TS1GPF710C... -
Page 30: Warranty
Transcend is not responsible for recovering any data lost due to the failure of a hard drive device. Transcend’s PF710 must be used with devices that conform to the recommended industry standards. -
Page 31: Terminology
Terminology desktop ...7 Desktop...2 ® ™ ™ This is a single user stationary computer running the Windows , Mac , or Linux Operating System. driver...3 drivers...3 A software program that allows a hardware device to communicate with a computer operating system. FAQ ...24 Frequently Asked Questions.
