Page 1: Digital Photo Frame

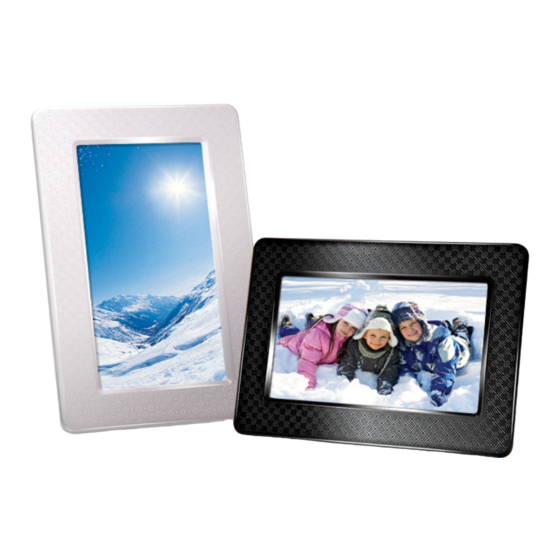

User’s Manual Digital Photo Frame PF705 TS-PF705B TS-PF705W (Version 1.1) -
Page 2: Table Of Contents
Introduction︱ ︱ ︱ ︱ ...2 Package Contents︱ ︱ ︱ ︱ ...2 Features︱ ︱ ︱ ︱ ...2 System Requirements︱ ︱ ︱ ︱ ...2 Safety Precautions︱ ︱ ︱ ︱ ...3 General Use ... 3 Cleaning ... 3 Backing Up Data ... 3 Getting Started︱... -
Page 3: Introduction
Introduction︱ ︱ ︱ ︱ Congratulations on purchasing Transcend’s PF705 Digital Photo Frame. Now you can easily display your entire photo collection at home or at the office. The Photo Frame can conveniently display digital photos stored on any USB flash drive or memory card. With its colorful animated user interface, the Photo Frame is easy to operate and fun to use. -
Page 4: Safety Precautions
Safety Precautions︱ ︱ ︱ ︱ These usage and safety guidelines are IMPORTANT! Please follow them carefully to ensure your own personal safety and help protect your Photo Frame from potential damage. General Use For indoor use only. • Avoid using or storing the Photo Frame in an extreme temperature environment. •... -
Page 5: Getting Started
Getting Started︱ ︱ ︱ ︱ 7” LCD Panel SD/SDHC/ MMC/ MS Slot Mini-B USB Port (PC Connection) DC Power Input USB Port (Flash Drives) Menu Button OK Button Navigation buttons Options Button Power Button Stand Attachment Hole Security Lock Attachment... -
Page 6: Setting Up The Photo Frame
Setting Up the Photo Frame Attach the Tabletop Stand to the back of the Photo Frame by screwing it clockwise into the Stand Attachment Hole shown above. Once the stand is attached, the Photo Frame may be positioned vertically or horizontally (Landscape or Portrait orientation) Connect the power adapter cable to the DC power input jack on your Photo Frame. -
Page 7: Using A Memory Card Or Usb Flash Drive
Using a memory card or USB flash drive Insert a memory card or USB flash drive into its appropriate slot on the Photo Frame. Once a memory card or USB flash drive is plugged in, the Photo Frame will automatically begin slideshow playback of all photos available on your memory card or flash drive. -
Page 8: Options Menu
Options Menu The Options menu allows access to additional functions that are available for the current mode. 1. Press to show the Options window. 2. Use the open its submenu. 3. To select a different option, press the scroll through the other available options, then press the currently highlighted option’s submenu on the right hand side. -
Page 9: Connecting To A Computer
Connecting to a Computer︱ ︱ ︱ ︱ To transfer pictures between a memory card connected to the Photo Frame and your computer, connect the Photo Frame to a USB port on your computer using the provided USB cable. Turn on the Photo Frame. Plug the small end of the USB cable into the Mini-B USB port located on the left side of the Photo Frame. -
Page 10: Mac ® Os 10.0 Or Later
*Note: E: and F: are example drive letters - the letters in your “My Computer” window may differ Proper removal of your Photo Frame (from Windows): Click once on the Removable Hardware icon The Safely Remove Hardware pop-up window will appear. Select it to continue. A window will appear stating, “The ‘USB Mass Storage Device’... - Page 11 WARNING! To prevent data loss, always follow the proper removal procedures when disconnecting the Photo Frame from your computer When Photo Frame is connected to a computer, it can only be used for transferring files. You will not be able to use any of the Photo Frame’s features at this time. Please disconnect your Photo Frame from the computer to resume normal viewing or listening.
-
Page 12: Photo Modes
Photo Modes︱ ︱ ︱ ︱ The Photo Frame has three basic modes – Thumbnail, Photo View and Slideshow. The Thumbnail mode lets you browse for specific photos, the Photo View mode is for displaying a single picture at a time, and the Slideshow mode will automatically display all available photos. - Page 13 Options: Sort By : Select sort by date or filename Date: Sort by create date of the file • Name: Sort by file name • Photo Repeat Mode: Adjusts the order photos are displayed when pressing Normal: Display all available photos sequentially. •...
- Page 14 Options for Selecting Multiple Photos: Select All: Select all items in current media source. • Deselect All: Deselect all items in current media source. • Select All On Page: Select all items on current page. • Deselect All On Page: Deselect all items on current page. •...
-
Page 15: Photo View Mode
Photo View Mode You can view, zoom-in, or rotate a single photo in Photo View mode. Use the the next or previous photo available. Options: Zoom: Select this item to enlarge the displayed image to twice its normal size (2x). To increase zoom to 4x, 8x, or to return to 1x normal viewing size, press the Rotate: Select this item and choose between clockwise 90 (Rotate function only enabled at 1x zoom) - Page 16 Calendar: Display or hide the on-screen calendar Select Source: Change the media source to browse photos from. Use the buttons to select one of the available storage devices and press...
-
Page 17: Slideshow Mode
Slideshow Mode This mode starts slideshow playback of all photos in the selected source. Slideshow mode will play based on the settings in the Options menu. Options: Photo Repeat Mode: Adjusts the order photos are displayed when pressing Normal: Display all available photos sequentially. •... - Page 18 Themes: This option lets you select various themes to complement your pictures while viewing in Slideshow or Photo View. Use the Clock, Valentine’s Day, New Year, Taiwan, Japan or Europe, then press Calendar: Display or hide the on-screen calendar Select Source: Change the media source to play slideshows from. Use the to select one of the available storage devices and press buttons to highlight None, Xmas, Halloween, to confirm.
-
Page 19: Calendar
Calendar︱ ︱ ︱ ︱ With Calendar mode, your Photo Frame becomes an attractive desktop calendar and clock that lets you set important date reminders and display your favorite photos, too. The Calendar mode displays a monthly calendar and digital clock at the bottom of the screen while displaying a photo or slideshow of your choice. The Calendar can be opened by selecting the Calendar option from the Main Menu. - Page 20 First Day of the Week: Set the calendar to display either “Sunday” or “Monday” as the first day of the week.
-
Page 21: Settings
Settings︱ ︱ ︱ ︱ The Settings menu includes advanced features that let you adjust the photo frame’s display, set the time & date, change languages, and even configure the photo frame to automatically turn on and off at certain times of the day. - Page 22 Brightness: press • Contrast: Press • Fullscreen: Press • original dimensions of the image on the screen. If enabled, Photo Frame will enlarge the photo to fit the screen, while preserving its original aspect ratio. Depending on its dimensions, some parts of the photo may not be displayed in fullscreen mode.
- Page 23 NOTE: The Photo Frame always preserves the original aspect ratio of all images based on each picture file’s orientation information (EXIF), and NEVER stretches them to fill the entire screen. An easy, distortion-free way to remove the black bars from the top/bottom or sides of an image is to use the Fullscreen option mentioned above, or the Zoom function.
- Page 24 Date / Time This option lets you adjust the current date & time and set your Photo Frame to automatically turn on and off every day at a specific time. The Auto-ON/OFF timer is a convenient way to save power at night. Select Date/Time from the Settings menu, and use the current date, current time, 12H/24H, auto-on, auto-off or auto-on/off timer.
- Page 25 the “Auto-ON/OFF” feature in: Settings > Date / Time > Auto ON/OFF. 3. After making adjustments, press Startup Mode This option lets you set the default mode (Slideshow, Photo View or Main Menu) that you want the Photo Frame to start using each time it is powered on. Select Startup mode from the Settings menu Use the buttons to select between Slideshow, Photo View or Main menu.
- Page 26 Restore Defaults This function is available if you want to reset your Photo Frame’s settings. Note: All settings that have been changed will return to the factory defaults. Select Restore defaults from the Settings menu. 2. Use the 3. Press to confirm.
-
Page 27: Troubleshooting
How can I display video files on my Photo Frame? The PF705 can only display photos, and does not support video or audio playback. Can I delete files on my USB flash drive or memory card with the Photo Frame? The Photo Frame cannot directly delete any files on a USB flash drive or memory card. - Page 28 Why does the time and date reset after unplugging the AC adapter? If you unplug the Photo Frame for a long time, its internal backup battery will eventually drain. Typically, the Photo Frame can keep your time and date for about 2~3 days after unplugging the AC power adapter.
-
Page 29: Specifications
Operating Temperature Image Formats: Certificates: Warranty: Ordering Information︱ ︱ ︱ ︱ Device Description PF705 – White PF705 – Black 7” 16:9 TFT LCD, 480x234 pixels 1x standard A-Type, 1x mini B-Type 8 rear-mounted buttons 205mm × 143mm × 29mm Input: 100V~ 240V 0.3A, Output: 5V DC 2.0A 0ºC (32ºF) ~ 40ºC (104ºF) -
Page 30: Recycling & Environmental Considerations
Recycling & Environmental Considerations︱ ︱ ︱ ︱ Recycling the Product (WEEE): Your product is designed and manufactured with high quality materials and components, which can be recycled and reused. When you see the crossed-out wheel bin symbol attached to a product, it means the product is covered by the European Directive 2002/96/EC: “Never dispose of your product with other household waste. -
Page 31: Transcend Limited Warranty
Customer Satisfaction. All Transcend information, Inc. (Transcend) products are warranted and tested to be free from defects in material and workmanship and to conform to the published specifications. During the warranty period should your Transcend Photo Frame fail under normal use in the recommended environment due to improper workmanship or materials, Transcend will repair the product or replace it with a comparable one.
