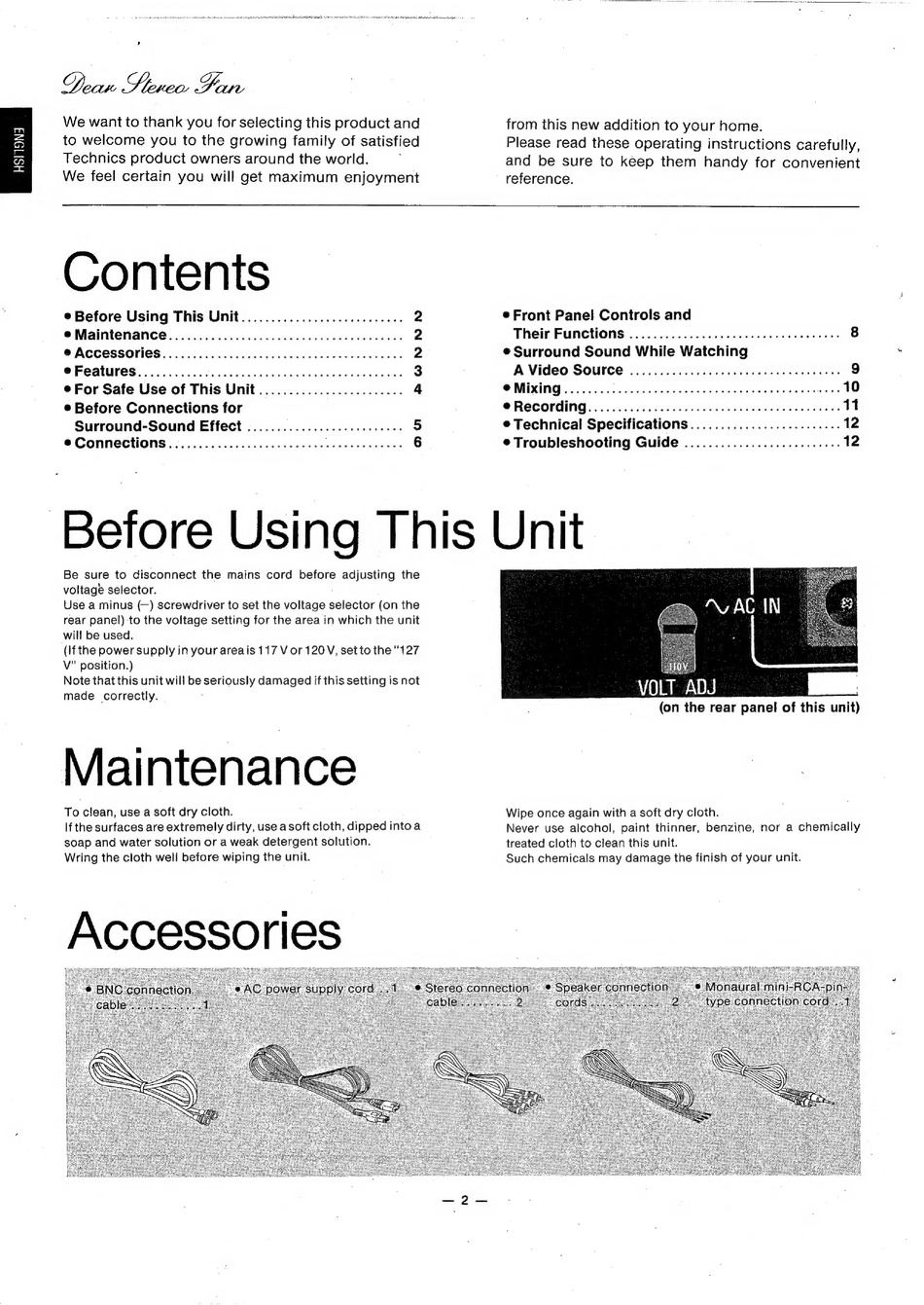

Technics SH-AV22 Operating Instructions Manual page 2

HSITONS
We want to thank you for selecting this product and
to welcome you to the growing family of satisfied
Technics product owners around the world.
We feel certain you will get maximum enjoyment
from this new addition to your home.
Please read these operating instructions carefully,
and be sure to keep them handy for convenient
reference.
Contents
¢ Before Using This Unit........................... 2
@ Maintenance..................... cece cece eee eee 2
PACCESSONOES 3-0 isselaes ceive daa w ak oeons sree Soe ess 2
© Features kccccncc chaise iiinwnadie iis ea ees 3
For Safe Use of This Unit........................ 4
¢ Before Connections for
Surround-Sound Effect .......................64. 5
®Connections.......................05- E d i agnd wheats 6
¢ Front Panel Controls and
Their Functions .....................0... 0. ces e eee 8
© Surround Sound While Watching
A Video Source .............. ccc cee eee eee 9
@ MIXING): 253 cad akon a tans eden e ele secaee we. 10
@ RECOMdINgG «00266 f2iic db ete ends aes 11
© Technical Specifications......................... 12
® Troubleshooting Guide .......................065 12
Before Using This Unit
Be sure to disconnect the mains cord before adjusting the
voltage selector.
Use a minus (—) screwdriver to set the voltage selector (on the
rear panel) to the voltage setting for the area in which the unit
will be used.
(If the power supply in your areais 117 V or 120V, setto the "127
V" position.)
Note that this unit will be seriously damaged if this setting is not
made correctly.
Maintenance
To clean, use a soft dry cloth.
If the surfaces are extremely dirty, use a soft cloth, dipped intoa
soap and water solution or a weak detergent solution.
Wring the cloth well before wiping the unit.
Accessories
(on the rear panel of this unit)
Wipe once again with a soft dry cloth.
Never use alcohol, paint thinner, benzine, nor a chemically
treated cloth to clean this unit.
Such chemicals may damage the finish of your unit.
