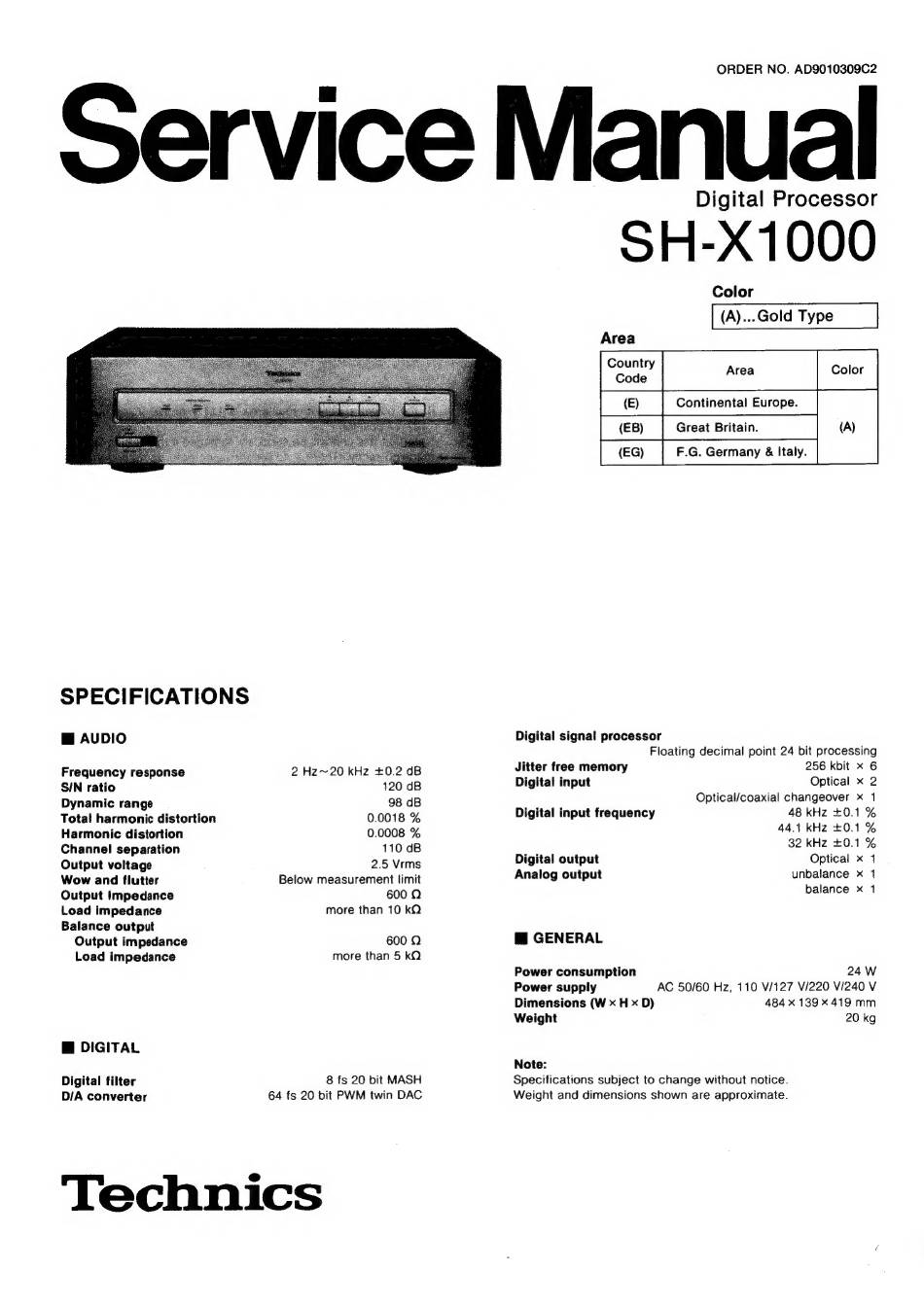

Technics SH-X1000 Service Manual

SPECIFICATIONS
@ AUDIO
Frequency response
SIN ratio
Dynamic range
Total harmonic distortion
Harmonic distortion
Channel separation
Output voltage
Wow and flutter
Output impedance
Load impedance
Balance output
Output impedance
Load impedance
@ DIGITAL
Digital filter
DIA converter
2 Hz~20 kHz +0.2 dB
120 dB
98 dB
0.0018 %
0.0008 %
110 dB
2.5 Vrms
Below measurement limit
600 QO
more than 10 kQ
600 Q
more than 5 kQ
8 fs 20 bit MASH
64 fs 20 bit PWM twin DAC
Technics
ORDER NO. AD9010309C2
Digital Processor
SH-X1000
Color
(A)...Gold Type
ea
Continental Europe.
(EB) Great Britain. (A)
(EG) F.G. Germany & Italy.
Area
Digital signal processor
Floating decimal point 24 bit processing
256 kbit x 6
Optical x 2
Optical/coaxial changeover x 1
48 kHz +0.1 %
44.1 kHz +0.1 %
32 kHz +0.1 %
Jitter free memory
Digital input
Digital input frequency
Digital output Optical x 14
Analog output unbalance x 1
balance x 1
@ GENERAL
Power consumption 24W
Power supply AC 50/60 Hz, 110 V/127 V/220 V/240 V
Dimensions (W x H x D) 484 x 139x419 mm
Weight 20 kg
Note:
Specifications subject to change without notice.
Weight and dimensions shown are approximate.
