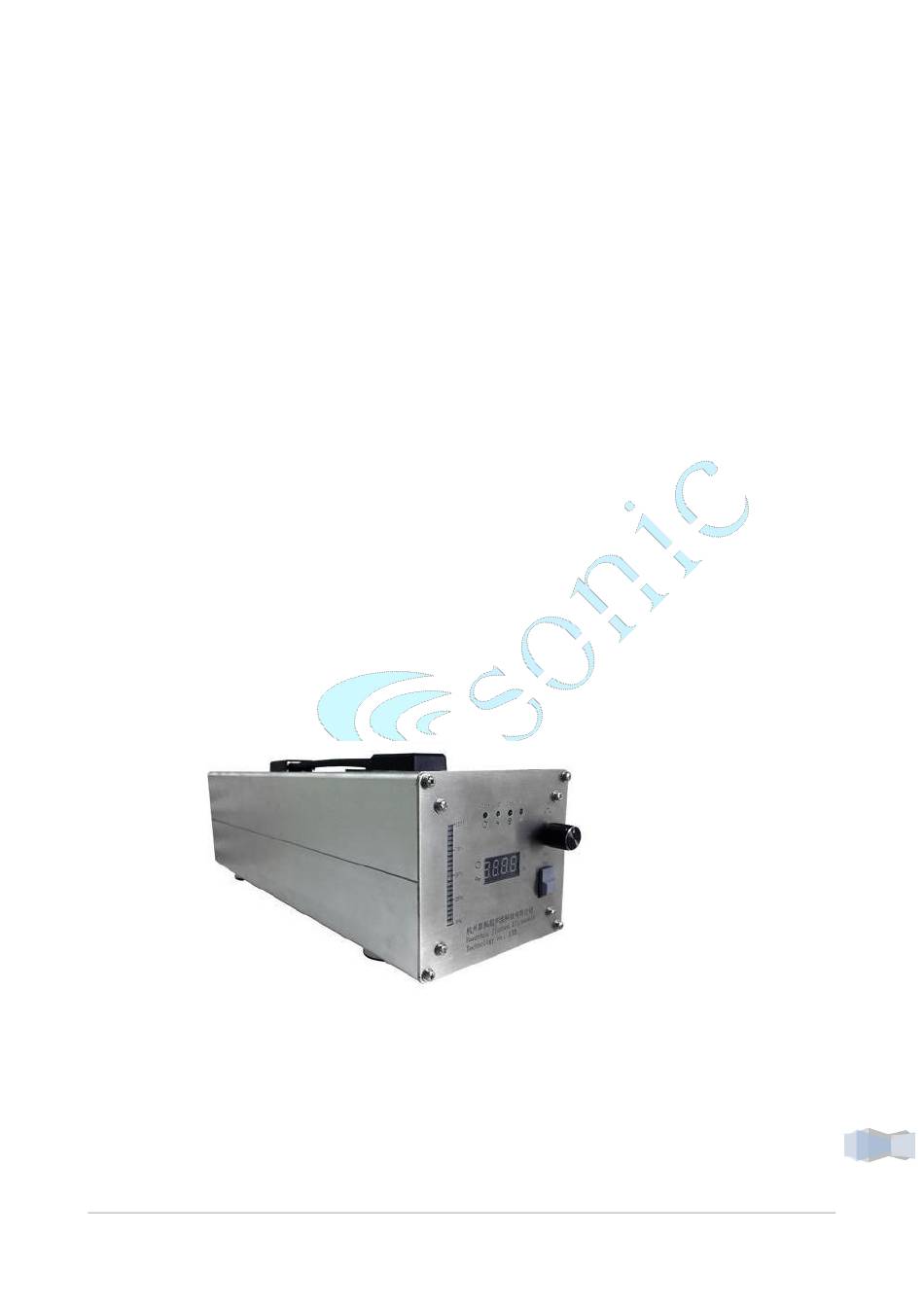

20K ULTRASONIC GENERATOR
（HC-CS2000C）
OPERATE MANUAL
First of all, thank you for purchasing our ultrasonic industrial grade ultrasonic equipment.
Please read this manual carefully before use. Please keep it in a safe place for future reference.
About this manual
一、
1. Unless otherwise stated, all sample operations in this manual assume that the device uses the initial
default settings.
2. The contents of this manual are subject to change without prior notice.
3. The displays and illustrations in this User's Guide (such as the initial values of each parameter) are for
illustrative purposes only and may differ from the actual items indicated.
1
Advertisement
Related Manuals for RPS sonic HC-CS2000C
Summary of Contents for RPS sonic HC-CS2000C
- Page 1 20K ULTRASONIC GENERATOR （HC-CS2000C） OPERATE MANUAL First of all, thank you for purchasing our ultrasonic industrial grade ultrasonic equipment. Please read this manual carefully before use. Please keep it in a safe place for future reference. About this manual 一、...
- Page 2 HC-CS2000C Digital Generator Initialization of the generator All initial parameters of this device have been set by the staff. ATTENTION: lease operate this equipment by professionals person, otherwise it will cause irreparable damage. 1. High voltage will be generated inside the device. To ensure safe use, pay attention to the following warnings: •...
-
Page 3: Power Supply Requirement
POWER SUPPLY REQUIREMENT: The power input standard is: single phase AC220V 50HZ/60HZ. Input power supply voltage fluctuation range: <10%. Input power grid harmonic content: <20%. Input supply current: <20A. Input power cable diameter: >2.5MM2. Equipment wiring diagram: There are two parts of this equipment that need to be wired by the user. The wiring is as follows: Diagram one：... - Page 4 Diagram two 1, DB9 female seat, this port is connected to the base of the power supply sound through the DB9 core wire. 2, 24V power supply terminal, this port provides a constant voltage of 24V, the maximum current of 100Ma.
- Page 5 and manual mode adjustment switching. The left led light bar shows the current power, and the right side spring switch realizes the sound wave detection. The upper right coding switch enables the selection and adjustment of parameters. State one (delay time adjustment): When the upper Delay light is on, it indicates that the current state is the delay time selected Decline Left-hand EDIT...
- Page 6 Decline Left-hand EDIT Increase Right-hand EDIT Press&Right-ha WELD Light To time model Short press EDIT nd EDIT Shine Press&Left-hand To energy model EDIT Long press EDIT Keep and exit State Three (Holding time adjustment): When the upper Hold light is on, it indicates that the current state is the holding time selected Decline Left-hand EDIT Increase...
- Page 7 When the upper AM light is on, it indicates that the current state is the amplitude selected Left-hand EDIT Decline Right-hand EDIT Increase AM Light Shine Shot press EDIT Short EDIT Edit next Keep and exit Long press EDIT State Five(Counter adjustment): When the upper AM light is on, it indicates that the current state is the amplitude selected...
- Page 8 Check the front NO. Left-hand EDIT Check the behind NO. Right-hand EDIT Short press EDIT Counter Light Press&Right-ha No meaning Shine nd EDIT Press&Left-hand Clear AS 0 EDIT Long press EDIT Keep and exit. Fault protection display and solution When the 4 lamps on and alarming, the generator into Protection status. The screen will show the error code E-01：Power over loading.
- Page 9 E-03：Frequency too low How to solve: Check mold connection. E-04：Equipment operation fault How to solve:Check mold connection and transducer E-05：Parameters read failed How to solve: close the equipment and open after one minute. E-06：loading error How to solve:check the transducer, change or connect again.
