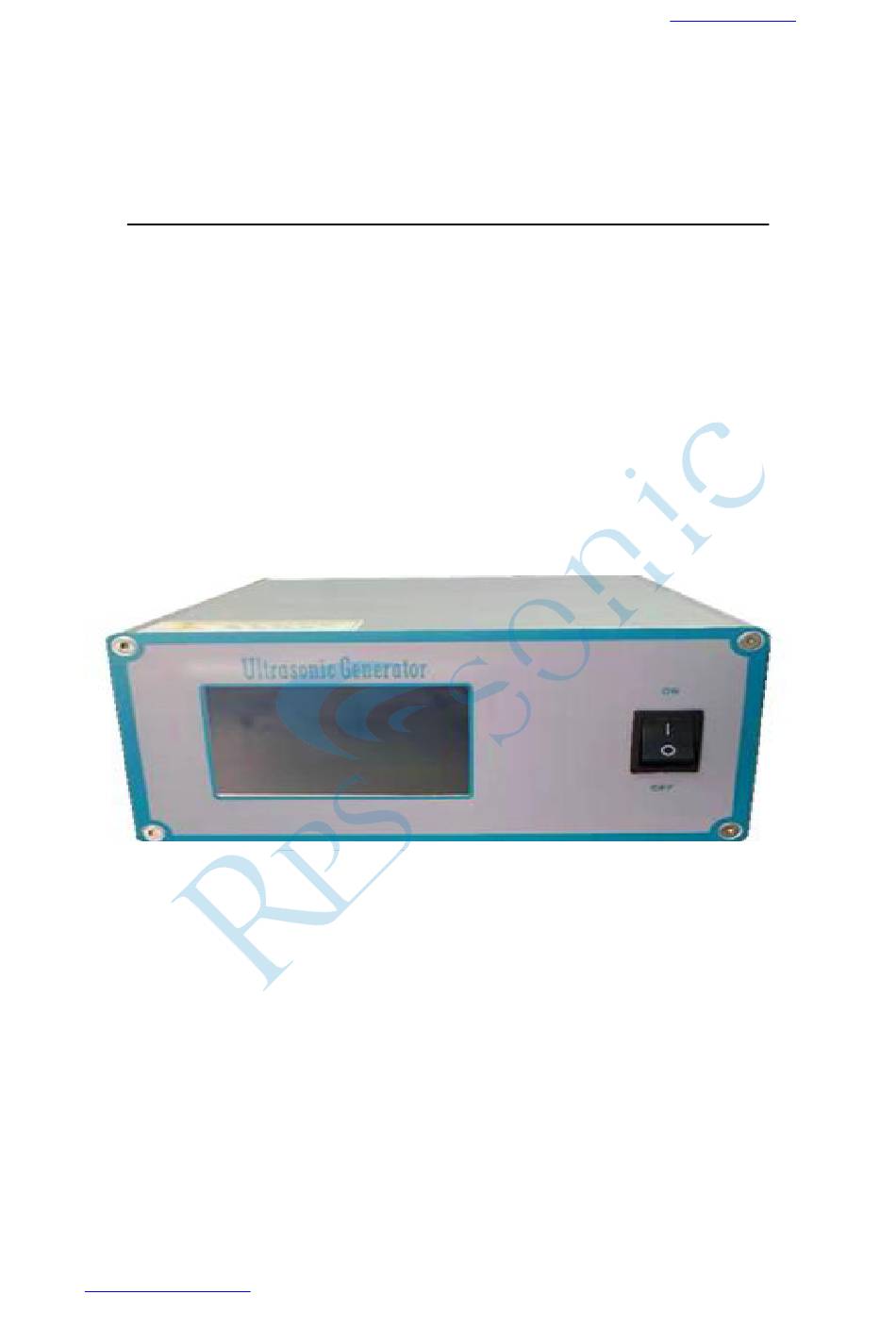

- Page 1 Digital ultrasonic generator HZ-2000 www.rps-sonic.com Digital ultrasonic generator Operate Manual 【Be sure to comprehend the contents before operation】 sales@xingultrasonic.com +86 15658151051 —— ——...
-
Page 2: Table Of Contents
Digital ultrasonic generator HZ-2000 www.rps-sonic.com Contents Preface....................3 Attentions.................... 4 Model information................5 Working principle................6 Operating instructions..............7 The wiring connect explanation:............16 Problem & Solution................17 sales@xingultrasonic.com +86 15658151051 —— ——... -
Page 3: Preface
Digital ultrasonic generator HZ-2000 www.rps-sonic.com Preface Thank you for using the HZ-2000 digital ultrasonic generator. This is an ultrasonic automatic chasing generator independently developed by our company. It uses automatic frequency tracking, real-time energy monitoring, power digital display, and touch screen interface control. Make the operator be familiar with the generator soon. -
Page 4: Attentions
Digital ultrasonic generator HZ-2000 www.rps-sonic.com you in 24 hours. Attentions 1. Before making any electrical connection, please make sure that the power supply is off. Use a grounded power socket to prevent electric shock. 2. The ultrasonic generator will generate high voltage, non-professionals do not open the casing! 3. -
Page 5: Model Information
Digital ultrasonic generator HZ-2000 www.rps-sonic.com 7. During the ultrasonic test, do not test with loading to avoid frequency search inaccurate and machine alarm! 8. The generator installed power protection fuse inside. Note: When replacing the fuse, firstly disconnect the input power. -
Page 6: Working Principle
Vibration, at this time the workpiece joint is solidified by melting, complete the processing procedure! The traditional ultrasonic generator is manually frequency-modulated, and HZ-2000 digital ultrasonic generator realizes automatic frequency tracking, real-time power display, and friendly communication of human-machine... -
Page 7: Operating Instructions
Digital ultrasonic generator HZ-2000 www.rps-sonic.com Operating instructions Open interface： A. The following parameters can be monitored in real time Power：Real-time power Energy：Real-time welding energy Time：Welding time Frequency：Real-time frequency QTY：Current processing quantity Time model：Work model sales@xingultrasonic.com +86 15658151051 —— ——... - Page 8 Digital ultrasonic generator HZ-2000 www.rps-sonic.com B. The following functions can be adjusted COUNT RESET 1： Touch（ ）Cursor can zero the current processing quantity Sonic Test 2： Touch （ ） cursor can read the current frequency. When this button is pressed, the frequency is searched first and then waved! Note: You cannot press this button with-loading! In order to avoid frequency search deviation.
- Page 9 Digital ultrasonic generator HZ-2000 www.rps-sonic.com This page is time model The following parameters can be adjusted according to the application. Description: Time model: when welding products, use melting time to control the welding time of the product Noted：when the delay time is 0，the delay time will be no ultrasonic.
- Page 10 Digital ultrasonic generator HZ-2000 www.rps-sonic.com Energy model：when welding products, the delay time and the holding time are also be set. When welding the product, the welding is balanced by the currently energy. When the welding energy is reached, the ultrasonic is stopped.
- Page 11 Digital ultrasonic generator HZ-2000 www.rps-sonic.com A. Parameter Setting Ultrasonic model Item Data Model Directly ultrasonic Scan ultrasonic Positional ultrasonic Directly ultrasonic ： Ultrasonic model directly Scan ultrasonic ： Frequency scan + ultrasonic model Positional ultrasonic：Reset+frequency scan+ultrasonic model Welding model ...
- Page 12 Digital ultrasonic generator HZ-2000 www.rps-sonic.com hardening time are used. When welding products, the set energy is used to control the ultrasonic. When the welding energy is reached, the ultrasonic is stopped. Continuous mode: When this mode is selected, the machine is long-vibration ultrasonic with no delay time and hardening time.
- Page 13 Digital ultrasonic generator HZ-2000 www.rps-sonic.com C. Data record D. Alarm record sales@xingultrasonic.com +86 15658151051 —— ——...
- Page 14 Digital ultrasonic generator HZ-2000 www.rps-sonic.com E. language selection There are only Chinese and English version, if you required , the Chinese can be removed also. Ultrasonic generator rear panel schematic: sales@xingultrasonic.com +86 15658151051 —— ——...
-
Page 15: The Wiring Connect Explanation
Digital ultrasonic generator HZ-2000 www.rps-sonic.com Power supply: 220V in stocks if you need 110V, 3days for customize Control: Control wire output (including start stop wire, DC 24V solenoid valve wire, etc.). The wiring connect explanation: sales@xingultrasonic.com +86 15658151051 —— ——... - Page 16 Digital ultrasonic generator HZ-2000 www.rps-sonic.com Input (Db9connect drawing) Data: 232 communication output (communication port with devices such as touch screen). 2：TXD 3：RXT 5：GND Output: Positive: High frequency line positive output negative: High frequency line negative output. (Note: Do not reverse the positive and negative, prevent high voltage electric injury!) sales@xingultrasonic.com...
-
Page 17: Problem & Solution
Digital ultrasonic generator HZ-2000 www.rps-sonic.com Problem & Solution First: When the frequency can not be searched, please first remove the h orn, check whether the frequency of the horn is within the scope of the machine search. Second: When the machine alarms, please check whether there are crac... - Page 18 Digital ultrasonic generator HZ-2000 www.rps-sonic.com 7: Whether the shape and size of rubber parts are deformed or not. 8: Surface cleaning and treatment (as baking paint or electroplating). 9: Energy transferred to the adhesive. 10: Fusion of plastics of different materials.
