Summary of Contents for Power Acoustik USW-80L

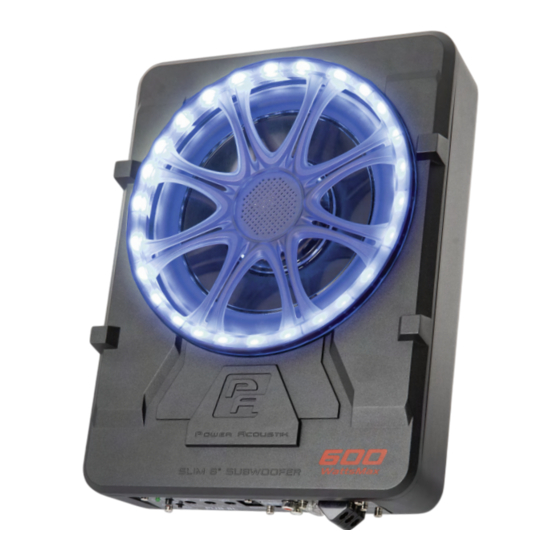

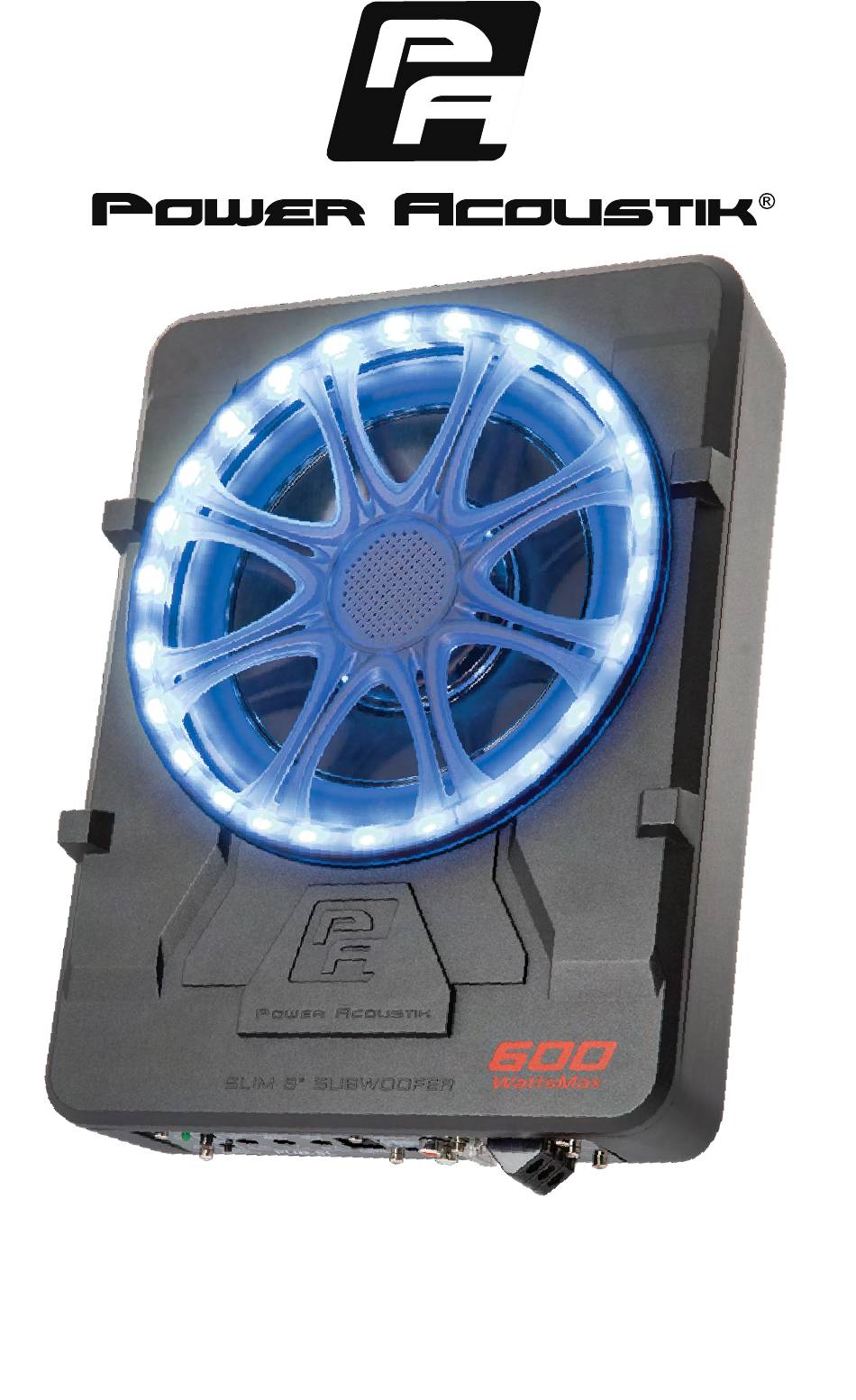

- Page 1 USW-80L 8" POWERED SUBWOOFER Before attempting to connect,operate or test the product,please read the instructions completely.
- Page 2 FAULT 50Hz 150Hz 12dB +12V COLOR MODE LOW LEVEL USW-80L A.POWER STA.US LED F.INPUT GAIN CONTROL When powered, this bi-color LED glows green After you have installed your system,turn this control to minimum. Indicates normal working status. if one of protection circuit opens, it will become Red.
- Page 3 COLOR MODE LOW LEVEL USW-80L The high level input(s)should only be used when your receiver lacks RCA outputs. If the RCA outputs are not present,connect the speaker outputs from the receiver to the high level input connector of the amplifier.Be sure to observe polarity to avoid audio phase problems.
- Page 4 PHASE FUSE REMOTE HIGH LEVEL BASS INPUT POWER PASS BOOST GAIN FAULT 50Hz 150Hz 12dB +12V COLOR MODE LOW LEVEL USW-80L POWER INPUTS PREAMP PHASE FUSE REMOTE HIGH LEVEL BASS INPUT POWER PASS BOOST GAIN FAULT 50Hz 150Hz 12dB +12V...
- Page 5 HIGH LEVEL BASS INPUT POWER PASS BOOST GAIN FAULT 50Hz 150Hz 12dB +12V COLOR LOW LEVEL MODE USW-80L MODEL: PUB-8L RMS power 100w <0.4% Signal-to-noise ratio >90dB Frequency response 20Hz - 150Hz Input sensitivity,high level 0.9V Input sensitivity,low level 300mV...
-
Page 6: Low Output
If you experience operation or performance problems with this product,compare your installation with the electrical wiring diagram on the previous pages.If problems persist, read the following troubleshooting tips which may help eliminate the problems. SYMPTOM POSSIBLE REMEDY Amplifier will not Check to make sure you have a good ground connection.
