Summary of Contents for THORLABS PDF10 Series

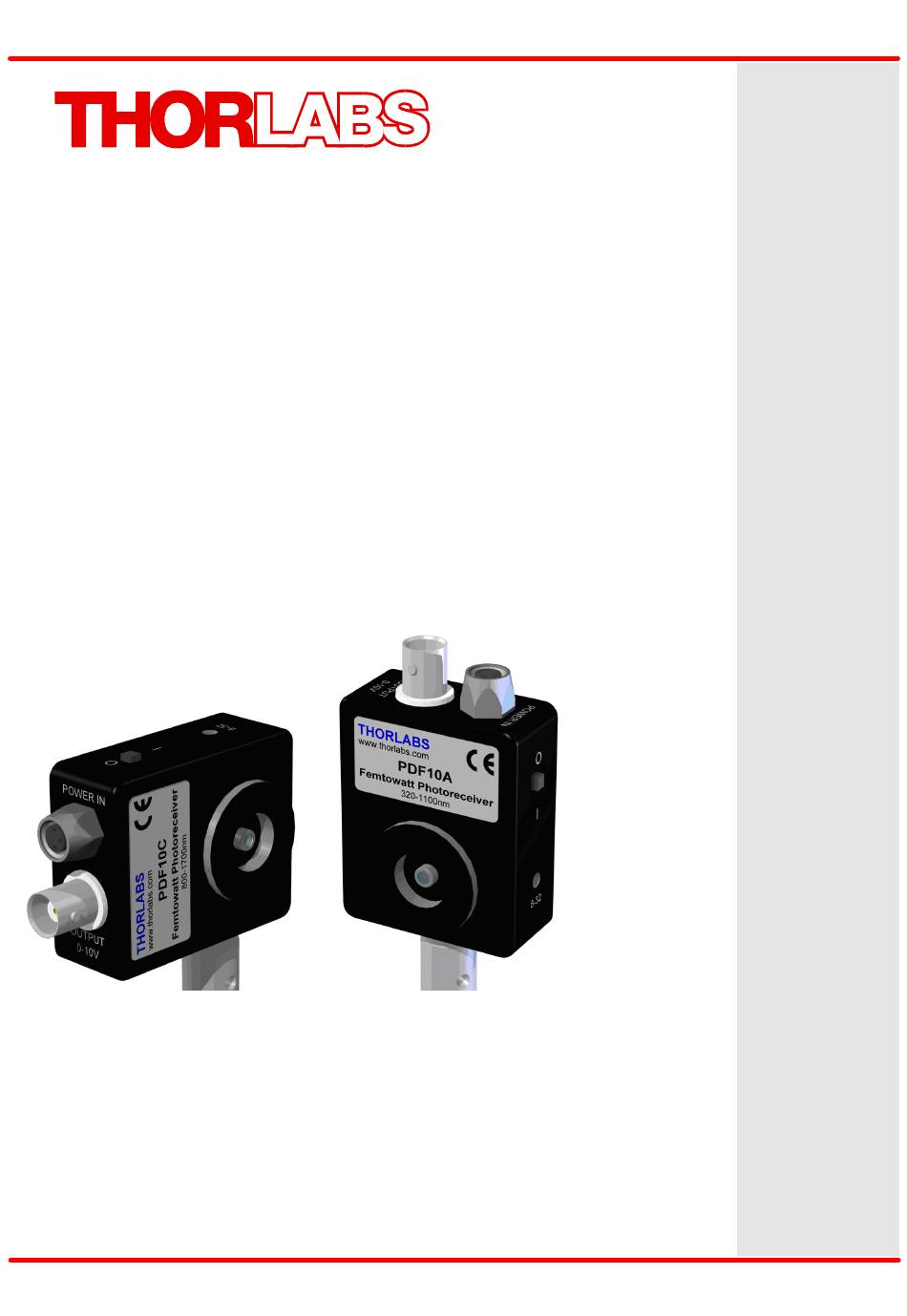

- Page 1 Femtowatt Photoreceiver PDF10x Operation Manual 2018...
- Page 2 Version: Date: 05-Dec-2018 Copyright © 2018 Thorlabs...
-
Page 3: Table Of Contents
4 Maintenance and Service 4.1 Recommendations 5 Appendix 5.1 Technical Data 5.1.1 PDF10A 5.1.2 PDF10C 5.2 Dimensions 5.3 Certifications and Compliances 5.4 Warranty 5.5 Exclusion of Reliability and Copyright 5.6 Thorlabs 'End of Life' Policy (WEEE) 5.7 Thorlabs Worldwide Contacts... -
Page 4: Foreword
Paragraphs preceded by this symbol explain hazards that could damage the instrument and the connected equipment or may cause loss of data. Note This manual also contains "NOTES" and "HINTS" written in this form. Please read this advice carefully! © 2018 Thorlabs... -
Page 5: General Information
The new slim line housing includes a removable threaded coupler that is compatible with a number of Thorlabs 1” and ½” threaded accessories. This allows convenient mounting of ex- ternal optics, filters, apertures or fiber adapters, as well as providing an easy mounting mechan- ism using the Thorlabs cage assembly accessories. -
Page 6: Ordering Codes And Accessories
FC/PC Fiber Adapter Cap with Internal SM1 (1.035"-40) Thread S120-SMA SMA Fiber Adapter Cap with Internal SM1 (1.035"-40) Thread In general, all Thorlabs internal SM1 (1.035"-40) and external SM05 (0.535"-40) threaded ac- cessories are compatible with the PDF10x. Please refer to www.thorlabs.com for further inform- ation. -
Page 7: Setting Up
Please check prior to operation, if the indicated line voltage range on the power supply matches with your local mains voltage! If you want to use your own power supply, you can ask Thorlabs for an appropriate power connector cable. -
Page 8: Operating Instruction
In case of open beam, make sure that the beam is aligned properly to the detector input. If ne- cessary, use a focusing lens in front of the detector. If the PDF10x is used in fiber based applications we recommend a Thorlabs fiber connector ad- apter for coupling between fiber and PDF10x. Please see Ordering Codes and Accessories for details. -
Page 9: Operating Elements
So, prior to connect the external power supply, please make sure the power-on switch on your PDF10x is in OFF position ("O"). © 2018 Thorlabs... -
Page 10: Properties And Specifications
PDF10x Properties and specifications Responsivity The Thorlabs PDF10x delivers an output voltage, which is a function of incident light power  , detector responsivity ) and transimpedance gain G given by:  The responsivity ) for a given wavelength can be read from the diagrams (see technical... - Page 11 PDF10x so it can fit into tight spaces. For maximum flexibility the PDF10x has three 8-32 (M4 for /M metric version) tapped mounting holes to mount the unit to a post or pedestal. Possible mounting options for PDF10x © 2018 Thorlabs...
-
Page 12: Maintenance And Service
Another critical point can be electrostatic coupling of electrical noise associated with ground loops. In most cases an electrically isolated post (see Thorlabs parts TRE or TRE/M) will sup- press electrical noise coupling. You should always try to identify the electrical noise sources and increase the distance to the PDF10x. -
Page 13: Appendix
Maximum Output Voltage ± DC-Offset Electrical Output < 150mV Size 53.4 x 43.2 x 21 mm³ ± Power Supply 12V, 250 mA All technical data are valid at 23 ± 5°C and 45 ± 15% rel. humidity (non condensing) © 2018 Thorlabs... -
Page 14: 5.1.1 Pdf10A
PDF10x 5.1.1 PDF10A PDF10A Detector Responsivity PDF10A output frequency response © 2018 Thorlabs... - Page 15 5 Appendix PDF10A output time response PDF10A spectral noise © 2018 Thorlabs...
-
Page 16: 5.1.2 Pdf10C
PDF10x 5.1.2 PDF10C PDF10C detector responsivity PDF10C output frequency response © 2018 Thorlabs... - Page 17 5 Appendix PDF10C output time response PDF10C spectral noise © 2018 Thorlabs...
-
Page 18: Dimensions
PDF10x Dimensions © 2018 Thorlabs... -
Page 19: Certifications And Compliances
Compliance demonstrated using high-quality shielded interface cables shorter than or equal to 3 meters. Emissions, which exceed the levels required by these standards, may occur when this equipment is connected to a test object. Replaces 73/23/EEC, amended by 93/68/EEC © 2018 Thorlabs... -
Page 20: Warranty
Thorlabs warrants material and production of the PDF10x for a period of 24 months starting with the date of shipment. During this warranty period Thorlabs will see to defaults by repair or by exchange if these are entitled to warranty. -
Page 21: Thorlabs 'End Of Life' Policy (Weee)
Waste treatment on your own responsibility If you do not return an “end of life” unit to Thorlabs, you must hand it to a company specialized in waste recovery. Do not dispose of the unit in a litter bin or at a public waste disposal site. -
Page 22: Thorlabs Worldwide Contacts
PDF10x Thorlabs Worldwide Contacts For technical support or sales inquiries, please visit us at www.thorlabs.com/contact for our most up-to- date contact information. USA, Canada, and South America UK and Ireland Thorlabs, Inc. Thorlabs Ltd. sales@thorlabs.com sales.uk@thorlabs.com techsupport@thorlabs.com techsupport.uk@thorlabs.com Europe Scandinavia... - Page 24 www.thorlabs.com...
