NC-link NC-AP211 How To Configure page 2

LED Display instruction:
2.
All devices are in Slave AP(Client) Mode in default, the IP address is 192.168.188.253;
Configure the Point to Point (PTP) or Point to Multi Point (PTMP) connection, Slave(client) side only
need to press "Reset" button.
In 5G Outdoor CPE, the default channel is 149; In 2.4G outdoor CPE, the default channel is 7;
Picture showed as follow:
Config Master AP change the mode to H (Master).
1)
Press "F" button, when "C" is flashing, press "S" button, change "C" to "H", and then press "F" button 4
times, when all the digits are flashing, it means change and save successfully.
Establish Connection
2)
Press Master AP 's "Reset" button, and press Slave AP's "Reset" button within 60 seconds
(If PTMP, maximum is 1 to 4; Press Master AP's "Reset" button, and press all the Slave APs's "Reset"
button within 60 seconds).
When LED display show
seconds;
Connection Status
3)
When connection success, the LED display will show CPE's signal strength; We can press "S" button to
view CPE's IP address, channel and signal strength;
If connection fail, the LED display show as below, will back to default page after 10 seconds.

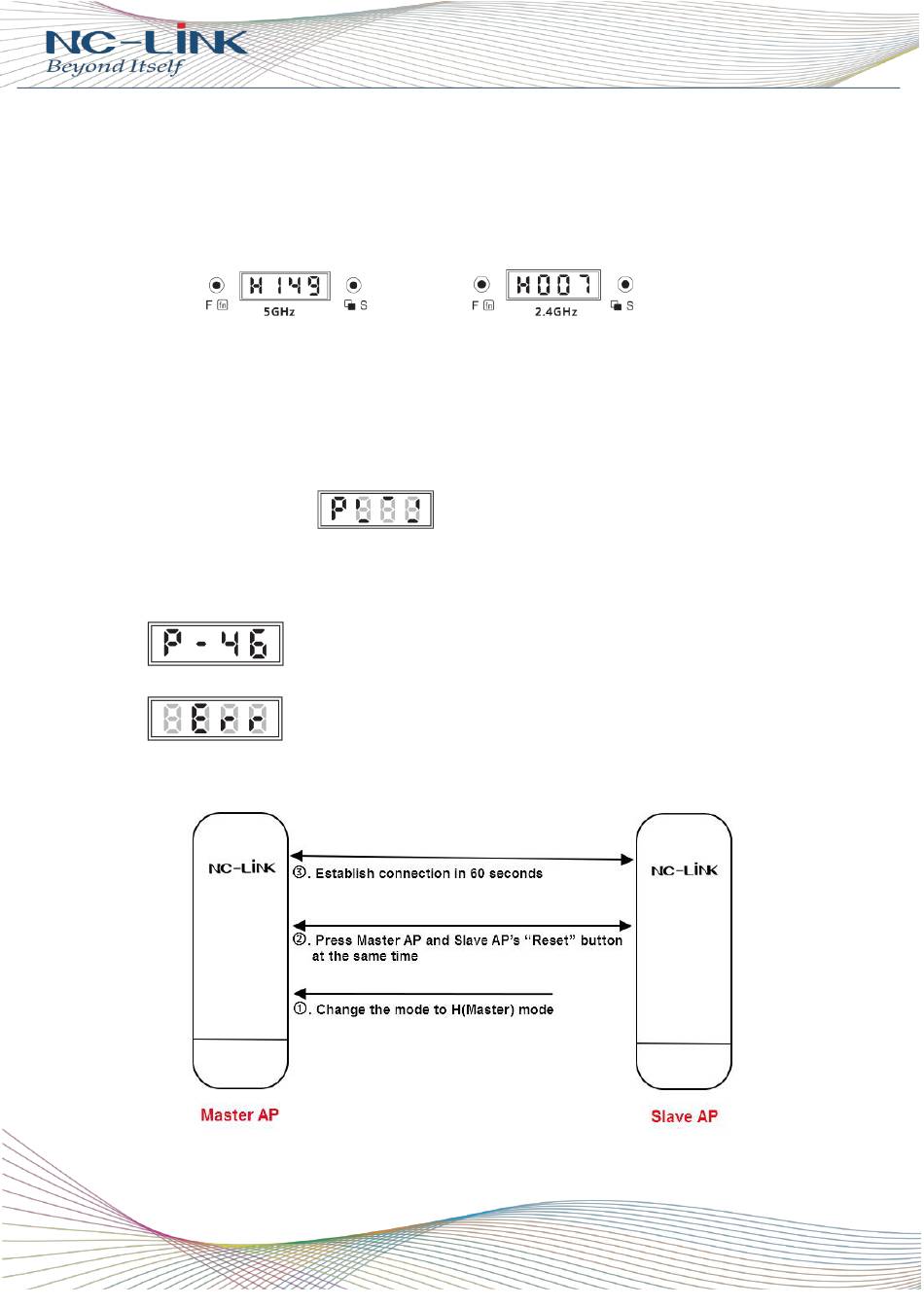

Config and connection as below pictures:
,, mean APs are connecting, should be connected in 60
