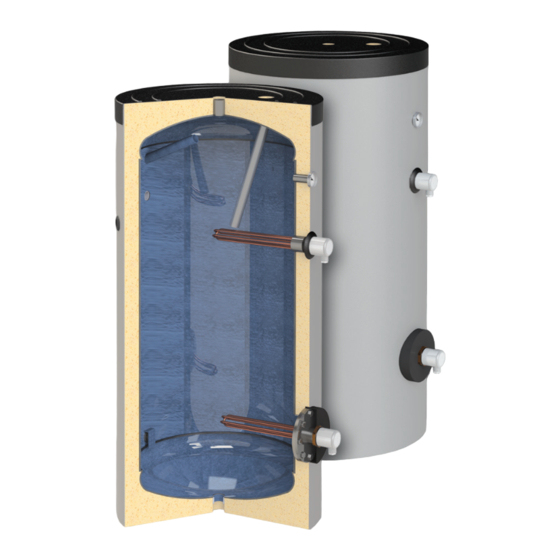

- Page 1 SOLAR WATER HEATERS series S Vertical and Horizontal Modifications 150 L, 200 L, 300 L, 400 L, 500 L, 750 L, 1000 L, 1500 L, 2000 L SОN - SN - with two coils SEL - with one coil without coil INSTALLATION and OPERATION MANUAL Version 2.0...
-
Page 2: Table Of Contents
INSTALLATION and OPERATION MANUAL Table of contents INSTRUCTION TO INSTALLER ................3 DESCRIPTION OF WATER TANK ................4 CONNECTING OF SAFETY RELIEF VALVE TO WATER TANK........5 ANTI-CORROSION PROTECTION -MAGNESIUM ANODE........5 TECHNICAL PARAMETERS - VERTICAL MODIFICATIONS ........6 5.1. SEL - withhout coil....................6 5.2. -
Page 3: Instruction To Installer
INSTALLATION and OPERATION MANUAL • Thermal insulation of the room. This provides efficiency of the appliance and prevents the water from freezing. 1.2. Requirements for installation • The length of connecting pipes between the Dear Customers, water tank and consumer must be as short as We strongly hope that the appliance you possible. -
Page 4: Description Of Water Tank
2. DESCRIPTION OF WATER TANK. heating element to the electric power supply must be done by a qualified The water heaters S series are used for electricians. producing of domestic hot water (DHW). When connect the heating element to the electric network, make sure SEL models, the heat source is an electric that it is properly grounded. -
Page 5: Connecting Of Safety Relief Valve To Water Tank
INSTALLATION and OPERATION MANUAL Screws with rubber heads are mounted at the bottom of the vertical water tank / 150 to 500 l / - use to level the tank. 3. CONNECTING OF SAFETY RELIEF VALVE TO WATER TANK Legend: 1. -
Page 6: Technical Parameters - Vertical Modifications
INSTALLATION and OPERATION MANUAL 5. TECHNICAL PARAMETERS - VERTICAL MODIFICATIONS 5.1. SEL - withhout coil. SEL 150 SEL 200 SEL 300 SEL 400 SEL 500 Capacity Height / Min. vertical clearance H, mm 1070/1210 1340/1460 1420/1580 1490/1670 1720/1890 Diameter D, mm Ø... - Page 7 INSTALLATION and OPERATION MANUAL D, ø SEL 150-2000 SEL 150-300 UO 1 UO2/3 SEL 400-500 SEL 750-1000 SEL 1500-2000 SEL 750 SEL 1000 SEL 1500 SEL 2000 Capacity 1000 1500 2000 Height / Min. vertical clearance H, mm 2000/2030 2050/2080 2310/2370 2310/2370 Diameter...
-
Page 8: Sn - With One Coil
INSTALLATION and OPERATION MANUAL 5.2. SN - with one coil SN 150 SN 200 SN 300 SN 400 SN 500 Capacity Height / Min. vertical clearance H, mm 1070/1210 1340/1460 1420/1580 1490/1670 1720/1890 Diameter D, mm Ø 560 Ø 560 Ø... - Page 9 INSTALLATION and OPERATION MANUAL UO2/3 SN 750-1000 SN 1500-2000 SN 750 SN 1000 SN 1500 SN 2000 Capacity 1000 1500 2000 Height / Min. vertical clearance H, mm 2000/2030 2050/2080 2310/2370 2310/2370 Diameter D, mm Ø 950 Ø 1050 Ø 1050 Ø...
-
Page 10: Sоn - With Two Coils
INSTALLATION and OPERATION MANUAL 5.3. SОN - with two coils. SON 150 SON 200 SON 300 SON 400 SON 500 Capacity Height / Min. vertical clearance H, mm 1070/1210 1340/1460 1420/1580 1470/1670 1720/1890 Diameter D, mm Ø 560 Ø 560 Ø... - Page 11 INSTALLATION and OPERATION MANUAL SON 750-1000 SON 1500-2000 SON 750 SON 1000 SON 1500 SON 2000 Capacity 1000 1500 2000 Height / Min. vertical clearance H, mm 2000/2030 2050/2080 2310/2370 2310/2370 Diameter D, mm Ø 950 Ø 1050 Ø 1050 Ø...
-
Page 12: Sоn Prl- With Parallel Coils
INSTALLATION and OPERATION MANUAL 5.4. SОN PRL - with two parallel coils. SON PRL 200 SON PRL 300 SON PRL 500 Capacity Height / Min. vertical clearance H, mm 1340/1460 1420/1580 1720/1890 Diameter D, mm Ø 560 Ø 660 Ø 750 Insulation 50 mm rigid PPU Oper. -
Page 13: Technical Parameters - Horizontal Modifications
INSTALLATION and OPERATION MANUAL 6. TECHNICAL PARAMETERS - HORIZONTAL MODIFICATIONS. 6.1. H SEL - without coil. HSEL 200 HSEL 300 HSEL 500 HSEL 1000 HSEL 1500 Capacity 1000 1500 Height / Length H, L, mm 695/1340 790/1340 890/1710 1190/2080 1190/2380 Diameter D, mm Ø... -
Page 14: H Sn - With One Coil
INSTALLATION and OPERATION MANUAL 6.2. H SN - with one coil. 1000 1500 Capacity 1000 1500 Height / Length H, L, mm 695/1340 790/1410 890/1710 1190/2080 1190/2380 Diameter D, mm Ø 560 Ø 660 Ø 750 Ø 1050 Ø 1050 Insulation 50 mm rigid PPU 100 mm soft PРU, removable... -
Page 15: H Sоn - With Two Coils
INSTALLATION and OPERATION MANUAL 6.3. H SОN - with two coils. HSON HSON HSON HSON 1000 1500 Capacity 1000 1500 Height / Length H, L, mm 790/1410 890/1710 1190/2080 1190/2380 Diameter D, mm Ø 660 Ø 750 Ø 1050 Ø 1050 Insulation 50 mm rigid PPU 100 mm soft PРU, removable... -
Page 16: Transport And Packaging
INSTALLATION and OPERATION MANUAL changes, especially if they are not made by au- 7. TRANSPORT AND PACKAGING thorized after-sale service personnel of Man- ufacturer. We recommend to transport the water tank to Testing and operation pressures greater the installation site in its packaging placed on that values established by Manufacturer and the pallet, and stretch foil. -
Page 17: Recycling And Waste Disposal
INSTALLATION and OPERATION MANUAL the document proving the purchase of the wa- ty for indirect damages such as loss of data at ter heater (invoice) with the date of purchase information applications, loss of production, in it. thermal variations at the service, etc. which 8.3.2.) After receiving the claim form, Man- do not violate the applicable regulations of any ufacturer considers it and makes decision... - Page 18 INSTALLATION and OPERATION MANUAL...
