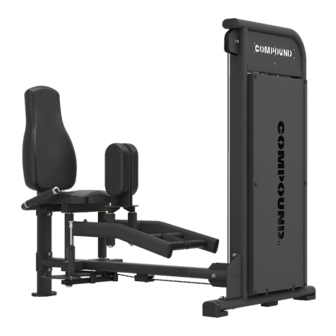

Adductor/abductor machine
Hide thumbs Also See for PLATINUM Series:

Advertisement

Quick Links

Download this manual
ASSEMBLY INSTRUCTIONS
ADDUCTOR
ADDUCTOR /
ABDUCTOR PIN LOADED
CAUTION: Read all precautions and instructions before using
this equipment. Save this manual for future reference.
CAUTION: Read all precautions and instructions before
using this equipment. Save this manual for future reference.
P L A T I N U M S E R I E S
ABDUCTOR MACHINE
S K U : C P L - A A M - 1 0 8 5
CPL-AAM-1085
COMPOUND.
F I T N E S S
E Q U I P M E N T

Advertisement

loading
Need help?

Need help?

Do you have a question about the PLATINUM Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for COMPOUND PLATINUM Series

Summary of Contents for COMPOUND PLATINUM Series

  • Page 1 ABDUCTOR PIN LOADED CAUTION: Read all precautions and instructions before using this equipment. Save this manual for future reference. COMPOUND. CAUTION: Read all precautions and instructions before using this equipment. Save this manual for future reference. F I T N E S S...
  • Page 2 CONTENTS General warnings and maintenance advice Explained as a series of steps,with each step containing: ● Pictures,descriptions and quantities of the parts required ● Notes ● Diagram showing how the parts fit together t s i...
  • Page 3 Assembly Instructions Before Your Begin This exercise equipment is built for optimum safety. Be sure to read the entire manual before you assemble or operate your equipment. Please note the following safety precautions: 1. Keep children and pets away from the equipment at all times. Do not leave children unattended in the same room with the equipment.
  • Page 4 INFORMATION STEP 1 ● We recommend you have someone assist you in lifting and assembling your gym. ● Follow these steps carefully and it will make it easier to assemble your gym.
  • Page 5 STEP 2 SC10-5...
  • Page 6 STEP 3...
  • Page 7 STEP 4 SC10-15 SC10-5...
  • Page 8 STEP 5 S8-6 H6-4 NOTE 1: please clean the weight plates Before sticking the weight labels , and avoid touching the adhesive of the sticker. NOTE 2 : If the movement of the weight stack is not smooth during exercising,please lubricate the guide rods.
  • Page 9 STEP 6 A10-9 SC10-10 H10-9 SC8-3 SC10-9 SC10-23...
  • Page 10 STEP 7...
  • Page 11 STEP 8 C5-4 C5-4 H6-4...
  • Page 12 PREASSEMBLED STEP SC8-3 A8-5 SC8-3 SC8-4 A8-5 SC8-4 SC8-3 S5-1 S5-1 S5-1 H6-4 A8-3 SC10-4 Right Left A10-4...

  • Page 13: Parts List

    PARTS LIST PART# DESCRIPTION PART# DESCRIPTION Weight Stack Frame Top Frame Small Pulley Back Pad Frame Big Pulley Bottom Frame F50 Cap Left Swing Group D25 Cap Right Swing Group PT50X100 Cap Leg Pad Frame PT40X80 Cap Seat Pad Frame Buffer Bottom Swing Group Rubber Spacer...

This manual is also suitable for:

Cpl-aam-1085
