Uputstvo za upotrebu (EN)

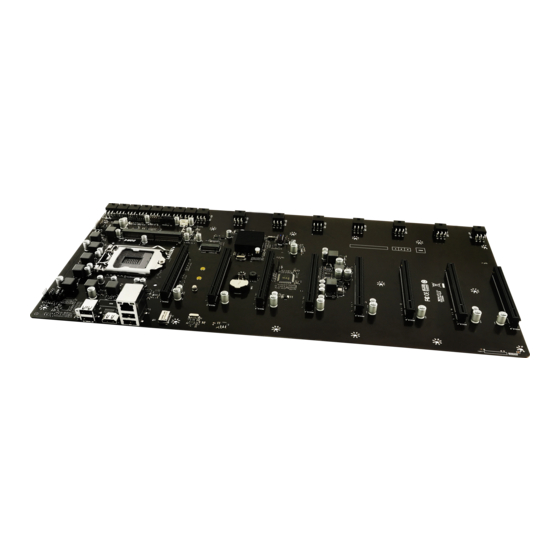

BIOSTAR TB360-BTC D+ matična ploča
Tehnoteka je online destinacija za upoređivanje cena i karakteristika bele tehnike,
potrošačke elektronike i IT uređaja kod trgovinskih lanaca i internet prodavnica u Srbiji.
Naša stranica vam omogućava da istražite najnovije informacije, detaljne karakteristike
i konkurentne cene proizvoda.
Posetite nas i uživajte u ekskluzivnom iskustvu pametne kupovine klikom na link:
https://tehnoteka.rs/p/biostar-tb360-btc-d-maticna-ploca-akcija-cena/
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Biostar TB360-BTC D+
Summary of Contents for Biostar TB360-BTC D+
- Page 1 Uputstvo za upotrebu (EN) BIOSTAR TB360-BTC D+ matična ploča Tehnoteka je online destinacija za upoređivanje cena i karakteristika bele tehnike, potrošačke elektronike i IT uređaja kod trgovinskih lanaca i internet prodavnica u Srbiji. Naša stranica vam omogućava da istražite najnovije informacije, detaljne karakteristike i konkurentne cene proizvoda.
-
Page 2: Fcc Information And Copyright
FCC Information and Copyright This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. -
Page 3: Table Of Contents
Table Of Contents FCC Information and Copyright ������������������������������������������������������������������������������� 1 Chapter 1: Introduction ������������������������������������������������������������������������������������������� 3 1.1 Before You Start ........................3 1.2 Package Checklist ........................ 3 1.3 Specifications ........................4 1.4 Rear Panel Connectors ......................5 1.5 Motherboard Layout ......................6 Chapter 2: Hardware Installation �����������������������������������������������������������������������������... -
Page 4: Chapter 1: Introduction
TB360-BTC D+ Chapter 1: Introduction 1�1 Before You Start Thank you for choosing our product. Before you start installing the motherboard, please make sure you follow the instructions below: • Prepare a dry and stable working environment with sufficient lighting. • ... -
Page 5: Specifications
7x System Fan Connector (SysFan 6/ SysFan 7 Without monitoring) 2x Front Panel Header 1x Clear CMOS Header Form Factor 485mm x 235mm Windows 10(64bit) OS Support * Biostar reserves the right to add or remove support for any OS with or without notice. 4 | Chapter 1: Introduction... -
Page 6: Rear Panel Connectors
TB360-BTC D+ 1.4 Rear Panel Connectors USB2.0 HDMI USB2.0 x2 USB2.0 Note » HDMI port only works with an Intel® integrated Graphics Processor. » Maximum resolution HDMI: 4096 x 2160 @24Hz Chapter 1: Introduction | 5... -
Page 7: Motherboard Layout
1.5 Motherboard Layout Note » represents the 1st pin. 6 | Chapter 1: Introduction... -
Page 8: Chapter 2: Hardware Installation
TB360-BTC D+ Chapter 2: Hardware Installation 2.1 Install Central Processing Unit (CPU) Step 1: Locate the CPU socket on the motherboard Note » Remove pin cap before installation, and make good preservation for future use. When the CPU is removed, cover the pin cap on the empty socket to ensure pin legs won’t be damaged. » The motherboard might equip with two different types of pin cap. Please refer below instruction to remove the pin cap. Step 2: Pull the socket locking lever out from the socket and then raise the lever up. Chapter 2: Hardware Installation | 7... - Page 9 Step 3: Remove the Pin Cap. Step 4: Hold processor with your thumb and index fingers, oriented as shown. Align the notches with the socket. Lower the processor straight down without tilting or sliding the processor in the socket. Step 5: Hold the CPU down firmly, and then lower the lever to locked position to complete the installation.
-
Page 10: Install A Heatsink
TB360-BTC D+ 2.2 Install a Heatsink Step 1: Place the CPU fan assembly on top of the installed CPU and make sure that the four fasteners match the motherboard holes. Orient the assembly and make the fan cable is closest to the CPU fan connector. -
Page 11: Connect Cooling Fans
2.3 Connect Cooling Fans These fan headers support cooling-fans built in the computer. The fan cable and connector may be different according to the fan manufacturer. CPU_FAN1: CPU Fan Header Pin Assignment Ground +12V FAN1_Tach FAN1_Ctl SYS_FAN1/ SYS_FAN2/ SYS_FAN3/ SYS_FAN4/ SYS_FAN5: System Fan Header Pin Assignment Ground +12V... -
Page 12: Install System Memory
TB360-BTC D+ SYS_FAN6/ SYS_FAN7: System Fan Header (Without monitoring) Pin Assignment Ground +12V Fan Control Note » CPU_FAN1, SYS_FAN1/ 2/ 3/ 4/ 5/ 6/ 7 support 4-pin and 3-pin head connectors. When connecting with wires onto connectors, please note that the red wire is the positive and should be connected to pin#2, and the black wire is Ground and should be connected to pin#1(GND). 2.4 Install System Memory DDR4 Modules Chapter 2: Hardware Installation | 11... - Page 13 Step 1: Align a DIMM on the slot such that the notch on the DIMM matches the break on the Slot. Step 2: Insert the DIMM firmly into the slot until the retaining chip snap back in place and the DIMM is properly seated.
-
Page 14: Expansion Slots
TB360-BTC D+ 2.5 Expansion Slots PEX16_1: PCI-Express Gen3 x16 Slot (x16) • PCI-Express 3.0 compliant. • Theoretical maximum bandwidth using two slots simultaneously is 16GB/s for each slot, a total of 32GB/s. PEX16_2/PEX16_3/PEX16_4/PEX16_5/PEX16_6/PEX16_7/PEX16_8: PCI-Express Gen2 x16 Slots (x1) • PCI-Express 2.0 compliant. • ... -
Page 15: Jumper & Switch Setting
Install an Expansion Card You can install your expansion card by following steps: • Read the related expansion card’s instruction document before install the expansion card into the computer. • Remove your computer’s chassis cover, screws and slot bracket from the computer. • ... -
Page 16: Headers & Connectors
TB360-BTC D+ 2.7 Headers & Connectors ATXPWR1/ 2/ 3/ 4/ 5/ 6/ 7/ 8: DC-IN Power Source Connector (12V-In from PSU for motherboard) The connector provides +12V to the DC-IN power circuit. Assignment +12V_Input +12V_Input +12V_Input Ground Ground Ground Note » Before you power on the system, please make sure that ATXPWR1~8 connectors have been plugged-in. - Page 17 Note » If the graphics card needs external power supply, connect the cable through PEX16_OUT1 ~ 8 connector. » Insufficient power supplied to the system may result in instability or the peripherals not functioning properly. Use of a PSU with a higher power output is recommended when configuring a system with more power-consuming devices. SATA_POWER: SATA Power Source Connector This connector allows you SATA power connector to the SATA hard drive. Assignment Ground Ground JPANEL1: Front Panel Header This connector includes Power-on, Reset, HDD LED and Power LED connections. It allows user to connect the PC case’s front panel switch functions.
- Page 18 TB360-BTC D+ JPANEL2: Front Panel Header This connector allows user to connect the PC case’s front panel switch functions. Pin Assignment Function Power LED (+) Power Power LED (-) Power Button Power-On Button Ground SATA1: Serial ATA Connectors These connectors connect to SATA hard disk drives via SATA cables. Assignment Ground Ground...
- Page 19 F_USB1: Header for USB 2.0 Ports at Front Panel This header allows user to add additional USB ports on the PC front panel, and also can be connected with a wide range of external peripherals. Assignment +5V (fused) +5V (fused) USB- USB- USB+...
-
Page 20: Chapter 3: Uefi Bios & Software
The BIOS can be updated using either of the following utilities: • BIOSTAR BIOS-FLASHER: Using this utility, the BIOS can be updated from a file on a hard disk, a USB drive (a flash drive or a USB hard drive), or a CD-ROM. - Page 21 6. Select the proper BIOS file, and a message asking if you are sure to flash the BIOS file. Click “Yes” to start updating BIOS. 7. A dialog pops out after BIOS flash is completed, asking you to restart the system. Press the <Y> key to restart system.
- Page 22 Then, the BIOS Update is completed. BIOS Update Utility (through a BIOS file) 1. Installing BIOS Update Utility from the DVD Driver. 2. Download the proper BIOS from http://www.biostar.com.tw/ 3. Launch BIOS Update Utility and click the “Update BIOS” button on the main screen.
- Page 23 5. Choose the location for your BIOS file in the system. Please select the proper BIOS file, and then click on “Open”. It will take several minutes, please be patient. 6. After the BIOS Update process is finished, click on “OK” to reboot the system. 7.
-
Page 24: Software
TB360-BTC D+ 3.3 Software Installing Software Insert the Setup DVD to the optical drive. The driver installation program would appear if the Auto-run function has been enabled. Select Software Installation, and then click on the respective software title. Follow the on-screen instructions to complete the installation. Launching Software After the installation process is completed, you will see the software icon showing on the desktop. - Page 25 eHot-Line eHot-Line is a convenient utility that helps you to contact with our Tech-Support system. This utility will collect the system information which is useful for analyzing the problem you may have encountered, and then send these information to our tech-support department to help you fix the problem.
- Page 26 Open the saved .txt file, you will see your system information including motherboard/BIOS/CPU/ video/device/OS information. This information is also concluded in the sent mail. Note » Before you use this utility, please set Outlook Express as your default e-mail client application program. » We will not share customer’s data with any other third parties, so please feel free to provide your system information while using eHot-Line service. » If you are not using Outlook Express as your default e-mail client application, you may need to save the system information to a .txt file and send the file to our tech support with other e-mail application. Go to the following website http://www.biostar.com.tw/app/en/about/contact.php for getting our contact information. Chapter 3: UEFI BIOS & Software | 25...
-
Page 27: Chapter 4: Useful Help
Chapter 4: Useful help 4.1 Driver Installation After you installed your operating system, please insert the Fully Setup Driver DVD into your optical drive and install the driver for better system performance. You will see the following window after you insert the DVD The setup guide will auto detect your motherboard and operating system. -
Page 28: Ami Bios Beep Code
TB360-BTC D+ 4.2 AMI BIOS Beep Code Boot Block Beep Codes Number of Beeps Description Continuing Memory sizing error or Memory module not found POST BIOS Beep Codes Number of Beeps Description Success booting. Display memory error (system video adapter) 4.3 AMI BIOS post code Code Description PEI Core is started... - Page 29 Code Description South Bridge DXE initialization is started South Bridge DXE SMM initialization is started South Bridge devices initialization South Bridge DXE Initialization (South Bridge module specific) ACPI module initialization Boot Device Selection (BDS) phase is started Driver connecting is started PCI Bus initialization is started PCI Bus Hot Plug Controller Initialization PCI Bus Enumeration...
-
Page 30: Troubleshooting
TB360-BTC D+ 4.4 Troubleshooting Probable Solution 1. There is no power in the system. Power LED does 1. Make sure power cable is securely plugged in. not shine; the fan of the power supply does not work 2. Replace cable. 2. -
Page 31: Appendix I: Specifications In Other Languages
1151 اﻟﻤﺄﺧﺬ واط thermal design power – اﻟﺤﺪ اﻷﻗﺼﻰ ﻟﻠﻄﺎﻗﺔ اﻟﺤﺮارﻳﺔ ﻓﻲ ﺗﺼﻤﻴﻢ اﻟﻤﻌﺎﻟﺞ ﻗﺎﻋﺪة وﺣﺪة اﻟﻤﻌﺎﻟﺠﺔ اﻟﻤﺮآﺰﻳﺔ ﻟﻘﺎﺋﻤﺔ دﻋﻢ اﻟﻤﻌﺎﻟﺞ www.biostar.com.tw ﻳﺮﺟﻰ اﻟﺮﺟﻮع إﻟﻰ اﻟﻤﻮﻗﻊ INTEL® B360 ﻣﺠﻤﻮﻋﺔ اﻟﺸﺮاﺋﺢ 1866/2133/2400/2666 DDR4 ﻳﺪﻋﻢ ﻗﻨﺎة واﺣﺪة ﺟﻴﺠﺎﺑﺎﻳﺖ ذاآﺮة ، ﺗﺘﺤﻤﻞ آﺤﺪ أﻗﺼﻰ... -
Page 32: German
2x Header für Frontpanel 1x Header für klares CMOS Formfaktor 485 mm x 235mm Windows 10(64bit) OS-Unterstützung * Biostar reserves the right to add or remove support for any OS with or without notice. APPENDIX I: Specifications in Other Languages | 31... -
Page 33: Russian
2 контакт передней панели 1 контакт микросхемы Clear CMOS Конструктив 485мм x 235мм Windows 10(64bit) Поддержка ОС * Biostar оставляет за собой право добавлять или удалять поддержку любой ОС, с уведомлением или без. 32 | APPENDIX I: Specifications in Other Languages... -
Page 34: Spanish
Distribuidor CMOS Directo x1 Factor de Forma 485mm x 235mm Windows 10(64bit) Soporte OS * Biostar reserva su derecho de añadir o retirar el soporte para cada OS con o sin notificación. APPENDIX I: Specifications in Other Languages | 33... -
Page 35: Thai
สนั บ สนุ น OS * Biostar ขอสงวนสิ ท ธิ ์ ใ นก�รเพิ ่ ม หรื อ ถอดก�รสนั บ สนุ น สำ � หรั บ ระบบปฏิ บ ั ต ิ ก �ร OS ต่ � งๆ โดยไม่ ต ้ อ งแจ้ ง ให้ ท ร�บล่ ว งหน้ �... - Page 36 Ovaj dokument je originalno proizveden i objavljen od strane proizvođača, brenda Biostar, i preuzet je sa njihove zvanične stranice. S obzirom na ovu činjenicu, Tehnoteka ističe da ne preuzima odgovornost za tačnost, celovitost ili pouzdanost informacija, podataka, mišljenja, saveta ili izjava sadržanih u ovom dokumentu.
