TB85/TB85-BTC Setup Manual
FCC Information and Copyright
This equipment has been tested and found to comply with the limits of a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. There is no guarantee that
interference will not occur in a particular installation.
The vendor makes no representations or warranties with respect to the contents
here and specially disclaims any implied warranties of merchantability or fitness
for any purpose. Further the vendor reserves the right to revise this publication
and to make changes to the contents here without obligation to notify any party
beforehand.
Duplication of this publication, in part or in whole, is not allowed without first
obtaining the vendor's approval in writing.
The content of this user's manual is subject to be changed without notice and we
will not be responsible for any mistakes found in this user's manual. All the brand
and product names are trademarks of their respective companies.
Dichiarazione di conformità
sintetica
Ai sensi dell'art. 2 comma 3 del D.M.
275 del 30/10/2002
Si dichiara che questo prodotto è
conforme alle normative vigenti e
soddisfa i requisiti essenziali richiesti
dalle direttive
2004/108/CE, 2006/95/CE e
1999/05/CE
quando ad esso applicabili
Short Declaration of conformity
We declare this product is complying
with the laws in force and meeting all
the essential requirements as specified
by the directives
2004/108/CE, 2006/95/CE and
1999/05/CE
whenever these laws may be applied

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TB85-BTC and is the answer not in the manual?

Questions and answers

Summary of Contents for Biostar TB85-BTC

  • Page 1 TB85/TB85-BTC Setup Manual FCC Information and Copyright This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 2: Table Of Contents

    Table of Contents Chapter 1: Introduction ................. 1 Before You Start ................. 1 Package Checklist ..............1 Motherboard Specifications ............2 Rear Panel Connectors ............. 3 Motherboard Layout ..............4 Chapter 2: Hardware Installation ............5 Install Central Processing Unit (CPU) ........5 Install a Heatsink ...............
  • Page 3: Chapter 1: Introduction

    TB85/TB85-BTC CHAPTER 1: INTRODUCTION 1.1 Before You Start Thank you for choosing our product. Before you start installing the motherboard, please make sure you follow the instructions below:  Prepare a dry and stable working environment with sufficient lighting.  Always disconnect the computer from power outlet before operation.
  • Page 4: Motherboard Specifications

    1x S/PDIF out Connector 1x Consumer IR Header Form Factor ATX Form Factor, 295 mm x 210 mm Windows 7/ 8/ 8.1 OS Support Biostar reserves the right to add or remove support for any OS with or without notice.
  • Page 5: Rear Panel Connectors

    TB85/TB85-BTC 1.4 Rear Panel Connectors Note1: DVI-D & VGA ports only work with an Intel® integrated Graphics Processor. Note2: Maximum resolution: DVI: 1920 x 1200 @60Hz VGA: 1920 x 1200 @60Hz Note3: To configure 7.1-channel audio, you have to use a chassis with HD front panel audio module and enable the multi-channel audio feature through O.S.
  • Page 6: Motherboard Layout

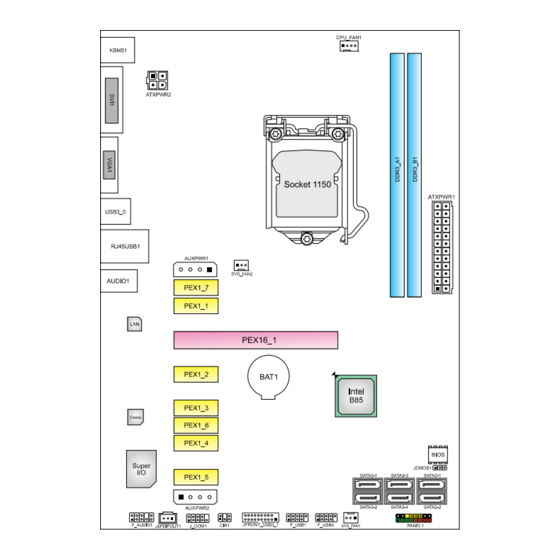

    Motherboard Manual 1.5 Motherboard Layout Note1: ■ represents the 1 pin. Note2: PEX1_6 & PEX1_7 are only for TB85-BTC.
