Delcam Audio MR. FOX MK2 User Manual

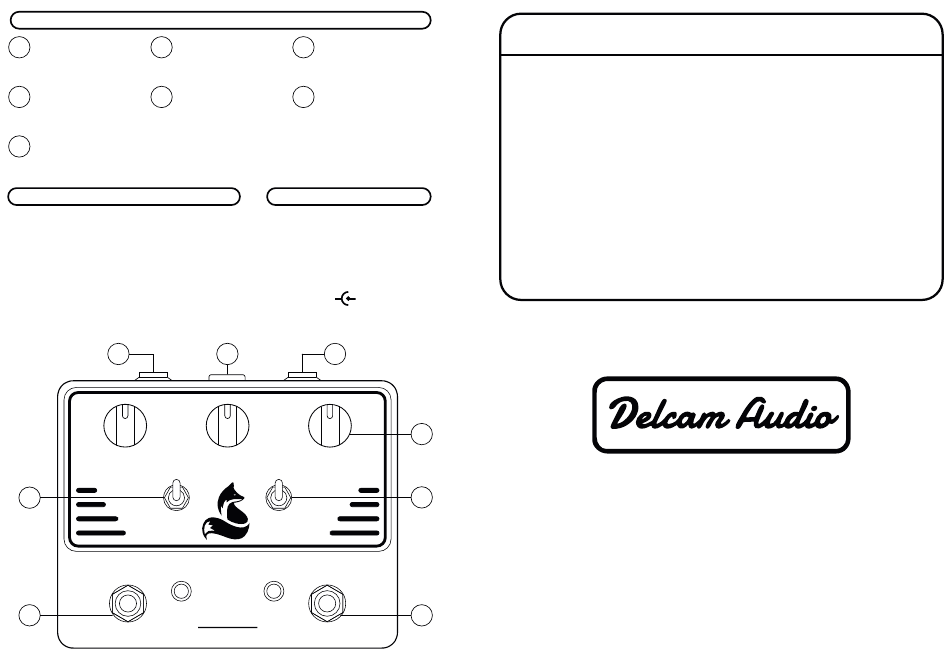

FEATURES & CONTROLS
1 2
CONTROLS FAT
Controls the amount of
Sustain, Volume and
bass and deepnees.
Tone. Easy.
4 5
INPUT OUTPUT
Input Jack from Guitar Output Jack to Amp or
or other effects. other effects.
7
FOOTSWITCH A/B
Turn ON and OFF the selected part of the pedal. FUZZ must be ON for the OCTAVE to work.
SPECIFICATIONS
Input Impedance : 20k Ohm
Output Impedance : 50k Ohm
Switch : TRUE BYPASS ON/OFF
Power Suply : DC 9V (Center Negative)
Power Consumption : 10mA Max. / 9VDC
Dimensions : 120(W)x 95(D)x 53(H) mm
Weight : 370g
Accessory : Ruber Feet, Manual
5
OUT
SUSTAIN
3
CLIP
I'm Not a Web Browser but the Bringer of Chaos
7
OCTAVE
3
CLIP
Controls the saturation
range. More/None/Less
6
DC INPUT
External power suply.
Center Negative. 9V DC
POWER
Always use an External Regulated 9V
DC Power Supply, with the center
pole Negative and the outside barrel
Positive. Use a quality and Low Noise
power supply for best tonal results.
9VDC
+ -
6 4
9V IN
TONE
VOLUME
FAT
MR. FOX
MK2
FUZZ
Stop The Use In Case Of a Problem
·
Stop using the equipment and unplug immediately if you notice smoke and/or a strange odor emanating from it.
Beware Of Heat Build-up
·
Never cover AC adaptor with cloth or other objects.
Use Specified AC adaptor Only
·
Be sure to use an AC adpator that complies with the Power Specifications and polarity.
Unplugging AC Adaptor
·
Never try to unplug AC adaptor while your hands are wet.
·
When unplugging AC adaptor from the power source, be sure to grasp the adaptor. Never pull on the cord.
Water, Humidity, Dust and High Temp.
·
Never leave or use the equipment in areas subject to water, high humidity, dust and high temperature.
Leaving the Equipment Unattended
·
Whenever leaving the equipment unattended for long periods, be sure to unplug AC adaptor from the power source.
1
2
7
WARNING
MR. FOX MK2
User's Guide
Handmade In Spain
