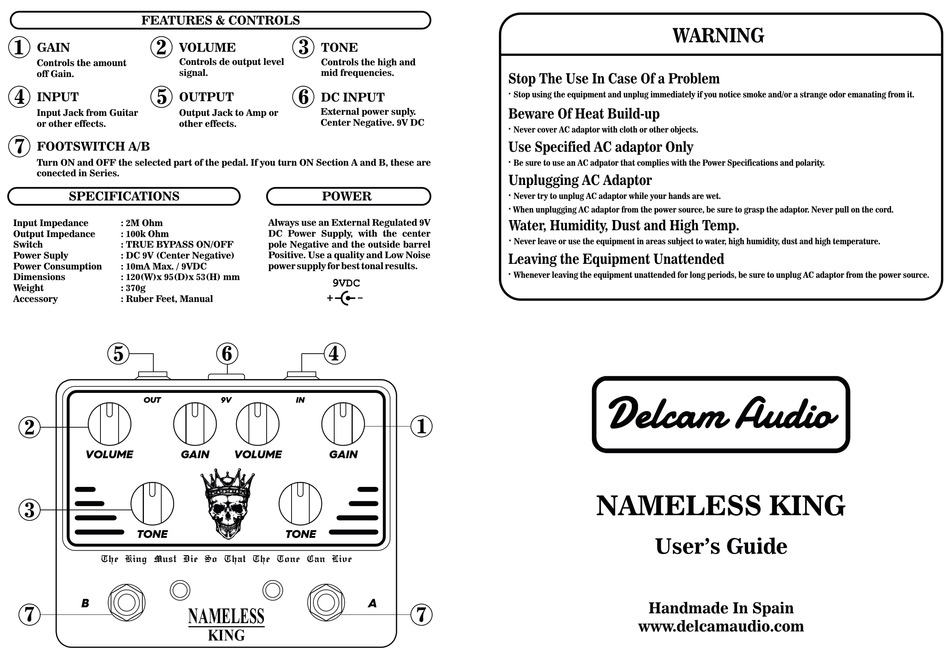

Delcam Audio NAMELESS KING User Manual

FEATURES & CONTROLS
1 2
GAIN VOLUME
Controls de output level
Controls the amount
signal.
off Gain.
4 5
INPUT OUTPUT
Input Jack from Guitar Output Jack to Amp or
or other effects. other effects.
7
FOOTSWITCH A/B
Turn ON and OFF the selected part of the pedal. If you turn ON Section A and B, these are
conected in Series.
SPECIFICATIONS
Input Impedance : 2M Ohm
Output Impedance : 100k Ohm
Switch : TRUE BYPASS ON/OFF
Power Suply : DC 9V (Center Negative)
Power Consumption : 10mA Max. / 9VDC
Dimensions : 120(W)x 95(D)x 53(H) mm
Weight : 370g
Accessory : Ruber Feet, Manual
5
OUT
2
VOLUME GAIN
3
TONE
The King Must Die So That The Tone Can Live
B
7
NAMELESS
3
TONE
Controls the high and
mid frequencies.
6
DC INPUT
External power suply.
Center Negative. 9V DC
POWER
Always use an External Regulated 9V
DC Power Supply, with the center
pole Negative and the outside barrel
Positive. Use a quality and Low Noise
power supply for best tonal results.
9VDC
+ -
6 4
9V IN
VOLUME GAIN
a
TONE
A
KING
Stop The Use In Case Of a Problem
·
Stop using the equipment and unplug immediately if you notice smoke and/or a strange odor emanating from it.
Beware Of Heat Build-up
·
Never cover AC adaptor with cloth or other objects.
Use Specified AC adaptor Only
·
Be sure to use an AC adpator that complies with the Power Specifications and polarity.
Unplugging AC Adaptor
·
Never try to unplug AC adaptor while your hands are wet.
·
When unplugging AC adaptor from the power source, be sure to grasp the adaptor. Never pull on the cord.
Water, Humidity, Dust and High Temp.
·
Never leave or use the equipment in areas subject to water, high humidity, dust and high temperature.
Leaving the Equipment Unattended
·
Whenever leaving the equipment unattended for long periods, be sure to unplug AC adaptor from the power source.
1
7
WARNING
NAMELESS KING
User's Guide
Handmade In Spain
