- Page 1 JuiceBox Next Gen Time Saver Install Guide ENGLISH...
- Page 2 REV. 1 Table of contents JuiceBox Next Gen Package Contents Installation Prerequisites Overview Location Wiring And Circuit Requirements Installation...

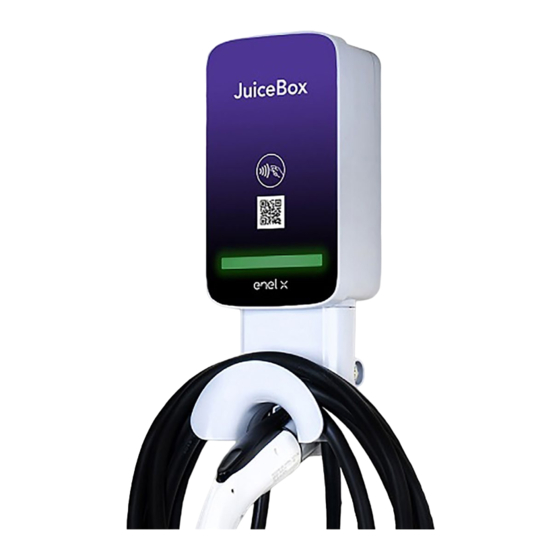

- Page 3 REV. 1 JuiceBox Next Gen Next Generation JuiceBox 32A, 40A, 48A or 80A Wi-Fi enabled Smart Level 2 EVSE with 25-foot cable: > LED indication for power, connectivity, charging status > Durable, water and fire-resistant metal case NOTE: The product information in this document is verified to be accurate and complete at the time of its publication.
- Page 4 REV. 1 Package Contents > JuiceBox NOTE: In some markets, JuiceBox arrives secured to a cable holder that includes keys. > Wall bracket > 2 wall bracket screws (#10 self-tapping Phillips head wood screws) > 2 screws to hang JuiceBox onto wall bracket (#10-32 Phillips head machine screws) >...
- Page 5 REV. 1 CAUTION: Do NOT drill any additional holes into the JuiceBox enclosure as it can cause damage to the PCB and/or electronics inside. Location When selecting a location to install the hardwire connection or outlet, keep in mind that JuiceBox should be positioned: >...
- Page 6 REV. 1 Installation Fully read and understand the directions before installation. Refer to important safety information at the end of this document. This section describes installing the JuiceBox Pro onto a wall mount. If installing onto a JuiceStand, refer to the JuiceStand Manual.
- Page 7 REV. 1 Version with cable holder Version without cable holder 4 Hang the JuiceBox onto the wall bracket. NOTE: : If the JuiceBox does not hang securely, adjust the screws that were installed in step 3. The 48 and 80 amp are hardwire only and do not have a plug as shown.
- Page 8 REV. 1 WARNING: It is the installers responsibility to ensure that the JuiceBox is wired in accordance with the local electrical code. NOTE: : The hardwire versions of the JuiceBox are shipped with appropriate wires that meet the National Electric Code (NEC) NFPA 70 and require a nearby junction box connection.
