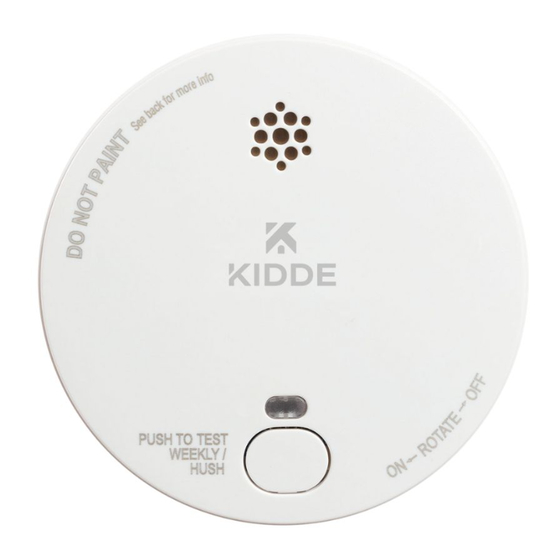

- Page 1 Photoelectric Smoke Alarm with Hush User Guide Model: 2030-DSR Smoke Alarm Hush Control Small Structure Design SMOKE ALARM EN 14604:2005 1008 102.0012 EN14604:2005/AC:2008 P/N: 2030-7201-00...
- Page 2 Thank You for Purchasing this Kidde Alarm Teach children how to respond to the alarm and that they should never play with the unit. This alarm was or boat. Note: subsequent owner. IMPORTANT: ENVIRONMENTAL PROTECTION Waste electrical products or equivalent...
-
Page 3: Table Of Contents
CONTENTS OF THIS USER GUIDE ........................1. Smoke Alarm: What To Do When the Alarm Sounds ........................2. Introduction, Product Features and Specifications ............................3. Other Alarm Visual and Audible Indicators ....................................4. Troubleshooting Guide .................................. 5. Limitations of Smoke Alarms .......................... -
Page 4: Smoke Alarm: What To Do When The Alarm Sounds
1. Smoke Alarm: What To Do When the Alarm Sounds Smoke alarm pattern is three long beeps, a 1.5 second pause, and three long beeps repeating. The red LED blinks in time with alarm pattern. Leave immediately by your escape plan. Every second counts, so don’t waste time getting dressed or picking up valuables. -
Page 5: Introduction, Product Features And Specifications
Introduction Smoke Sensor: Photoelectric Smoke Alarm Hush Control... -
Page 6: Other Alarm Visual And Audible Indicators
3. Other Alarm Visual and Audible Indicators Operational Mode Visual Indications Audible Indications Action/Note: Normal (standby) Test (button press when no alarm condition is present) beep pattern. Smoke Alarm Memory None. (unit has experienced a smoke alarm event within the last hour) Smoke Alarm Hush Mode alarm pattern stops known alarm condition, such as smoke... -
Page 7: Troubleshooting Guide
4. Troubleshooting Guide Trouble Condition Visual Indications Audible Indications Action: Low Battery 30 sec. End of Unit Life 2 chirps every 30 sec 2 times every 30 sec. cannot be silenced. possible. Memory Fault Chirp every 30 sec. * Contact Product Support. times every 30 sec. -
Page 8: Limitations Of Smoke Alarms
5. Limitations of Smoke Alarms Warning: please read carefully and thoroughly grows so rapidly that an occupant’s egress is blocked even with properly located alarms, or when victims physically or mentally impaired such that they cannot escape even when warned early enough that escape should be possible. -
Page 9: Recommended Locations For Smoke Alarms
6. Recommended Locations for Smoke Alarms NOTE: staircase and every room, other than a toilet, bathroom or shower room. Locate an alarm in every bedroom. Locate an alarm in every room where someone sleeps with the door closed. The closed door may prevent Locate one alarm in each principal habitable room. - Page 10 (Figure 6-A) (Figure 6-A) (Figure 6-C) (Figure 6-D)
- Page 11 300 mm Garage Bathroom Bedroom CEILING Bedroom Dining Kitchen 150 mm 300 mm NEVER HERE Bedroom ACCEPTABLE HERE Living Room ACCEPTABLE HERE Not within 1 m of SINGLE FLOOR PLAN appliances (see Locations to Avoid section). Heat Alarm Loft Conversion (Do not fit combo CO or Smoke Alarms in Garage)
- Page 12 MULTI FLOOR PLAN Figure 6-A Figure 6-B 600mm ANYWHERE ALONG THIS BOLD SURFACE 300 mm 600 mm Figure 6-C Figure 6-D...
-
Page 13: Locations To Avoid
7. Locations To Avoid Do not install alarms adjacent to, or directly above, heaters or air-conditioning vents. -
Page 14: Installation Instructions
8. Installation Instructions Alignment Marks When mounting When mounting on in a hallway, the the ceiling, please “A” line should align both be parallel with line of the the hallway. side. Figure 8-A Figure 8-B Figure 6-B This apparatus should be installed by a competent individual. - Page 15 CAUTION: This unit is sealed. The cover is not removable. ceiling as shown in Figure 8-A. CAUTION! If the battery compartment is empty, the unit will not attach to the mounting bracket. Figure 8-B...
- Page 16 Smoke Alarm Tamper Resist Feature see Figure 8-C NOTE: To remove the alarm when the tamper resist tab is engaged, press down on the tamper resist tab see Figure 8-D Location of Post Press down on Break out the the tamper resist tab small post Tamper resist tab Location of Post...
-
Page 17: Operation And Testing
Alarm: What To Do When the Alarm Sounds. Testing: Test the alarm weekly to ensure proper operation. Smoke Alarm Memory: NOTE: If at any time your alarm fails to operate correctly (erratic or low sound, for example), contact Kidde Safety (see page 2 for contact details). -
Page 18: Hush Control Feature
10. Hush Control Feature If there is any question as to the cause of an alarm, it should be assumed that the alarm is due to an CAUTION: Before using the alarm smart hush feature. Identify the source of the smoke and be certain a safe condition exists. -
Page 19: Battery
11.Battery WARNING: Alarm will not attach to mounting bracket unless battery is installed. Removal of battery will render the unit inoperative. conditions. Low Battery Use only the following 9 volt batteries for smoke alarm replacement: NOTE: Do not use lithium batteries in this unit. NOTE: Weekly testing is required. -
Page 20: Cleaning Your Alarm
12. Cleaning Your Alarm Your Alarm Should be Cleaned at Least Once a Year damage the alarm. Never use detergent or other solvents to clean the unit. Never attempt to disassemble the unit to clean inside. This action will void your warranty. WARNING: Reinstall the Alarm as soon as possible to ensure continuous protection. -
Page 21: Good Safety Habits
13. Good Safety Habits Develop and Practice a Plan of Escape you never re-enter under any circumstance! story windows may need a rope or chain ladder. Current studies have shown smoke alarms may not awaken all sleeping individuals, and that it is the unassisted. - Page 22 Smoke Detection – Are More Alarms Desirable? additional areas include the basement, bedrooms, dining room, utility room, and hallways not protected by the operation.
-
Page 23: Service And Warranty
14. SERVICE AND WARRANTY THREE YEAR LIMITED WARRANTY power. - Page 24 © 2021 Carrier All Rights Reserved. QUESTIONS OR FOR MORE INFORMATION Manufactured By: Walter Kidde Portable Equipment Inc. 1016 Corporate Park Drive, Mebane, NC 27302, USA Telephone: 0800 917 0722 www.kiddesafetyeurope.co.uk Made in China EU Authorised Representative Carrier Fire & Security B.V.
